Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2018-09-24 07:41:58.8 |
| Date & Time (Local) | 1397/7/2 11:11:58.8 |

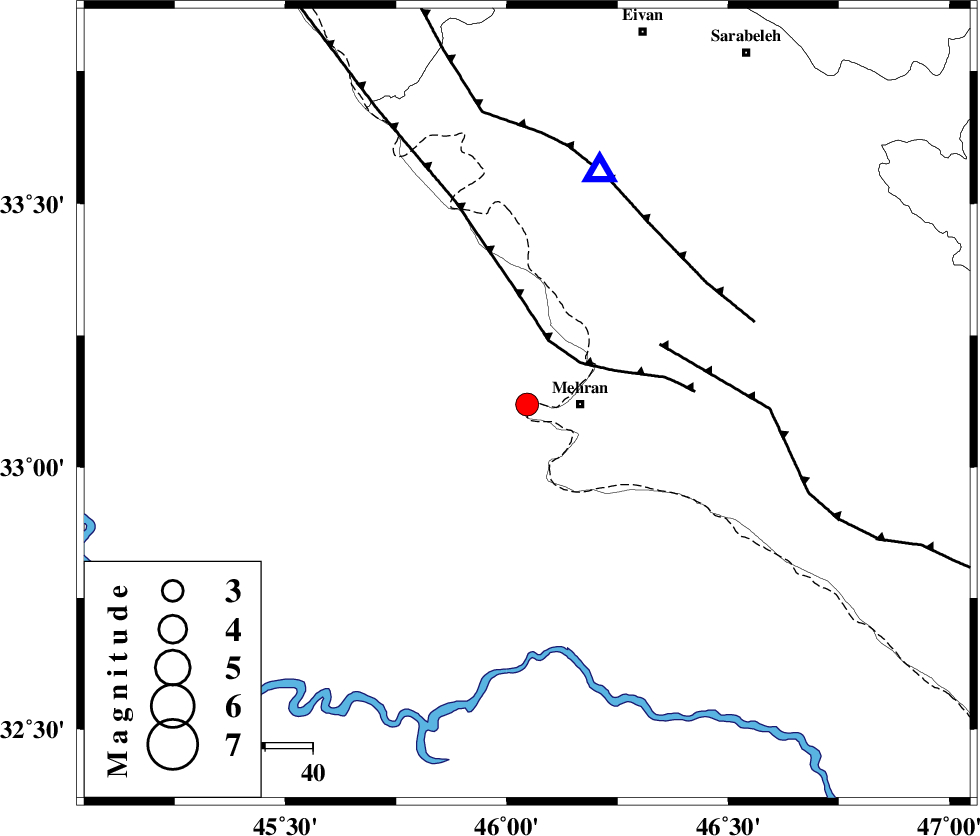

| Location | Lat:33.119 Lon: 46.046 |
| Region | Iraq, 11 km -West of Mehran |
Nearest Cities |
|
| 11 km West of Mehran, Ilam Province | |
| 41 km South West of Salehabad, Ilam Province | |
| 43 km South West of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 49 km South West of Gonbad-e pirmohammad, Ilam Province | |
| 53 km South West of Mehr, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 14 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 31 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 46 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >5.3 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 7.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 137095 | IIEES | ILBA | E | 3333.4 | 0.61 | 2018-09-24 07:42:24 | 2018-09-24 11:47:00 | n |
| 137096 | IIEES | ILBA | N | 4057.3 | 0.52 | 2018-09-24 07:42:24 | 2018-09-24 11:47:00 | n |
| 137097 | IIEES | SNGE | N | 83.3 | 0.56 | 2018-09-24 07:43:23 | 2018-09-24 11:47:00 | n |
| 137098 | IIEES | SNGE | E | 83 | 0.61 | 2018-09-24 07:43:25 | 2018-09-24 11:47:00 | n |
| 137099 | IIEES | SRSL | E | 58.3 | 0.35 | 2018-09-24 07:43:52 | 2018-09-24 11:47:00 | n |
| 137100 | IIEES | SRSL | N | 60 | 0.6 | 2018-09-24 07:43:57 | 2018-09-24 11:47:00 | n |
| 137101 | IIEES | KHMZ | N | 26.3 | 0.85 | 2018-09-24 07:44:00 | 2018-09-24 11:47:00 | n |
| 137102 | IIEES | GHVR | E | 13.1 | 0.75 | 2018-09-24 07:44:12 | 2018-09-24 11:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-09-24 07:42:08 | -0.38 | y | 58 | 15 | |||
| IIEES | SNGE | Z | Pn | E | 2018-09-24 07:42:37 | 0.25 | y | 250 | 28 | |||
| IIEES | SNGE | N | Sg | E | 2018-09-24 07:43:09 | 0.08 | y | 250 | 28 | |||
| IIEES | SRSL | Z | P | E | 2018-09-24 07:42:49 | 0.13 | y | 348 | 351 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-09-24 07:42:52 | -0.11 | y | 371 | 78 | |||
| IIEES | ASAO | Z | Pn | E | 2018-09-24 07:42:56 | -0.09 | y | 401 | 66 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-09-24 07:43:04 | -0.01 | y | 462 | 31 | |||
| IIEES | GHVR | Z | Pn | E | 2018-09-24 07:43:09 | 0.16 | y | 505 | 71 | |||
