Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2018-10-02 04:43:20.0 |
| Date & Time (Local) | 1397/7/10 08:13:20.0 |
| Location | Lat:32.051 Lon: 50.661 |
| Region | Chaharmahal Bakhtiari Province, 7 km of Ardel |
Nearest Cities |
|
| 7 km North of Ardel, Chaharmahal Bakhtiari Province | |
| 11 km of Jonqan, Chaharmahal Bakhtiari Province | |
| 12 km East of Rostamabad, Chaharmahal Bakhtiari Province | |
| 14 km North West of Shalamzar, Chaharmahal Bakhtiari Province | |
| 14 km North of Naghan, Chaharmahal Bakhtiari Province | |
| Depth | 15 km |
| Agency | |

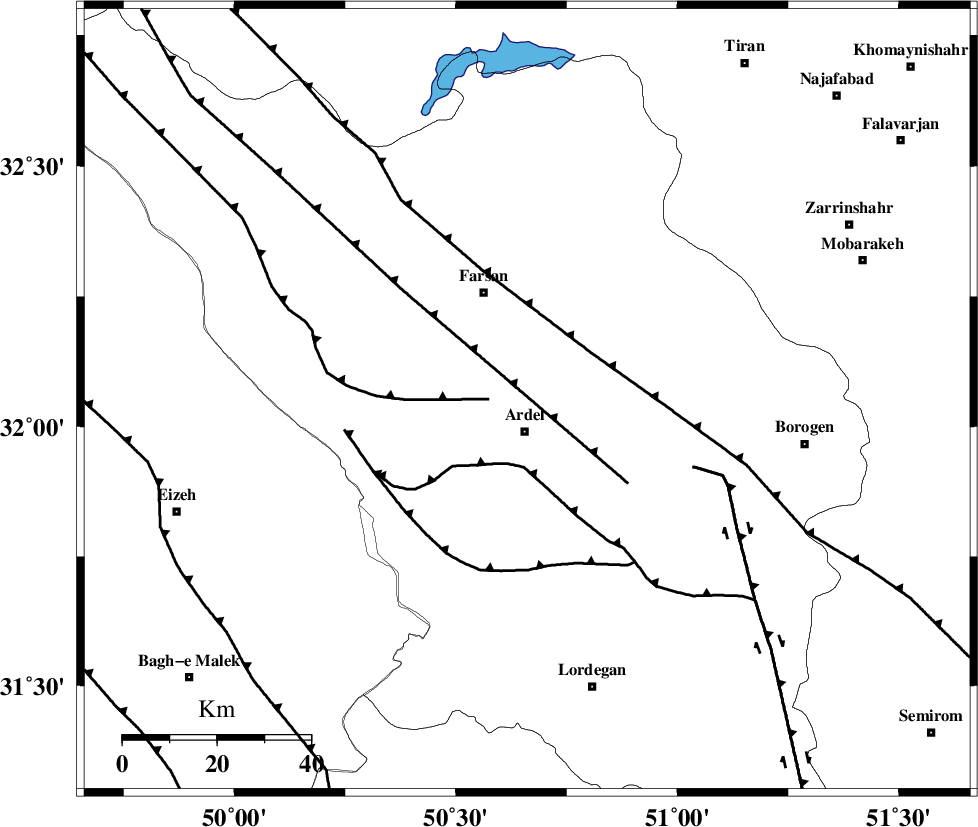

Faults within 150 km: |
|
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 8 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 14 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 17 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 16 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 137319 | IIEES | NASN | N | 354.6 | 0.53 | 2018-10-02 04:44:27 | 2018-10-02 06:01:00 | n |
| 137320 | IIEES | AHRM | N | 90.7 | 0.62 | 2018-10-02 04:45:11 | 2018-10-02 06:01:00 | n |
| 137321 | IIEES | ILBA | N | 144.2 | 0.72 | 2018-10-02 04:45:43 | 2018-10-02 06:01:00 | n |
| 137322 | IIEES | ILBA | E | 122.9 | 0.48 | 2018-10-02 04:45:50 | 2018-10-02 06:01:00 | n |
| 137323 | IIEES | GIDE | N | 29.8 | 0.5 | 2018-10-02 04:46:16 | 2018-10-02 06:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2018-10-02 04:43:52 | -0.14 | y | 198 | 341 | |||
| IIEES | NASN | Z | Pn | E | 2018-10-02 04:43:54 | -0.32 | y | 218 | 67 | |||
| IIEES | GHVR | Z | Pn | E | 2018-10-02 04:44:01 | 0.12 | y | 275 | 11 | |||
| IIEES | ASAO | Z | Pn | E | 2018-10-02 04:44:03 | 0.04 | y | 283 | 348 | |||
| IIEES | AHRM | Z | Pn | E | 2018-10-02 04:44:11 | -0.1 | y | 358 | 170 | |||
| IIEES | YZKH | Z | Pn | E | 2018-10-02 04:44:14 | 0.49 | y | 372 | 83 | |||
| IIEES | THKV | Z | Pn | E | 2018-10-02 04:44:21 | 0.58 | y | 429 | 3 | |||
| IIEES | CHTH | Z | Pn | E | 2018-10-02 04:44:21 | -0.27 | y | 430 | 6 | |||
| IIEES | ILBA | Z | Pn | E | 2018-10-02 04:44:19 | -3.82 | n | 4 | 452 | 294 | ||
| IIEES | SNGE | Z | Pn | E | 2018-10-02 04:44:24 | 0.09 | y | 457 | 319 | |||
| IIEES | GHIR | Z | Pn | E | 2018-10-02 04:44:26 | 0.27 | y | 474 | 151 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-10-02 04:44:35 | -0.34 | y | 544 | 341 | |||
| IIEES | GIDE | Z | Pn | E | 2018-10-02 04:44:35 | -0.02 | y | 545 | 353 | |||
| IIEES | KRBR | Z | Pn | E | 2018-10-02 04:44:45 | -0.38 | y | 626 | 110 | |||
| IIEES | TABS | Z | Pn | E | 2018-10-02 04:44:45 | 0 | y | 630 | 72 | |||
| IIEES | BSRN | Z | Pn | E | 2018-10-02 04:45:06 | -0.27 | y | 800 | 88 | |||
