Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2018-10-08 16:12:41.6 |
| Date & Time (Local) | 1397/7/16 19:42:41.6 |
| Location | Lat:32.113 Lon: 50.962 |
| Region | Chaharmahal Bakhtiari Province, 26 km South-East of Shahr-e kord |
Nearest Cities |
|
| 16 km North East of Shalamzar, Chaharmahal Bakhtiari Province | |
| 20 km South East of Hafshjan, Chaharmahal Bakhtiari Province | |
| 20 km West of Sefid-dasht, Chaharmahal Bakhtiari Province | |
| 22 km North of Baladaji, Chaharmahal Bakhtiari Province | |
| 25 km North West of Faradonbeh, Chaharmahal Bakhtiari Province | |
| Depth | 15 km |
| Agency | |

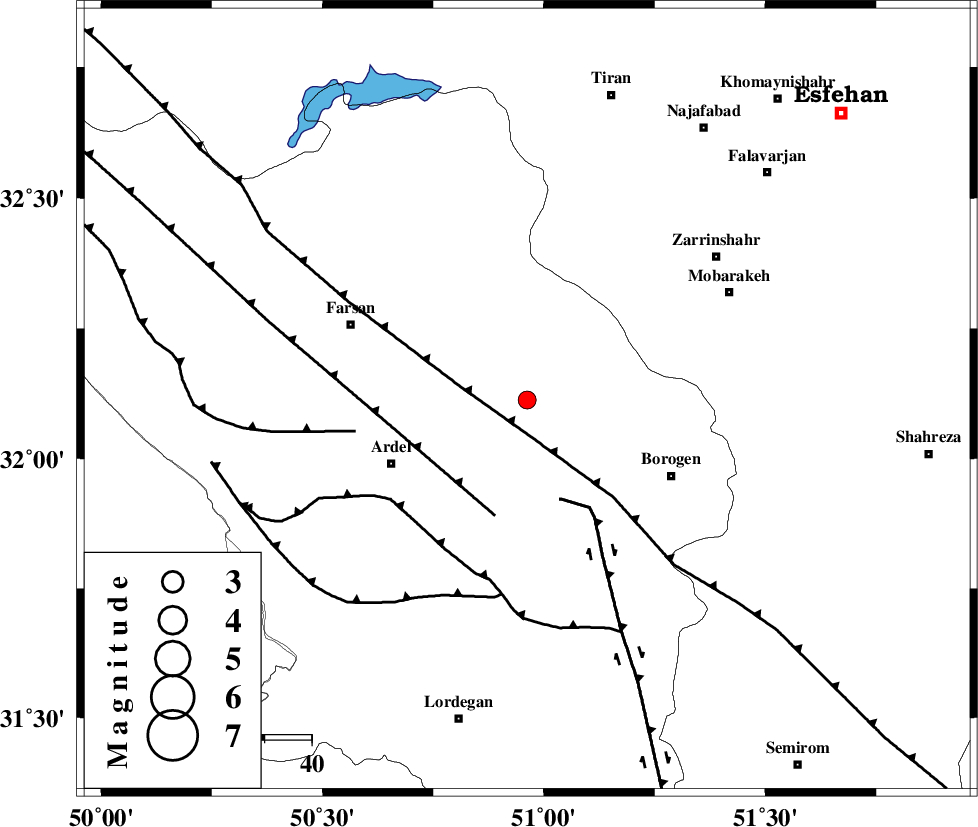

Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 7 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 22 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 26 km | |
| Number of Phases | 8 |
| RMS | 0.5 |
| Number of Stations | 8 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 137637 | IIEES | NASN | E | 34.4 | 0.45 | 2018-10-08 16:13:39 | 2018-10-09 07:16:00 | n |
| 137638 | IIEES | GHVR | E | 29.3 | 0.45 | 2018-10-08 16:14:12 | 2018-10-09 07:16:00 | n |
| 137639 | IIEES | GHVR | N | 22.6 | 0.51 | 2018-10-08 16:14:22 | 2018-10-09 07:16:00 | n |
| 137640 | IIEES | ASAO | N | 14.8 | 0.58 | 2018-10-08 16:14:17 | 2018-10-09 07:16:00 | n |
| 137641 | IIEES | YZKH | E | 8.5 | 0.5 | 2018-10-08 16:14:23 | 2018-10-09 07:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pg | E | 2018-10-08 16:13:09 | -3.67 | n | 4 | 190 | 66 | ||
| IIEES | KHMZ | Z | Pn | E | 2018-10-08 16:13:15 | 0.67 | y | 203 | 333 | |||
| IIEES | GHVR | Z | Pn | E | 2018-10-08 16:13:22 | 0.29 | y | 264 | 6 | |||
| IIEES | ASAO | Z | Pn | E | 2018-10-08 16:13:24 | -0.17 | y | 284 | 342 | |||
| IIEES | YZKH | Z | Pn | E | 2018-10-08 16:13:31 | -0.35 | y | 343 | 84 | |||
| IIEES | AHRM | Z | Pn | E | 2018-10-08 16:13:34 | 0.26 | y | 361 | 175 | |||
| IIEES | SNGE | Z | Pn | E | 2018-10-08 16:13:47 | -0.88 | y | 471 | 316 | |||
| IIEES | ILBA | Z | Pn | E | 2018-10-08 16:13:48 | -0.12 | y | 475 | 292 | |||
