Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2018-11-15 19:45:03.8 |
| Date & Time (Local) | 1397/8/24 23:15:03.8 |

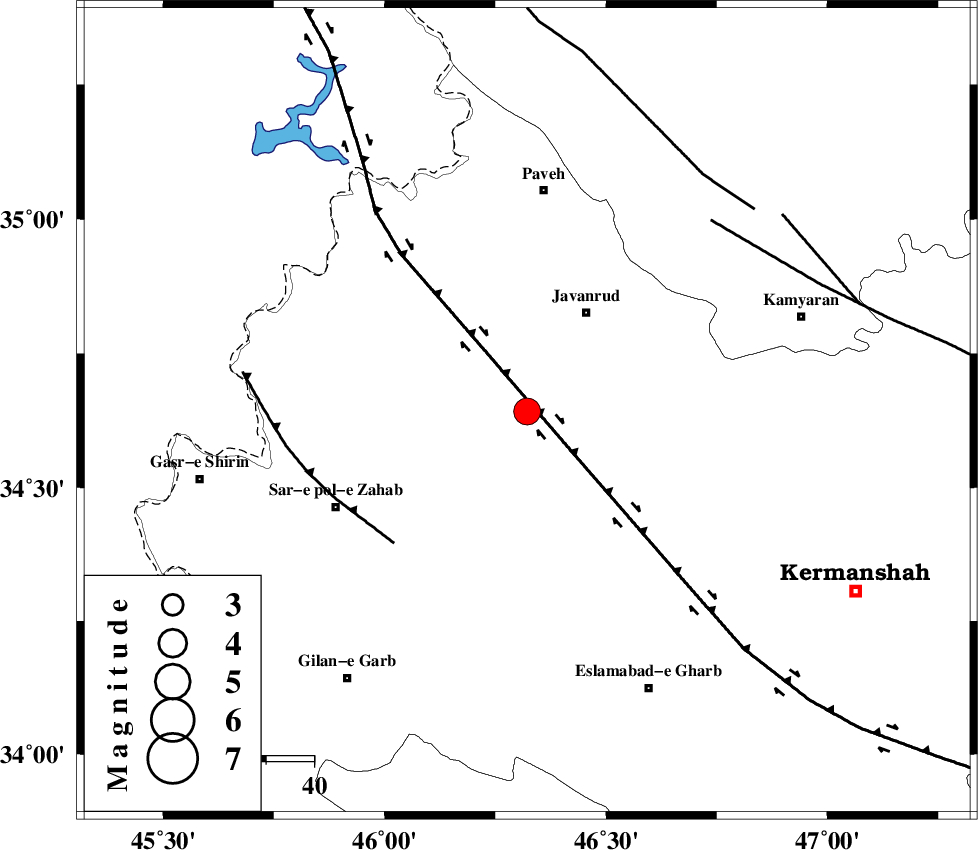

| Location | Lat:34.642 Lon: 46.322 |
| Region | Kermanshah Province, 24 km South-West of Javanrud |
Nearest Cities |
|
| 5 km of Mirabad, Kermanshah Province | |
| 14 km West of Dolatabad, Kermanshah Province | |
| 16 km North of Zavleh olia, Kermanshah Province | |
| 17 km East of Qolqoleh, Kermanshah Province | |
| 18 km South West of Sarukhan, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 10 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 39 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 55 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 13 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 138441 | IIEES | SNGE | E | 1822.2 | 0.45 | 2018-11-15 19:45:38 | 2018-11-18 04:44:00 | n |
| 138442 | IIEES | SNGE | N | 1866.6 | 0.41 | 2018-11-15 19:45:39 | 2018-11-18 04:44:00 | n |
| 138443 | IIEES | ILBA | N | 1949.6 | 0.36 | 2018-11-15 19:45:43 | 2018-11-18 04:44:00 | n |
| 138444 | IIEES | ILBA | E | 1691.2 | 0.36 | 2018-11-15 19:45:43 | 2018-11-18 04:44:00 | n |
| 138445 | IIEES | SRSL | E | 1033.3 | 0.42 | 2018-11-15 19:46:03 | 2018-11-18 04:44:00 | n |
| 138446 | IIEES | SRSL | N | 1775.5 | 0.38 | 2018-11-15 19:46:04 | 2018-11-18 04:44:00 | n |
| 138447 | IIEES | GHVR | N | 101.3 | 0.69 | 2018-11-15 19:47:29 | 2018-11-18 04:44:00 | n |
| 138448 | IIEES | GHVR | E | 82.4 | 0.63 | 2018-11-15 19:47:33 | 2018-11-18 04:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-11-15 19:45:21 | -0.61 | y | 106 | 62 | |||
| IIEES | SNGE | N | Sg | E | 2018-11-15 19:45:34 | -0.54 | y | 106 | 62 | |||
| IIEES | ILBA | Z | Pg | E | 2018-11-15 19:45:22 | -0.27 | y | 113 | 185 | |||
| IIEES | ILBA | N | Sg | E | 2018-11-15 19:45:36 | -0.16 | y | 113 | 185 | |||
| IIEES | SRSL | Z | Pg | E | 2018-11-15 19:45:34 | -0.78 | y | 192 | 335 | |||
| IIEES | SRSL | N | Sg | E | 2018-11-15 19:45:58 | -0.14 | y | 192 | 335 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-11-15 19:45:50 | 0.55 | y | 311 | 43 | |||
| IIEES | ASAO | Z | Pn | E | 2018-11-15 19:45:54 | 0.37 | y | 340 | 91 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-11-15 19:45:55 | 0.22 | y | 350 | 106 | |||
| IIEES | THKV | Z | Pn | E | 2018-11-15 19:46:06 | 0.53 | y | 438 | 70 | |||
| IIEES | GHVR | Z | Pn | E | 2018-11-15 19:46:07 | -0.16 | y | 452 | 91 | |||
| IIEES | CHTH | Z | Pn | E | 2018-11-15 19:46:08 | 0.25 | y | 459 | 71 | |||
| IIEES | GRMI | Z | Pn | E | 2018-11-15 19:46:11 | 0.01 | y | 483 | 16 | |||
| IIEES | DAMV | Z | Pn | E | 2018-11-15 19:46:17 | 0.13 | y | 526 | 76 | |||
| IIEES | MAKU | Z | Pn | E | 2018-11-15 19:46:20 | 1.51 | y | 543 | 345 | |||
| IIEES | NASN | Z | Pn | E | 2018-11-15 19:46:30 | 0.04 | y | 635 | 107 | |||
