Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2018-11-17 15:45:06.5 |
| Date & Time (Local) | 1397/8/26 19:15:06.5 |

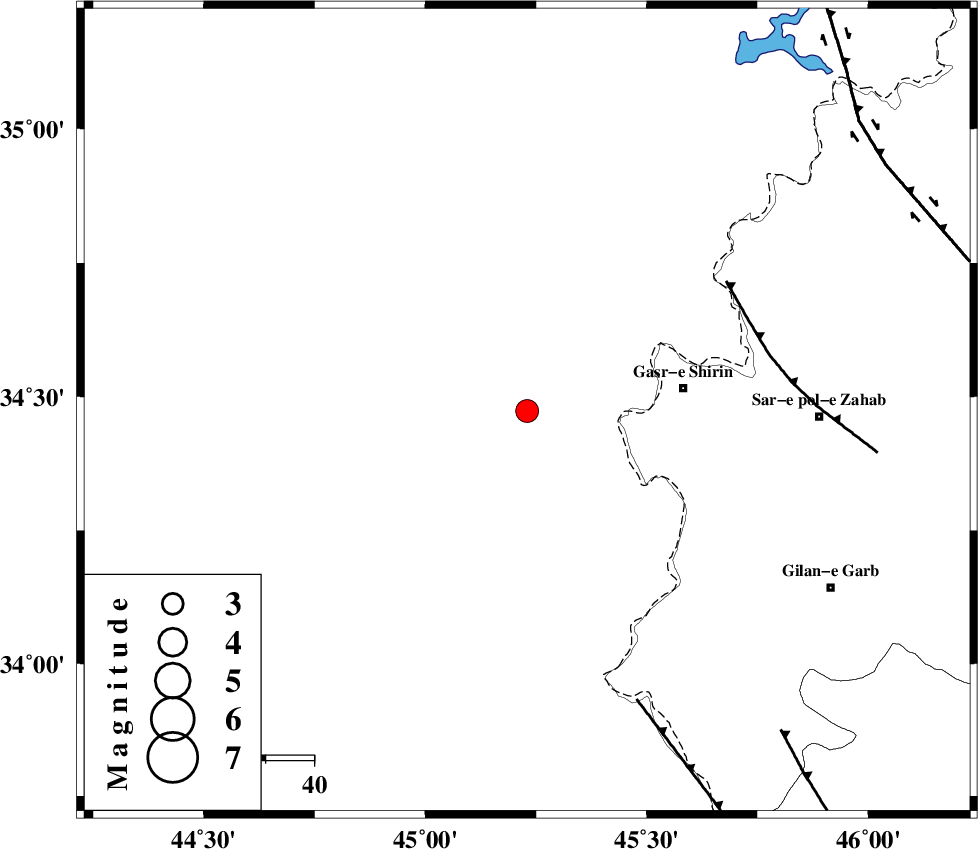

| Location | Lat:34.473 Lon: 45.23 |
| Region | Iraq, 33 km -West of Qasr-E-Shirin |
Nearest Cities |
|
| 24 km North West of Khosravi, Kermanshah Province | |
| 33 km West of Qasr-E-Shirin, Kermanshah Province | |
| 34 km North West of Seyyed sohrab, Kermanshah Province | |
| 41 km West of Aqabarar, Kermanshah Province | |
| 50 km West of Qareh belagh, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 49 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 64 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 85 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 138484 | IIEES | ILBA | N | 1061.3 | 0.36 | 2018-11-17 15:45:48 | 2018-11-18 11:40:00 | n |
| 138485 | IIEES | SRSL | N | 289.3 | 0.39 | 2018-11-17 15:46:04 | 2018-11-18 11:40:00 | n |
| 138486 | IIEES | SRSL | E | 205.4 | 0.44 | 2018-11-17 15:46:05 | 2018-11-18 11:40:00 | n |
| 138487 | IIEES | SNGE | N | 215.7 | 0.37 | 2018-11-17 15:46:07 | 2018-11-18 11:40:00 | n |
| 138488 | IIEES | SNGE | E | 215.7 | 0.75 | 2018-11-17 15:46:13 | 2018-11-18 11:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-11-17 15:45:28 | 0.1 | y | 130 | 136 | |||
| IIEES | SRSL | Z | Pg | E | 2018-11-17 15:45:38 | -0.16 | y | 194 | 5 | |||
| IIEES | SRSL | N | Sg | E | 2018-11-17 15:46:01 | 0.07 | y | 194 | 5 | |||
| IIEES | SNGE | Z | Pn | E | 2018-11-17 15:45:39 | -0.19 | y | 206 | 70 | |||
| IIEES | SNGE | N | Sg | E | 2018-11-17 15:46:05 | -0.02 | y | 206 | 70 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-11-17 15:46:03 | 0.34 | y | 397 | 51 | |||
| IIEES | ASAO | Z | Pn | E | 2018-11-17 15:46:09 | 0.23 | y | 440 | 88 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-11-17 15:46:09 | -0.34 | y | 444 | 99 | |||
