Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2018-12-04 22:52:05.0 |
| Date & Time (Local) | 1397/9/14 02:22:05.0 |

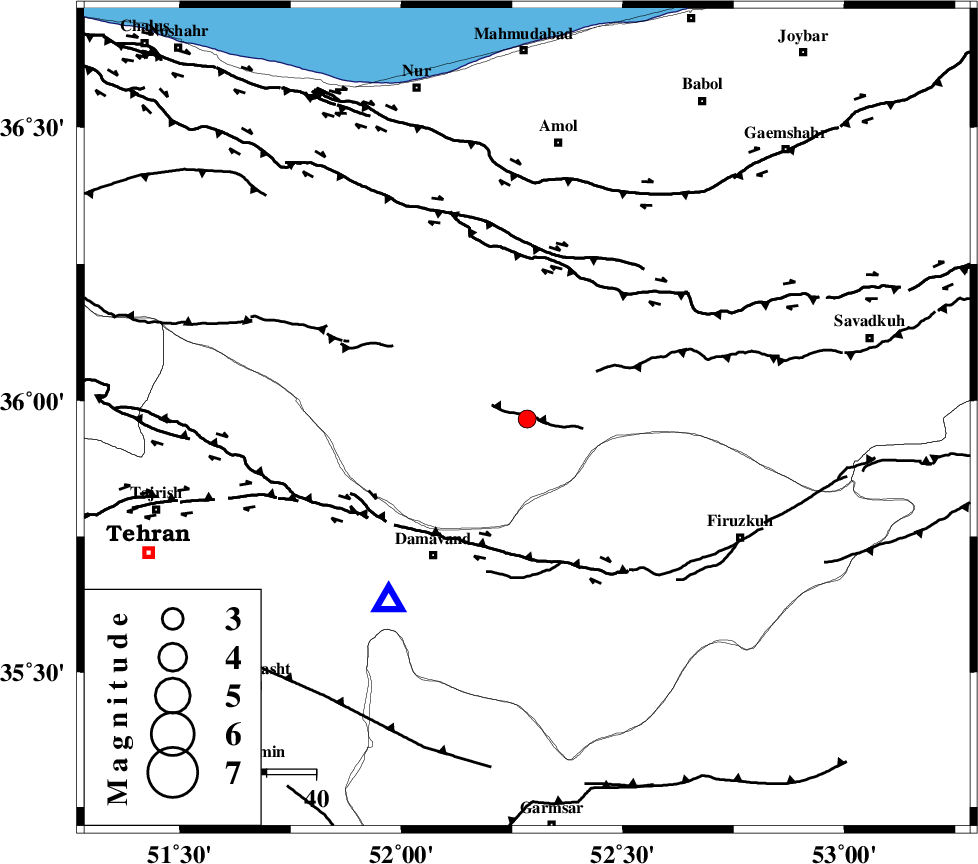

| Location | Lat:35.966 Lon: 52.284 |
| Region | Mazandaran Province, 34 km North-East of Damavand |
Nearest Cities |
|
| 2 km of Baijan, Mazandaran Province | |
| 10 km North of Gaznak, Mazandaran Province | |
| 14 km North East of Rineh, Mazandaran Province | |
| 28 km North West of Arjomand, Tehran Province | |
| 33 km South East of Pil, Mazandaran Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 28 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 33 km | |
| KANDOVAN_F (Length: 90 km) , Distance to epicenter: 44 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 5 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 139032 | IIEES | DAMV | E | 472.3 | 0.18 | 2018-12-04 22:52:20 | 2018-12-05 10:00:00 | n |
| 139033 | IIEES | DAMV | N | 515.8 | 0.14 | 2018-12-04 22:52:20 | 2018-12-05 10:00:00 | n |
| 139034 | IIEES | THKV | N | 71.5 | 0.36 | 2018-12-04 22:52:48 | 2018-12-05 10:00:00 | n |
| 139035 | IIEES | GHVR | N | 34.1 | 0.39 | 2018-12-04 22:53:04 | 2018-12-05 10:00:00 | n |
| 139036 | IIEES | GHVR | E | 37.8 | 0.21 | 2018-12-04 22:53:04 | 2018-12-05 10:00:00 | n |
| 139037 | IIEES | GIDE | N | 47.5 | 0.52 | 2018-12-04 22:53:19 | 2018-12-05 10:00:00 | n |
| 139038 | IIEES | GIDE | E | 59 | 0.58 | 2018-12-04 22:53:23 | 2018-12-05 10:00:00 | n |
| 139039 | IIEES | ASAO | N | 16.6 | 0.31 | 2018-12-04 22:53:20 | 2018-12-05 10:00:00 | n |
| 139040 | IIEES | ASAO | E | 16.8 | 0.46 | 2018-12-04 22:53:22 | 2018-12-05 10:00:00 | n |
| 139041 | IIEES | NASN | E | 9.8 | 0.44 | 2018-12-04 22:53:46 | 2018-12-05 10:00:00 | n |
| 139042 | IIEES | MRVT | N | 5.3 | 0.21 | 2018-12-04 22:53:56 | 2018-12-05 10:00:00 | n |
| 139043 | IIEES | MRVT | E | 5.9 | 0.5 | 2018-12-04 22:54:03 | 2018-12-05 10:00:00 | n |
| 139044 | IIEES | YZKH | E | 4.8 | 0.62 | 2018-12-04 22:54:21 | 2018-12-05 10:00:00 | n |
| 139045 | IIEES | YZKH | N | 5.4 | 0.69 | 2018-12-04 22:54:23 | 2018-12-05 10:00:00 | n |
| 139046 | IIEES | GRMI | E | 3.4 | 0.16 | 2018-12-04 22:54:12 | 2018-12-05 10:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2018-12-04 22:52:13 | -0.29 | y | 46.7 | 217 | |||
| IIEES | DAMV | N | Sg | E | 2018-12-04 22:52:19 | -0.2 | y | 46.7 | 217 | |||
| IIEES | CHTH | Z | Pg | E | 2018-12-04 22:52:23 | -0.12 | y | 105 | 267 | |||
| IIEES | THKV | Z | Pg | E | 2018-12-04 22:52:27 | 0.21 | y | 127 | 268 | |||
| IIEES | THKV | N | Sg | E | 2018-12-04 22:52:43 | 0.31 | y | 127 | 268 | |||
| IIEES | GHVR | Z | Pg | E | 2018-12-04 22:52:34 | -3.21 | n | 4 | 190 | 210 | ||
| IIEES | GIDE | Z | Pg | E | 2018-12-04 22:52:45 | 0.07 | y | 238 | 297 | |||
| IIEES | ASAO | Z | Pn | E | 2018-12-04 22:52:46 | 0.48 | y | 259 | 233 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-12-04 22:52:53 | -0.61 | y | 326 | 221 | |||
| IIEES | NASN | Z | Pn | E | 2018-12-04 22:52:58 | 0.49 | y | 355 | 172 | |||
| IIEES | MRVT | Z | Pn | E | 2018-12-04 22:53:01 | 0.16 | y | 388 | 60 | |||
| IIEES | YZKH | Z | Pn | E | 2018-12-04 22:53:09 | 0.02 | y | 450 | 151 | |||
| IIEES | GRMI | Z | Pn | E | 2018-12-04 22:53:14 | -0.7 | y | 501 | 310 | |||
