Event Specification
Magnitude |
4.1 |
| Date & Time (UTC) | 2019-02-11 01:20:43.9 |
| Date & Time (Local) | 1397/11/22 04:50:43.9 |

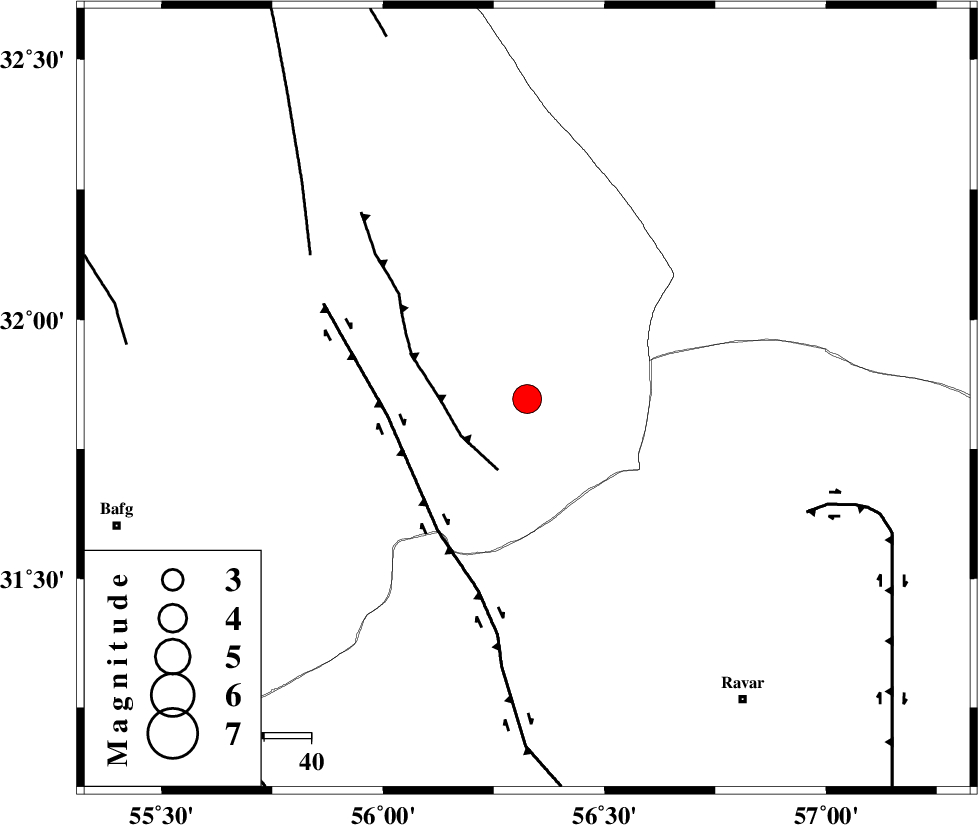

| Location | Lat:31.847 Lon: 56.325 |
| Region | Yazd Province, 79 km North-West of Ravar |
Nearest Cities |
|
| 22 km North of Asfih, Yazd Province | |
| 26 km North East of Benestan, Yazd Province | |
| 28 km East of Behabad, Yazd Province | |
| 48 km North of Kuhbanan, Kerman Province | |
| 52 km North East of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 16 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 30 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 55 km | |
| Number of Phases | 26 |
| RMS | 0.4 |
| Number of Stations | 24 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 141126 | IIEES | YZKH | E | 1580.3 | 0.44 | 2019-02-11 01:21:37 | 2019-02-12 08:34:00 | n |
| 141127 | IIEES | KRBR | N | 1081.8 | 0.29 | 2019-02-11 01:21:47 | 2019-02-12 08:34:00 | n |
| 141128 | IIEES | KRBR | E | 1051 | 0.24 | 2019-02-11 01:21:48 | 2019-02-12 08:34:00 | n |
| 141129 | IIEES | TABS | N | 1533.6 | 0.74 | 2019-02-11 01:22:00 | 2019-02-12 08:34:00 | n |
| 141130 | IIEES | GHVR | N | 93.3 | 0.34 | 2019-02-11 01:23:43 | 2019-02-12 08:34:00 | n |
| 141131 | IIEES | GHVR | E | 102.5 | 0.68 | 2019-02-11 01:23:46 | 2019-02-12 08:34:00 | n |
| 141132 | IIEES | DAMV | E | 73.6 | 0.69 | 2019-02-11 01:23:43 | 2019-02-12 08:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | EPg | E | 2019-02-11 01:21:11 | -1.07 | y | 174 | 291 | |||
| IIEES | KRBR | Z | EPn | E | 2019-02-11 01:21:17 | -0.3 | y | 211 | 168 | |||
| IIEES | KRBR | N | ESg | E | 2019-02-11 01:21:44 | 0.32 | y | 211 | 168 | |||
| IIEES | TABS | Z | EPn | E | 2019-02-11 01:21:18 | -0.04 | y | 213 | 20 | |||
| IIEES | TABS | E | ESg | E | 2019-02-11 01:21:44 | -0.05 | y | 213 | 20 | |||
| IIEES | BSRN | Z | EPn | E | 2019-02-11 01:21:24 | -0.05 | y | 265 | 86 | |||
| IIEES | NASN | Z | EPn | E | 2019-02-11 01:21:34 | -0.36 | y | 348 | 289 | |||
| IIEES | SHRT | Z | EPn | E | 2019-02-11 01:21:44 | 0.09 | y | 422 | 61 | |||
| IIEES | SHRO | Z | EPn | E | 2019-02-11 01:21:48 | -0.23 | y | 462 | 357 | |||
| IIEES | ZHSF | Z | EPn | E | 2019-02-11 01:21:52 | -0.52 | y | 493 | 119 | |||
| IIEES | BNDS | Z | EPn | E | 2019-02-11 01:21:52 | -0.05 | y | 493 | 182 | |||
| IIEES | GHIR | Z | EPn | E | 2019-02-11 01:21:54 | 0 | y | 509 | 220 | |||
| IIEES | GHVR | Z | EPn | E | 2019-02-11 01:22:01 | 0.27 | y | 556 | 303 | |||
| IIEES | DAMV | Z | EPn | E | 2019-02-11 01:22:04 | 0.4 | y | 582 | 317 | |||
| IIEES | AHRM | Z | EPn | E | 2019-02-11 01:22:04 | 0.45 | y | 585 | 237 | |||
| IIEES | KHMZ | Z | EPn | E | 2019-02-11 01:22:10 | 0.72 | y | 632 | 291 | |||
| IIEES | MRVT | Z | EPn | E | 2019-02-11 01:22:12 | 0.24 | y | 645 | 358 | |||
| IIEES | BJRD | Z | EPn | E | 2019-02-11 01:22:13 | 0.39 | y | 657 | 8 | |||
| IIEES | ASAO | Z | EPn | E | 2019-02-11 01:22:13 | -0.06 | y | 659 | 299 | |||
| IIEES | CHTH | Z | EPn | E | 2019-02-11 01:22:13 | 0.24 | y | 659 | 315 | |||
| IIEES | THKV | Z | EPn | E | 2019-02-11 01:22:16 | 0.94 | y | 676 | 313 | |||
| IIEES | GIDE | Z | EPn | E | 2019-02-11 01:22:32 | -0.34 | y | 815 | 315 | |||
| IIEES | ZNJK | Z | EPn | E | 2019-02-11 01:22:42 | 0.67 | y | 884 | 309 | |||
| IIEES | ILBA | Z | EPn | E | 2019-02-11 01:22:51 | -0.24 | y | 968 | 284 | |||
| IIEES | GRMI | Z | EPn | E | 2019-02-11 01:23:06 | 0.16 | y | 1087 | 318 | |||
| IIEES | SRSL | Z | EPn | E | 2019-02-11 01:23:10 | 0.62 | y | 1115 | 299 | |||
