Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2019-02-18 11:04:00.4 |
| Date & Time (Local) | 1397/11/29 14:34:00.4 |

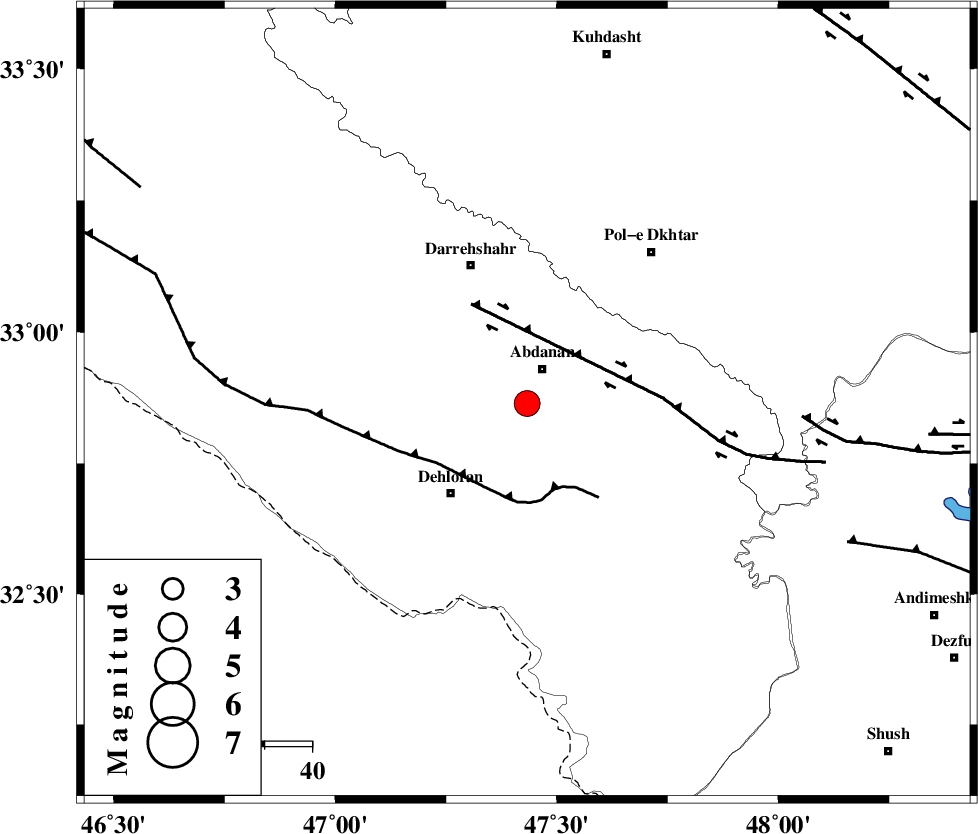

| Location | Lat:32.864 Lon: 47.433 |
| Region | Ilam Province, 8 km of Abdanan |
Nearest Cities |
|
| 8 km of Abdanan, Ilam Province | |
| 13 km West of Sarabbagh, Ilam Province | |
| 25 km North East of Dehloran, Ilam Province | |
| 32 km South East of Darreh Shahr, Ilam Province | |
| 35 km South East of Dashtabad-e olia, Ilam Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 19 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 24 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 58 km | |
| Number of Phases | 13 |
| RMS | 0.2 |
| Number of Stations | 11 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 141207 | IIEES | ILBA | N | 1286.1 | 0.6 | 2019-02-18 11:04:47 | 2019-02-19 06:53:00 | n |
| 141208 | IIEES | ILBA | E | 1312.5 | 0.6 | 2019-02-18 11:04:52 | 2019-02-19 06:53:00 | n |
| 141209 | IIEES | KHMZ | N | 185.7 | 0.56 | 2019-02-18 11:05:21 | 2019-02-19 06:53:00 | n |
| 141210 | IIEES | KHMZ | E | 195.8 | 0.69 | 2019-02-18 11:05:23 | 2019-02-19 06:53:00 | n |
| 141211 | IIEES | ASAO | N | 155.7 | 0.58 | 2019-02-18 11:05:34 | 2019-02-19 06:53:00 | n |
| 141212 | IIEES | ASAO | E | 188.2 | 0.63 | 2019-02-18 11:05:37 | 2019-02-19 06:53:00 | n |
| 141213 | IIEES | GHVR | E | 110.7 | 0.71 | 2019-02-18 11:05:51 | 2019-02-19 06:53:00 | n |
| 141214 | IIEES | GHVR | N | 106.8 | 0.79 | 2019-02-18 11:06:02 | 2019-02-19 06:53:00 | n |
| 141215 | IIEES | SRSL | N | 45.6 | 0.55 | 2019-02-18 11:05:54 | 2019-02-19 06:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | EPg | E | 2019-02-18 11:04:23 | -0.32 | y | 142 | 307 | |||
| IIEES | ILBA | N | ESg | E | 2019-02-18 11:04:41 | 0.4 | y | 142 | 307 | |||
| IIEES | SNGE | Z | EPn | E | 2019-02-18 11:04:38 | -0.08 | y | 247 | 358 | |||
| IIEES | SNGE | N | ESg | E | 2019-02-18 11:05:10 | -0.1 | y | 247 | 358 | |||
| IIEES | KHMZ | Z | EPn | E | 2019-02-18 11:04:39 | 0.09 | y | 255 | 67 | |||
| IIEES | ASAO | Z | EPn | E | 2019-02-18 11:04:45 | -0.05 | y | 304 | 51 | |||
| IIEES | GHVR | Z | EPn | E | 2019-02-18 11:04:57 | 0.31 | y | 396 | 62 | |||
| IIEES | SRSL | Z | EPn | E | 2019-02-18 11:04:59 | -0.26 | y | 414 | 334 | |||
| IIEES | ZNJK | Z | EPn | E | 2019-02-18 11:05:02 | -0.24 | y | 438 | 15 | |||
| IIEES | THKV | Z | EPn | E | 2019-02-18 11:05:05 | 0.21 | y | 464 | 42 | |||
| IIEES | CHTH | Z | EPn | E | 2019-02-18 11:05:07 | 0.38 | y | 479 | 44 | |||
| IIEES | NASN | Z | EPn | E | 2019-02-18 11:05:10 | -0.22 | y | 503 | 89 | |||
| IIEES | DAMV | Z | EPn | E | 2019-02-18 11:05:12 | -0.15 | y | 518 | 52 | |||
