Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2019-02-18 11:10:59.1 |
| Date & Time (Local) | 1397/11/29 14:40:59.1 |

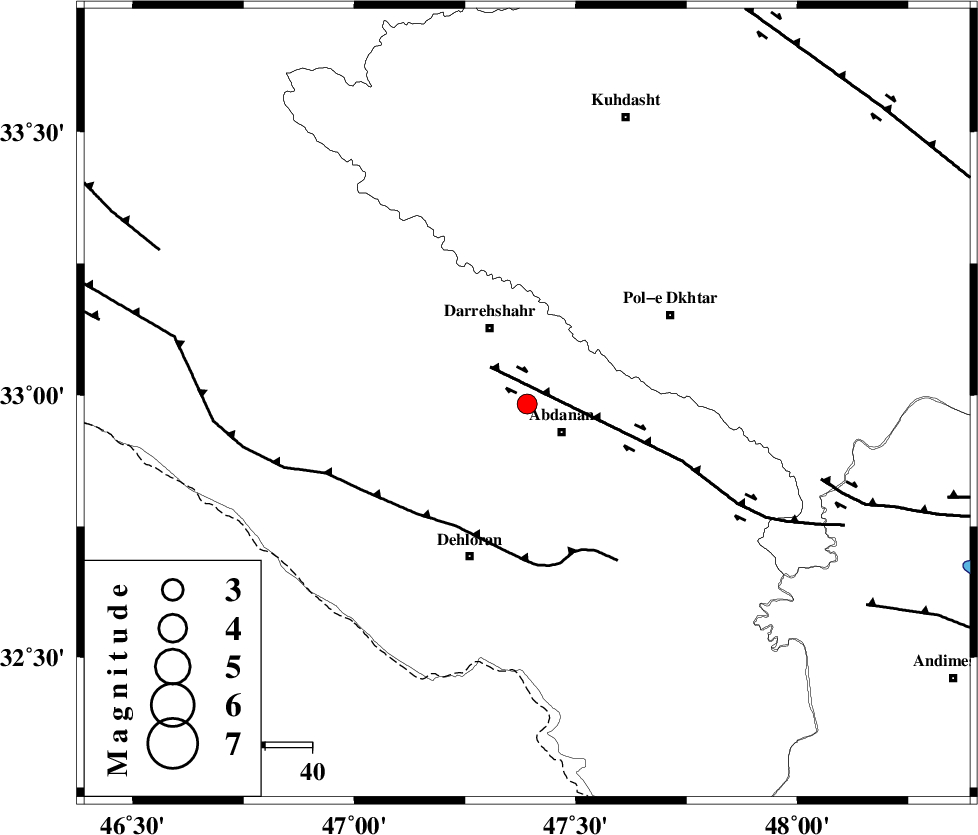

| Location | Lat:32.983 Lon: 47.39 |
| Region | Ilam Province, 9 km of Abdanan |
Nearest Cities |
|
| 9 km North of Abdanan, Ilam Province | |
| 18 km South of Darreh Shahr, Ilam Province | |
| 19 km North West of Sarabbagh, Ilam Province | |
| 21 km South of Dashtabad-e olia, Ilam Province | |
| 31 km South West of Sarab hammam, Lorestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 11 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 30 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 64 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 141231 | IIEES | SNGE | E | 59.5 | 0.66 | 2019-02-18 11:12:11 | 2019-02-20 08:55:00 | n |
| 141232 | IIEES | SNGE | N | 56 | 0.54 | 2019-02-18 11:12:20 | 2019-02-20 08:55:00 | n |
| 141233 | IIEES | ASAO | N | 19.9 | 0.57 | 2019-02-18 11:12:32 | 2019-02-20 08:55:00 | n |
| 141234 | IIEES | ASAO | E | 29.6 | 0.57 | 2019-02-18 11:12:35 | 2019-02-20 08:55:00 | n |
| 141235 | IIEES | GHVR | E | 15.3 | 0.88 | 2019-02-18 11:12:48 | 2019-02-20 08:55:00 | n |
| 141236 | IIEES | GHVR | N | 12.8 | 0.2 | 2019-02-18 11:13:06 | 2019-02-20 08:55:00 | n |
| 141237 | IIEES | SRSL | E | 19.7 | 0.54 | 2019-02-18 11:12:45 | 2019-02-20 08:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | EPg | E | 2019-02-18 11:11:21 | -0.03 | y | 131 | 303 | |||
| IIEES | SNGE | Z | EPn | E | 2019-02-18 11:11:35 | 0.19 | y | 234 | 359 | |||
| IIEES | SNGE | N | ESg | E | 2019-02-18 11:12:05 | 0.03 | y | 234 | 359 | |||
| IIEES | KHMZ | Z | EPn | E | 2019-02-18 11:11:38 | 0.09 | y | 254 | 70 | |||
| IIEES | ASAO | Z | EPn | E | 2019-02-18 11:11:43 | 0.04 | y | 300 | 54 | |||
| IIEES | GHVR | Z | EPn | E | 2019-02-18 11:11:55 | -0.04 | y | 394 | 64 | |||
| IIEES | SRSL | Z | EPn | E | 2019-02-18 11:11:56 | 0.05 | y | 401 | 334 | |||
| IIEES | ZNJK | Z | EPn | E | 2019-02-18 11:11:59 | -0.42 | y | 426 | 16 | |||
