Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2019-05-28 00:30:15.7 |
| Date & Time (Local) | 1398/3/7 05:00:15.7 |

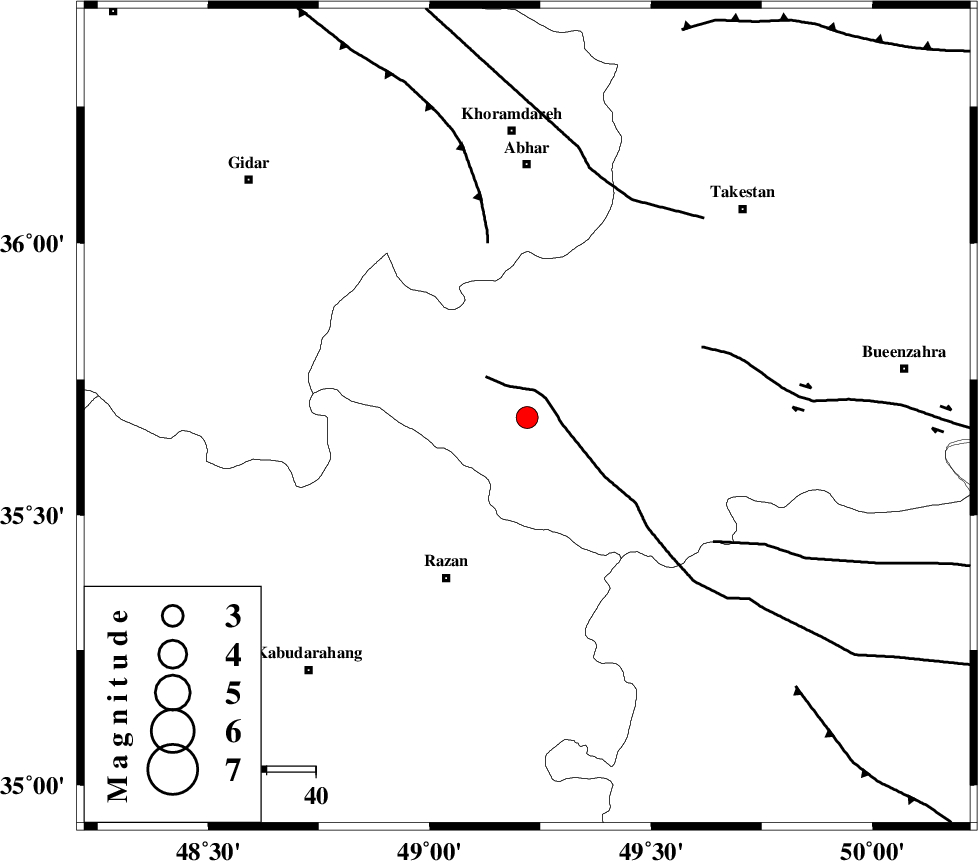

| Location | Lat:35.68 Lon: 49.22 |
| Region | Ghazvin Province, 52 km South of Abhar |
Nearest Cities |
|
| 10 km of Ab-e garm, Ghazvin Province | |
| 10 km North of Avaj, Ghazvin Province | |
| 24 km North West of Kolanjin, Ghazvin Province | |
| 24 km South West of Hoseynabad, Ghazvin Province | |
| 37 km North East of Razan, Hamedan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 6 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 37 km | |
| IPAK_F (Length: 80 km) , Distance to epicenter: 38 km | |
| Number of Phases | 27 |
| RMS | 0.6 |
| Number of Stations | 12 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 142753 | IIEES SC | ZNJK | Z | 110 | 1 | 2019-05-28 00:31:01 | 2019-05-28 07:42:00 | n |
| 142754 | IIEES SC | ASAO | Z | 170 | 1 | 2019-05-28 00:30:57 | 2019-05-28 07:42:00 | n |
| 142755 | IIEES SC | GIDE | Z | 1100 | 1 | 2019-05-28 00:31:05 | 2019-05-28 07:42:00 | n |
| 142756 | IIEES SC | THKV | Z | 280 | 1 | 2019-05-28 00:31:06 | 2019-05-28 07:42:00 | n |
| 142757 | IIEES SC | CHTH | Z | 260 | 1 | 2019-05-28 00:31:12 | 2019-05-28 07:42:00 | n |
| 142758 | IIEES SC | SNGE | Z | 120 | 1 | 2019-05-28 00:31:08 | 2019-05-28 07:42:00 | n |
| 142759 | IIEES SC | KHMZ | Z | 180 | 1 | 2019-05-28 00:31:23 | 2019-05-28 07:42:00 | n |
| 142760 | IIEES SC | GHVR | Z | 120 | 1 | 2019-05-28 00:31:31 | 2019-05-28 07:42:00 | n |
| 142761 | IIEES SC | DAMV | Z | 92 | 1 | 2019-05-28 00:31:35 | 2019-05-28 07:42:00 | n |
| 142762 | IIEES SC | MAHB | Z | 24 | 1 | 2019-05-28 00:32:16 | 2019-05-28 07:42:00 | n |
| 142763 | IIEES SC | ILBA | Z | 21 | 1 | 2019-05-28 00:32:06 | 2019-05-28 07:42:00 | n |
| 142764 | IIEES SC | GRMI | Z | 25 | 1 | 2019-05-28 00:31:16 | 2019-05-28 07:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ZNJK | Z | IP | I | 2019-05-28 00:30:35 | -0.7 | y | 122 | 336 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-05-28 00:30:39 | -0.5 | y | 144 | 150 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-05-28 00:30:41 | 0.3 | y | 155 | 24 | |||
| IIEES SC | THKV | Z | IP | I | 2019-05-28 00:30:41 | 0.2 | y | 155 | 80 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-05-28 00:30:44 | -0.1 | y | 177 | 81 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-05-28 00:30:45 | -0.7 | y | 177 | 249 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-05-28 00:30:52 | 0.2 | y | 222 | 162 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-05-28 00:30:51 | -0.4 | y | 222 | 126 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-05-28 00:30:55 | 0 | y | 244 | 91 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-05-28 00:31:06 | 0.5 | y | 333 | 291 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-05-28 00:31:15 | 7.9 | n | 4 | 355 | 182 | ||
| IIEES SC | ILBA | Z | IP | I | 2019-05-28 00:31:09 | 1.6 | y | 355 | 231 | |||
| IIEES SC | AZR | Z | IP | I | 2019-05-28 00:31:14 | 5.4 | n | 4 | 366 | 308 | ||
| IIEES SC | GRMI | Z | IP | I | 2019-05-28 00:31:10 | 0.5 | y | 366 | 341 | |||
| IIEES SC | GLO | Z | IP | I | 2019-05-28 00:31:26 | 10 | n | 4 | 422 | 78 | ||
| IIEES SC | ZNJK | 031 | 2019-05-28 00:31:02 | y | 122 | 336 | ||||||
| IIEES SC | ASAO | 031 | 2019-05-28 00:31:03 | y | 144 | 150 | ||||||
| IIEES SC | GIDE | 031 | 2019-05-28 00:31:05 | y | 155 | 24 | ||||||
| IIEES SC | THKV | 031 | 2019-05-28 00:31:08 | y | 155 | 80 | ||||||
| IIEES SC | CHTH | 031 | 2019-05-28 00:31:10 | y | 177 | 81 | ||||||
| IIEES SC | SNGE | 031 | 2019-05-28 00:31:11 | y | 177 | 249 | ||||||
| IIEES SC | KHMZ | 031 | 2019-05-28 00:31:24 | y | 222 | 162 | ||||||
| IIEES SC | GHVR | 031 | 2019-05-28 00:31:27 | y | 222 | 126 | ||||||
| IIEES SC | DAMV | 031 | 2019-05-28 00:31:29 | y | 244 | 91 | ||||||
| IIEES SC | MAHB | 031 | 2019-05-28 00:31:58 | y | 333 | 291 | ||||||
| IIEES SC | ILBA | 031 | 2019-05-28 00:31:40 | y | 355 | 231 | ||||||
| IIEES SC | GRMI | 032 | 2019-05-28 00:32:11 | y | 366 | 341 | ||||||
