Event Specification
Magnitude |
4.2 |
| Date & Time (UTC) | 2019-06-07 21:42:04.2 |
| Date & Time (Local) | 1398/3/18 02:12:04.2 |

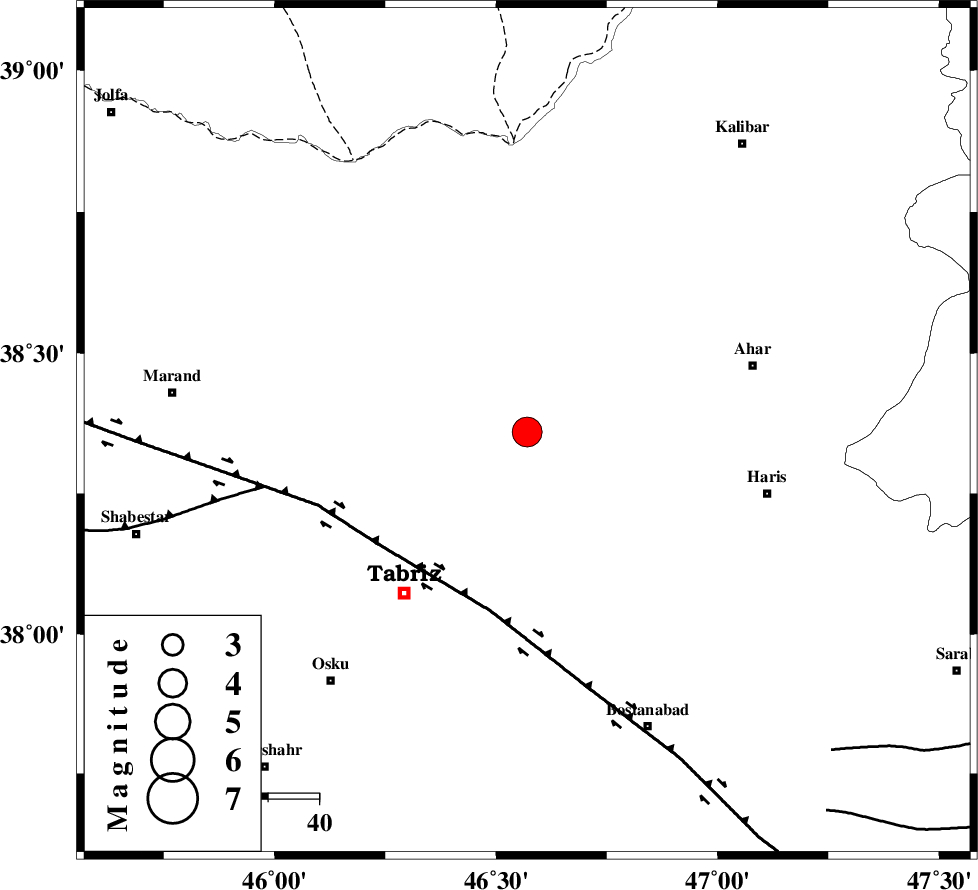

| Location | Lat:38.36 Lon: 46.57 |
| Region | Azarbaijan Sharghi Province, 40 km North-East of Tabriz |
Nearest Cities |
|
| 8 km North of Sarand, Azarbaijan Sharghi Province | |
| 15 km South of Varzagan, Azarbaijan Sharghi Province | |
| 21 km North East of Yangi esperan, Azarbaijan Sharghi Province | |
| 22 km North of Khvajeh, Azarbaijan Sharghi Province | |
| 23 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 36 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 53 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 87 km | |
| Number of Phases | 28 |
| RMS | 0.5 |
| Number of Stations | 18 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 11 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 142969 | IIEES SC | AZR | Z | 8300 | 1 | 2019-06-07 21:42:47 | 2019-06-08 09:32:00 | n |
| 142970 | IIEES SC | MAHB | Z | 1200 | 1 | 2019-06-07 21:43:02 | 2019-06-08 09:32:00 | n |
| 142971 | IIEES SC | GNI | Z | 1500 | 1 | 2019-06-07 21:43:24 | 2019-06-08 09:32:00 | n |
| 142972 | IIEES SC | SRSL | Z | 580 | 1 | 2019-06-07 21:43:25 | 2019-06-08 09:32:00 | n |
| 142973 | IIEES SC | GIDE | Z | 3300 | 1 | 2019-06-07 21:43:39 | 2019-06-08 09:32:00 | n |
| 142974 | IIEES SC | SNGE | Z | 230 | 1 | 2019-06-07 21:43:59 | 2019-06-08 09:32:00 | n |
| 142975 | IIEES SC | CHTH | Z | 110 | 1 | 2019-06-07 21:44:34 | 2019-06-08 09:32:00 | n |
| 142976 | IIEES SC | ASAO | Z | 88 | 1 | 2019-06-07 21:44:50 | 2019-06-08 09:32:00 | n |
| 142977 | IIEES SC | ILBA | Z | 60 | 1 | 2019-06-07 21:45:06 | 2019-06-08 09:32:00 | n |
| 142978 | IIEES SC | KHMZ | Z | 55 | 1 | 2019-06-07 21:45:13 | 2019-06-08 09:32:00 | n |
| 142979 | IIEES SC | GLO | Z | 99 | 1 | 2019-06-07 21:43:47 | 2019-06-08 09:32:00 | n |
| 142980 | IIEES SC | GTMR | Z | 37 | 1 | 2019-06-07 21:46:06 | 2019-06-08 09:32:00 | n |
| 142981 | IIEES SC | GTMR | Z | 21 | 0.7 | 2019-06-07 21:43:55 | 2019-06-08 09:32:00 | n |
| 142982 | IIEES SC | SHRO | Z | 22 | 1 | 2019-06-07 21:45:57 | 2019-06-08 09:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AZR | E | IS | I | 2019-06-07 21:42:34 | 1.8 | y | 88 | 214 | |||
| IIEES SC | AZR | Z | IP | I | 2019-06-07 21:42:19 | -0.7 | y | 88 | 214 | |||
| IIEES SC | MAHB | E | IS | I | 2019-06-07 21:43:00 | 0.7 | y | 189 | 203 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-06-07 21:42:35 | -0.4 | y | 189 | 203 | |||
| IIEES SC | GNI | Z | IP | I | 2019-06-07 21:42:43 | 0 | y | 255 | 321 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-06-07 21:42:44 | -0.1 | y | 255 | 203 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-06-07 21:42:54 | 0.7 | y | 333 | 118 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-06-07 21:42:58 | -0.3 | y | 366 | 169 | |||
| IIEES SC | THKV | Z | IP | I | 2019-06-07 21:43:12 | 1.8 | y | 467 | 125 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-06-07 21:43:12 | -0.9 | y | 489 | 124 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-06-07 21:43:16 | -1.4 | y | 522 | 144 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-06-07 21:43:18 | 0.6 | y | 522 | 184 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-06-07 21:43:26 | 0 | y | 600 | 149 | |||
| IIEES SC | GLO | Z | IP | I | 2019-06-07 21:43:35 | -1.3 | y | 678 | 108 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-06-07 21:43:37 | -1.4 | y | 689 | 161 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-06-07 21:44:00 | -0.6 | y | 878 | 107 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-06-07 21:44:14 | -0.9 | y | 989 | 132 | |||
| IIEES SC | AZR | 2142 | 2019-06-07 21:42:44 | y | 88 | 214 | ||||||
| IIEES SC | MAHB | 2143 | 2019-06-07 21:43:07 | y | 189 | 203 | ||||||
| IIEES SC | SRSL | 2143 | 2019-06-07 21:43:26 | y | 255 | 203 | ||||||
| IIEES SC | GIDE | 2143 | 2019-06-07 21:43:45 | y | 333 | 118 | ||||||
| IIEES SC | SNGE | 2144 | 2019-06-07 21:44:05 | y | 366 | 169 | ||||||
| IIEES SC | CHTH | 2144 | 2019-06-07 21:44:26 | y | 489 | 124 | ||||||
| IIEES SC | ASAO | 2144 | 2019-06-07 21:44:56 | y | 522 | 144 | ||||||
| IIEES SC | ILBA | 2144 | 2019-06-07 21:44:26 | y | 522 | 184 | ||||||
| IIEES SC | KHMZ | 2144 | 2019-06-07 21:44:56 | y | 600 | 149 | ||||||
| IIEES SC | GTMR | 2145 | 2019-06-07 21:45:47 | y | 689 | 161 | ||||||
| IIEES SC | SHRO | 2144 | 2019-06-07 21:44:50 | y | 878 | 107 | ||||||
