Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2019-06-15 22:34:08.1 |
| Date & Time (Local) | 1398/3/26 03:04:08.1 |

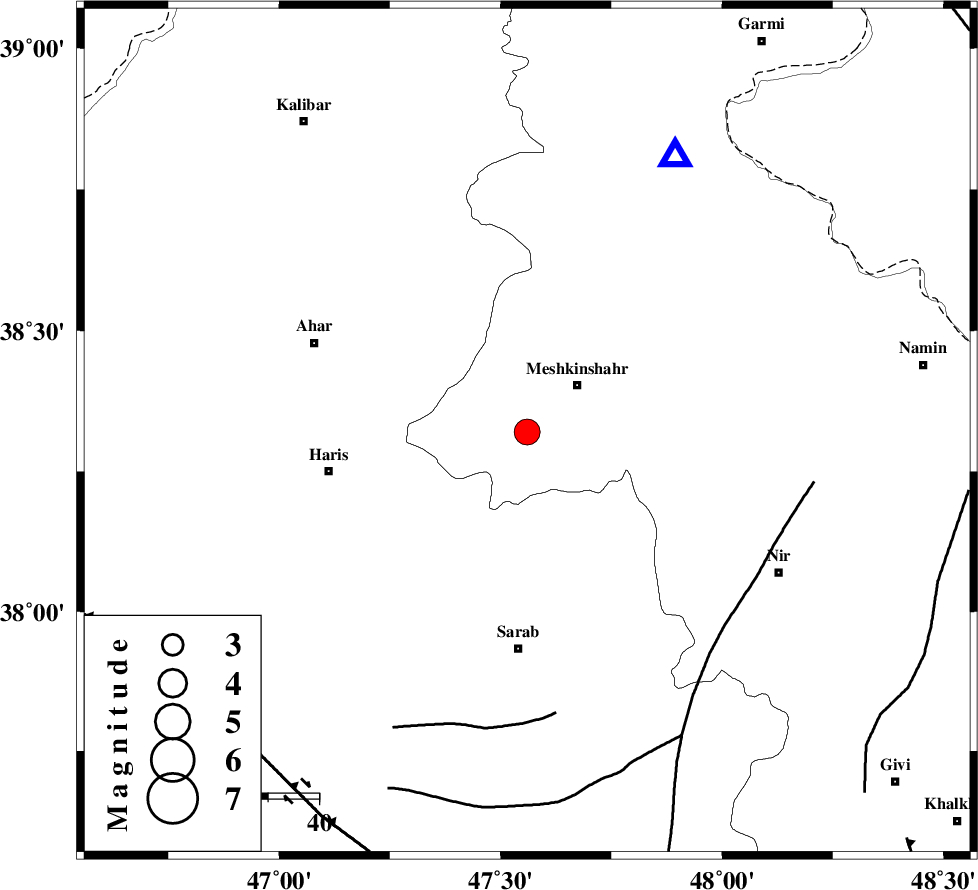

| Location | Lat:38.32 Lon: 47.56 |
| Region | Ardebil Province, 14 km -West of Meshgin Shahr |
Nearest Cities |
|
| 6 km of Shaban, Ardebil Province | |
| 14 km West of Meshgin Shahr, Ardebil Province | |
| 15 km South of Parian, Ardebil Province | |
| 17 km West of Manueil, Ardebil Province | |
| 21 km South West of Abbasabad-e parikhan, Ardebil Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 55 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 83 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 86 km | |
| Number of Phases | 17 |
| RMS | 0.6 |
| Number of Stations | 9 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 11 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 143145 | IIEES SC | AZR | Z | 1200 | 1 | 2019-06-15 22:34:36 | 2019-06-16 07:54:00 | n |
| 143146 | IIEES SC | ZNJK | Z | 220 | 1 | 2019-06-15 22:34:43 | 2019-06-16 07:54:00 | n |
| 143147 | IIEES SC | MAHB | Z | 350 | 1 | 2019-06-15 22:35:19 | 2019-06-16 07:54:00 | n |
| 143148 | IIEES SC | GIDE | Z | 780 | 1 | 2019-06-15 22:35:22 | 2019-06-16 07:54:00 | n |
| 143149 | IIEES SC | SRSL | Z | 170 | 1 | 2019-06-15 22:35:38 | 2019-06-16 07:54:00 | n |
| 143150 | IIEES SC | SNGE | Z | 48 | 1 | 2019-06-15 22:35:54 | 2019-06-16 07:54:00 | n |
| 143151 | IIEES SC | THKV | Z | 60 | 1 | 2019-06-15 22:35:20 | 2019-06-16 07:54:00 | n |
| 143152 | IIEES SC | CHTH | Z | 31 | 1 | 2019-06-15 22:35:19 | 2019-06-16 07:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AZR | Z | IP | I | 2019-06-15 22:34:33 | -0.4 | y | 155 | 243 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-06-15 22:34:40 | -1.6 | y | 211 | 152 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-06-15 22:34:46 | 0.1 | y | 233 | 224 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-06-15 22:34:48 | -0.4 | y | 255 | 127 | |||
| IIEES SC | MAKU | Z | IP | I | 2019-06-15 22:34:50 | -0.2 | y | 278 | 295 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-06-15 22:34:54 | 0.9 | y | 300 | 219 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-06-15 22:35:01 | 0.3 | y | 355 | 183 | |||
| IIEES SC | THKV | Z | IP | I | 2019-06-15 22:35:06 | 0.5 | y | 400 | 132 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-06-15 22:35:08 | 0.7 | y | 411 | 130 | |||
| IIEES SC | AZR | 2235 | 2019-06-15 22:35:03 | y | 155 | 243 | ||||||
| IIEES SC | ZNJK | 2235 | 2019-06-15 22:35:00 | y | 211 | 152 | ||||||
| IIEES SC | MAHB | 2235 | 2019-06-15 22:35:19 | y | 233 | 224 | ||||||
| IIEES SC | GIDE | 2235 | 2019-06-15 22:35:24 | y | 255 | 127 | ||||||
| IIEES SC | SRSL | 2235 | 2019-06-15 22:35:38 | y | 300 | 219 | ||||||
| IIEES SC | SNGE | 2235 | 2019-06-15 22:35:54 | y | 355 | 183 | ||||||
| IIEES SC | THKV | 2236 | 2019-06-15 22:36:03 | y | 400 | 132 | ||||||
| IIEES SC | CHTH | 2235 | 2019-06-15 22:35:48 | y | 411 | 130 | ||||||
