Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2019-06-20 21:54:37.7 |
| Date & Time (Local) | 1398/3/31 02:24:37.7 |

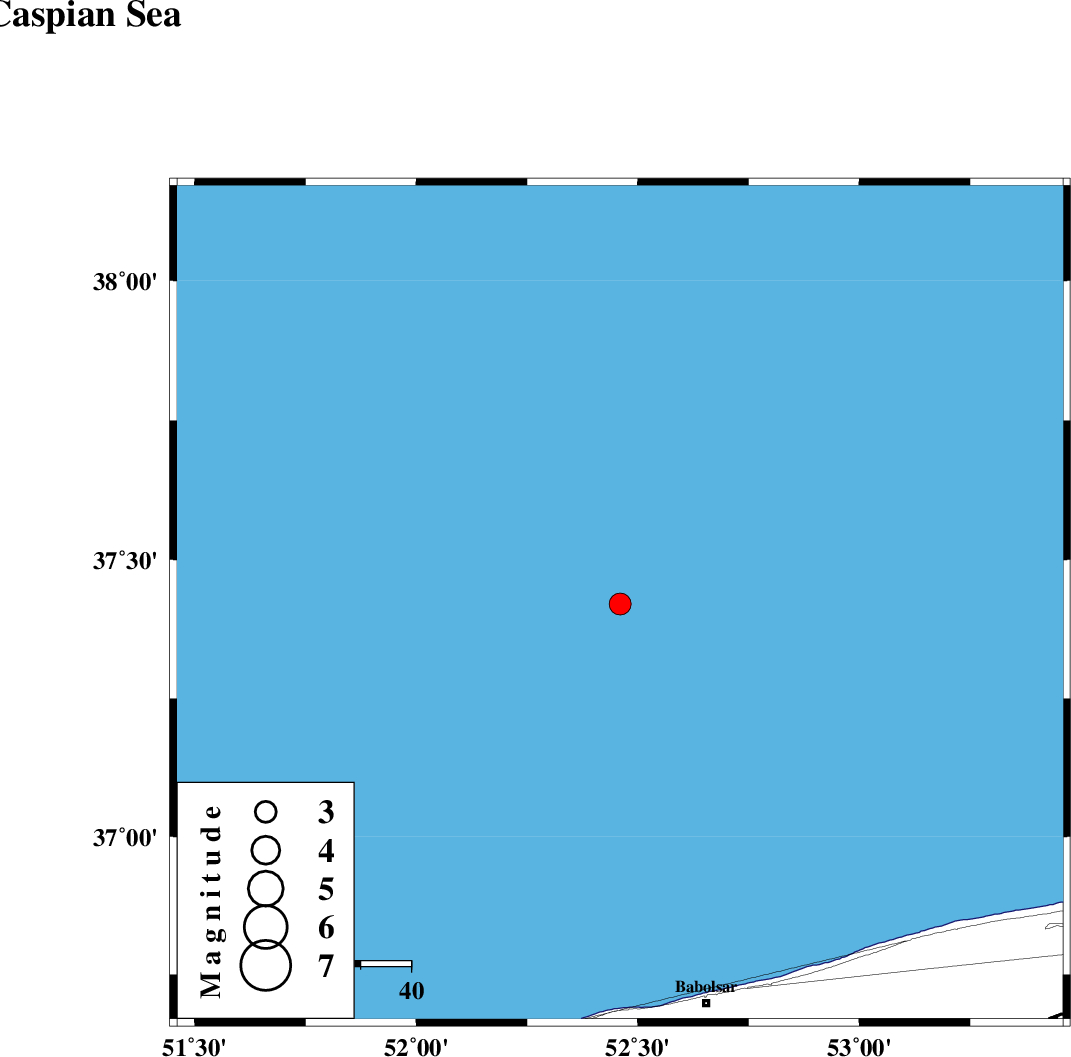

| Location | Lat:37.42 Lon: 52.46 |
| Region | Caspian Sea, 82 km North-West of Babolsar |
Nearest Cities |
|
| 82 km North West of Babolsar, Mazandaran Province | |
| 82 km North of Fereidunkenar, Mazandaran Province | |
| 84 km North of Sorkhrud, Mazandaran Province | |
| 86 km North West of Babol posht, Mazandaran Province | |
| 87 km North of Bisheh kola, Mazandaran Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 109 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 124 km | |
| KOJOOR (Length: 75 km) , Distance to epicenter: 134 km | |
| Number of Phases | 10 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 143249 | IIEES SC | GLO | Z | 260 | 1 | 2019-06-20 21:55:26 | 2019-06-22 03:12:00 | n |
| 143250 | IIEES SC | DAMV | Z | 68 | 1 | 2019-06-20 21:55:41 | 2019-06-22 03:12:00 | n |
| 143251 | IIEES SC | CHTH | Z | 60 | 1 | 2019-06-20 21:55:44 | 2019-06-22 03:12:00 | n |
| 143252 | IIEES SC | THKV | Z | 110 | 1 | 2019-06-20 21:55:48 | 2019-06-22 03:12:00 | n |
| 143253 | IIEES SC | ZNJK | Z | 17 | 1 | 2019-06-20 21:56:06 | 2019-06-22 03:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GLO | Z | IP | I | 2019-06-20 21:55:03 | 0 | y | 155 | 130 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-06-20 21:55:10 | 0.1 | y | 200 | 192 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-06-20 21:55:11 | 0 | y | 200 | 215 | |||
| IIEES SC | THKV | Z | IP | I | 2019-06-20 21:55:12 | -0.3 | y | 222 | 220 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-06-20 21:55:28 | 0.1 | y | 344 | 256 | |||
| IIEES SC | GLO | 2155 | 2019-06-20 21:55:24 | y | 155 | 130 | ||||||
| IIEES SC | DAMV | 2156 | 2019-06-20 21:56:18 | y | 200 | 192 | ||||||
| IIEES SC | CHTH | 2155 | 2019-06-20 21:55:42 | y | 200 | 215 | ||||||
| IIEES SC | THKV | 2155 | 2019-06-20 21:55:48 | y | 222 | 220 | ||||||
| IIEES SC | ZNJK | 2156 | 2019-06-20 21:56:13 | y | 344 | 256 | ||||||
