Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2019-06-30 04:13:39.8 |
| Date & Time (Local) | 1398/4/9 08:43:39.8 |

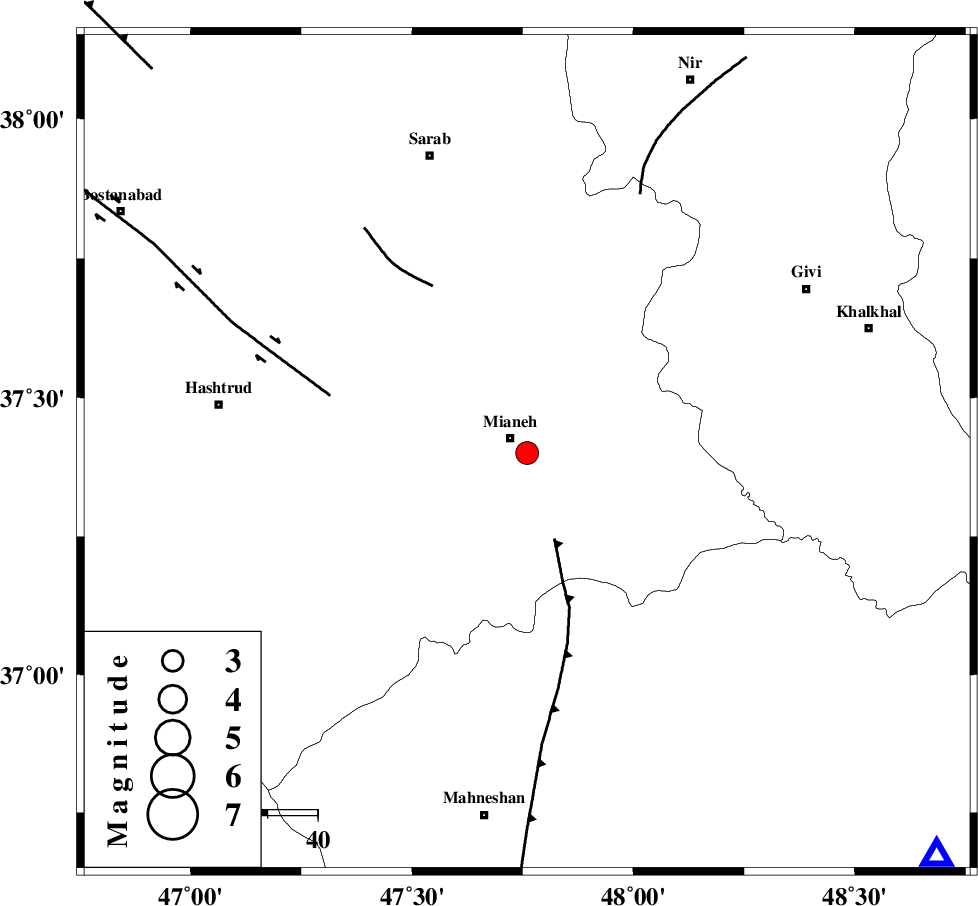

| Location | Lat:37.4 Lon: 47.76 |
| Region | Azarbaijan Sharghi Province, 5 km of Mianeh |
Nearest Cities |
|
| 3 km North of Achachi, Azarbaijan Sharghi Province | |
| 5 km of Mianeh, Azarbaijan Sharghi Province | |
| 11 km of Gondoghdi, Azarbaijan Sharghi Province | |
| 14 km North East of Sheikhdarabad, Azarbaijan Sharghi Province | |
| 17 km North East of Kangavar, Azarbaijan Sharghi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 41 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 58 km | |
| Number of Phases | 26 |
| RMS | 0.8 |
| Number of Stations | 13 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 15 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 143469 | IIEES SC | ZNJK | Z | 360 | 1 | 2019-06-30 04:14:18 | 2019-06-30 12:01:00 | n |
| 143470 | IIEES SC | GRMI | Z | 190 | 1 | 2019-06-30 04:14:08 | 2019-06-30 12:01:00 | n |
| 143471 | IIEES SC | AZR | Z | 990 | 1 | 2019-06-30 04:14:34 | 2019-06-30 12:01:00 | n |
| 143472 | IIEES SC | MAHB | Z | 210 | 1 | 2019-06-30 04:14:44 | 2019-06-30 12:01:00 | n |
| 143473 | IIEES SC | GIDE | Z | 1200 | 1 | 2019-06-30 04:14:44 | 2019-06-30 12:01:00 | n |
| 143474 | IIEES SC | SRSL | Z | 75 | 1 | 2019-06-30 04:14:23 | 2019-06-30 12:01:00 | n |
| 143475 | IIEES SC | SNGE | Z | 59 | 1 | 2019-06-30 04:14:55 | 2019-06-30 12:01:00 | n |
| 143476 | IIEES SC | THKV | Z | 140 | 1 | 2019-06-30 04:15:13 | 2019-06-30 12:01:00 | n |
| 143477 | IIEES SC | CHTH | Z | 120 | 1 | 2019-06-30 04:15:20 | 2019-06-30 12:01:00 | n |
| 143478 | IIEES SC | ASAO | Z | 31 | 1 | 2019-06-30 04:14:43 | 2019-06-30 12:01:00 | n |
| 143479 | IIEES SC | DAMV | Z | 40 | 1 | 2019-06-30 04:15:46 | 2019-06-30 12:01:00 | n |
| 143480 | IIEES SC | GHVR | Z | 42 | 1 | 2019-06-30 04:15:02 | 2019-06-30 12:01:00 | n |
| 143481 | IIEES SC | KHMZ | Z | 29 | 1 | 2019-06-30 04:16:06 | 2019-06-30 12:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ZNJK | Z | IP | I | 2019-06-30 04:13:58 | -1.4 | y | 111 | 134 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-06-30 04:14:05 | 0 | y | 155 | 4 | |||
| IIEES SC | AZR | Z | IP | I | 2019-06-30 04:14:06 | -0.2 | y | 155 | 281 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-06-30 04:14:11 | -0.5 | y | 200 | 249 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-06-30 04:14:11 | -0.3 | y | 200 | 105 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-06-30 04:14:19 | 0.4 | y | 244 | 238 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-06-30 04:14:21 | 0.9 | y | 255 | 188 | |||
| IIEES SC | THKV | Z | IP | I | 2019-06-30 04:14:30 | 1.9 | y | 322 | 120 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-06-30 04:14:33 | 2.2 | y | 344 | 119 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-06-30 04:14:34 | -0.3 | y | 378 | 147 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-06-30 04:14:42 | 1.9 | y | 422 | 117 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-06-30 04:14:42 | -1.4 | y | 455 | 136 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-06-30 04:14:43 | -0.8 | y | 455 | 154 | |||
| IIEES SC | ZNJK | 414 | 2019-06-30 04:14:19 | y | 111 | 134 | ||||||
| IIEES SC | GRMI | 414 | 2019-06-30 04:14:32 | y | 155 | 4 | ||||||
| IIEES SC | AZR | 414 | 2019-06-30 04:14:30 | y | 155 | 281 | ||||||
| IIEES SC | MAHB | 414 | 2019-06-30 04:14:36 | y | 200 | 249 | ||||||
| IIEES SC | GIDE | 414 | 2019-06-30 04:14:41 | y | 200 | 105 | ||||||
| IIEES SC | SRSL | 414 | 2019-06-30 04:14:57 | y | 244 | 238 | ||||||
| IIEES SC | SNGE | 414 | 2019-06-30 04:14:57 | y | 255 | 188 | ||||||
| IIEES SC | THKV | 415 | 2019-06-30 04:15:14 | y | 322 | 120 | ||||||
| IIEES SC | CHTH | 415 | 2019-06-30 04:15:20 | y | 344 | 119 | ||||||
| IIEES SC | ASAO | 415 | 2019-06-30 04:15:40 | y | 378 | 147 | ||||||
| IIEES SC | DAMV | 416 | 2019-06-30 04:16:03 | y | 422 | 117 | ||||||
| IIEES SC | GHVR | 415 | 2019-06-30 04:15:55 | y | 455 | 136 | ||||||
| IIEES SC | KHMZ | 416 | 2019-06-30 04:16:02 | y | 455 | 154 | ||||||
