Event Specification
Magnitude |
4.8 |
| Date & Time (UTC) | 2019-07-04 06:27:33.4 |
| Date & Time (Local) | 1398/4/13 10:57:33.4 |
| Location | Lat:36.2 Lon: 54.16 |
| Region | Semnan Province, 17 km -West of Damghan |
Nearest Cities |
|
| 16 km North of Seydabad, Semnan Province | |
| 17 km North West of Damghan, Semnan Province | |
| 19 km North of Amirabad, Semnan Province | |
| 31 km North East of Darvar, Semnan Province | |
| 36 km West of Mehmandust, Semnan Province | |
| Depth | 10 km |
| Agency | |

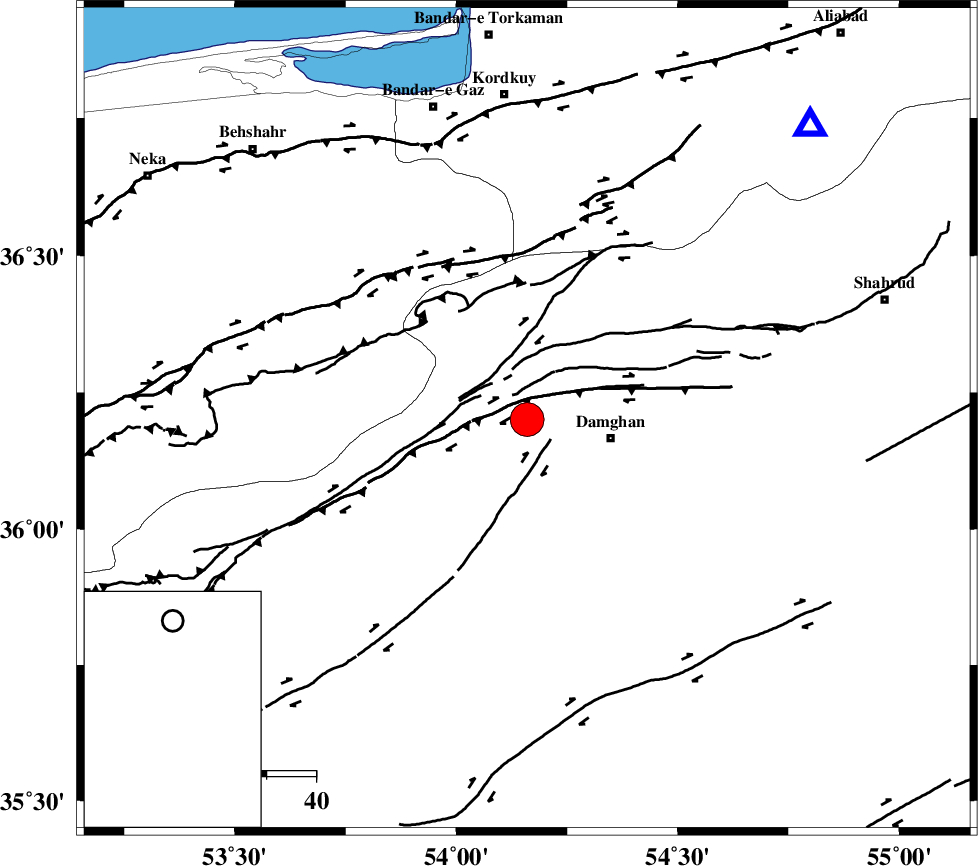

Faults within 150 km: |
|
| DAMGHAN_F (Length: 95 km) , Distance to epicenter: 3 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 9 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 11 km | |
| Number of Phases | 25 |
| RMS | 0.6 |
| Number of Stations | 15 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 143662 | IIEES SC | GLO | Z | 91000 | 1 | 2019-07-04 06:27:55 | 2019-07-04 11:32:00 | n |
| 143663 | IIEES SC | SHRO | Z | 11000 | 1 | 2019-07-04 06:28:02 | 2019-07-04 11:32:00 | n |
| 143664 | IIEES SC | CHTH | Z | 3100 | 1 | 2019-07-04 06:28:57 | 2019-07-04 11:32:00 | n |
| 143665 | IIEES SC | THKV | Z | 5200 | 1 | 2019-07-04 06:29:04 | 2019-07-04 11:32:00 | n |
| 143666 | IIEES SC | SBZV | Z | 2600 | 1 | 2019-07-04 06:29:25 | 2019-07-04 11:32:00 | n |
| 143667 | IIEES SC | GHVR | Z | 5400 | 1 | 2019-07-04 06:29:10 | 2019-07-04 11:32:00 | n |
| 143668 | IIEES SC | BJRD | Z | 1900 | 1 | 2019-07-04 06:29:21 | 2019-07-04 11:32:00 | n |
| 143669 | IIEES SC | AKL | Z | 590 | 1 | 2019-07-04 06:29:40 | 2019-07-04 11:32:00 | n |
| 143670 | IIEES SC | ZNJK | Z | 570 | 1 | 2019-07-04 06:30:01 | 2019-07-04 11:32:00 | n |
| 143671 | IIEES SC | GTMR | Z | 760 | 1 | 2019-07-04 06:30:48 | 2019-07-04 11:32:00 | n |
| 143672 | IIEES SC | SNGE | Z | 290 | 1 | 2019-07-04 06:31:14 | 2019-07-04 11:32:00 | n |
| 143673 | IIEES SC | AZR | Z | 330 | 1 | 2019-07-04 06:29:28 | 2019-07-04 11:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GLO | Z | IP | I | 2019-07-04 06:27:40 | -1.3 | y | 44 | 319 | |||
| IIEES SC | GLO | Z | IS | I | 2019-07-04 06:27:47 | 0.2 | y | 44 | 319 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-07-04 06:28:01 | -0.1 | y | 166 | 97 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-07-04 06:28:16 | 0.3 | y | 278 | 263 | |||
| IIEES SC | THKV | Z | IP | I | 2019-07-04 06:28:19 | 0.9 | y | 300 | 264 | |||
| IIEES SC | SBZV | Z | IP | I | 2019-07-04 06:28:20 | -0.4 | y | 311 | 86 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-07-04 06:28:22 | 0.6 | y | 322 | 234 | |||
| IIEES SC | BJRD | Z | IP | I | 2019-07-04 06:28:23 | 0.3 | y | 333 | 60 | |||
| IIEES SC | AKL | Z | IP | I | 2019-07-04 06:28:32 | -0.5 | y | 411 | 84 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-07-04 06:28:43 | 0.2 | y | 489 | 276 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-07-04 06:28:57 | -1.2 | y | 622 | 228 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-07-04 06:28:59 | -0.8 | y | 633 | 259 | |||
| IIEES SC | AZR | Z | IP | I | 2019-07-04 06:29:14 | -0.4 | y | 745 | 283 | |||
| IIEES SC | SRVN | E | IP | I | 2019-07-04 06:30:16 | 0 | y | 1245 | 141 | |||
| IIEES SC | GLO | 627 | 2019-07-04 06:27:48 | y | 44 | 319 | ||||||
| IIEES SC | SHRO | 628 | 2019-07-04 06:28:27 | y | 166 | 97 | ||||||
| IIEES SC | CHTH | 628 | 2019-07-04 06:28:36 | y | 278 | 263 | ||||||
| IIEES SC | THKV | 629 | 2019-07-04 06:29:01 | y | 300 | 264 | ||||||
| IIEES SC | SBZV | 629 | 2019-07-04 06:29:12 | y | 311 | 86 | ||||||
| IIEES SC | GHVR | 629 | 2019-07-04 06:29:21 | y | 322 | 234 | ||||||
| IIEES SC | BJRD | 629 | 2019-07-04 06:29:21 | y | 333 | 60 | ||||||
| IIEES SC | AKL | 629 | 2019-07-04 06:29:42 | y | 411 | 84 | ||||||
| IIEES SC | ZNJK | 630 | 2019-07-04 06:30:10 | y | 489 | 276 | ||||||
| IIEES SC | GTMR | 630 | 2019-07-04 06:30:48 | y | 622 | 228 | ||||||
| IIEES SC | SNGE | 629 | 2019-07-04 06:29:40 | y | 633 | 259 | ||||||
