Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2019-07-04 19:33:38.0 |
| Date & Time (Local) | 1398/4/14 00:03:38.0 |
| Location | Lat:36.19 Lon: 54.1 |
| Region | Semnan Province, 23 km -West of Damghan |
Nearest Cities |
|
| 16 km North of Seydabad, Semnan Province | |
| 19 km North of Amirabad, Semnan Province | |
| 23 km North West of Damghan, Semnan Province | |
| 27 km North East of Darvar, Semnan Province | |
| 36 km East of Talma darreh, Mazandaran Province | |
| Depth | 12 km |
| Agency | |

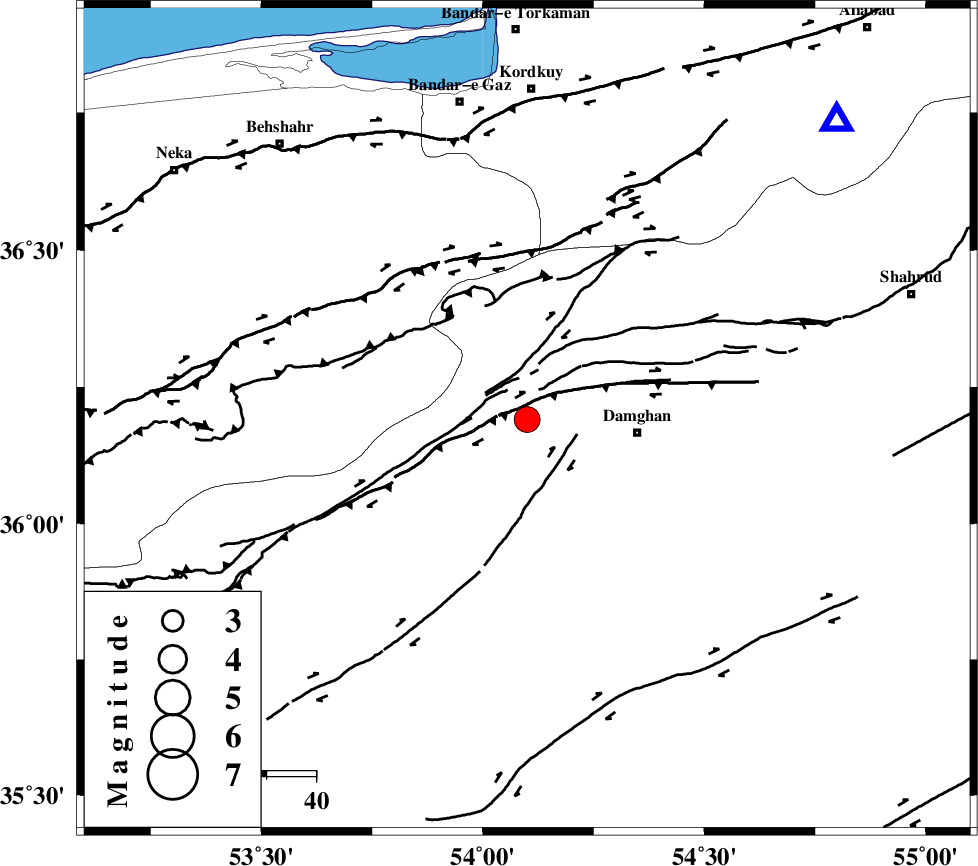

Faults within 150 km: |
|
| DAMGHAN_F (Length: 95 km) , Distance to epicenter: 3 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 10 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 11 km | |
| Number of Phases | 48 |
| RMS | 0.7 |
| Number of Stations | 24 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 143758 | IIEES SC | GLO | Z | 4700 | 1 | 2019-07-04 19:33:54 | 2019-07-07 12:59:00 | n |
| 143759 | IIEES SC | ANJ | Z | 650 | 1 | 2019-07-04 19:34:05 | 2019-07-07 12:59:00 | n |
| 143760 | IIEES SC | SHRO | Z | 390 | 1 | 2019-07-04 19:34:07 | 2019-07-07 12:59:00 | n |
| 143761 | IIEES SC | DAMV | Z | 420 | 1 | 2019-07-04 19:34:44 | 2019-07-07 12:59:00 | n |
| 143762 | IIEES SC | MRVT | Z | 130 | 1 | 2019-07-04 19:34:55 | 2019-07-07 12:59:00 | n |
| 143763 | IIEES SC | CHTH | Z | 150 | 1 | 2019-07-04 19:35:04 | 2019-07-07 12:59:00 | n |
| 143764 | IIEES SC | THKV | Z | 190 | 1 | 2019-07-04 19:35:10 | 2019-07-07 12:59:00 | n |
| 143765 | IIEES SC | SBZV | Z | 47 | 1 | 2019-07-04 19:35:06 | 2019-07-07 12:59:00 | n |
| 143766 | IIEES SC | GHVR | Z | 280 | 1 | 2019-07-04 19:35:14 | 2019-07-07 12:59:00 | n |
| 143767 | IIEES SC | BJRD | Z | 35 | 1 | 2019-07-04 19:35:29 | 2019-07-07 12:59:00 | n |
| 143768 | IIEES SC | GIDE | Z | 330 | 1 | 2019-07-04 19:35:38 | 2019-07-07 12:59:00 | n |
| 143769 | IIEES SC | TABS | Z | 120 | 1 | 2019-07-04 19:35:50 | 2019-07-07 12:59:00 | n |
| 143770 | IIEES SC | ASAO | Z | 78 | 1 | 2019-07-04 19:35:50 | 2019-07-07 12:59:00 | n |
| 143771 | IIEES SC | AKL | Z | 12 | 1 | 2019-07-04 19:35:45 | 2019-07-07 12:59:00 | n |
| 143772 | IIEES SC | YZKH | Z | 54 | 1 | 2019-07-04 19:36:07 | 2019-07-07 12:59:00 | n |
| 143773 | IIEES SC | KHMZ | Z | 74 | 1 | 2019-07-04 19:36:02 | 2019-07-07 12:59:00 | n |
| 143774 | IIEES SC | ZNJK | Z | 25 | 1 | 2019-07-04 19:34:58 | 2019-07-07 12:59:00 | n |
| 143775 | IIEES SC | TBJM | Z | 15 | 1 | 2019-07-04 19:35:36 | 2019-07-07 12:59:00 | n |
| 143776 | IIEES SC | GTMR | Z | 26 | 1 | 2019-07-04 19:37:25 | 2019-07-07 12:59:00 | n |
| 143777 | IIEES SC | KLNJ | Z | 22 | 1 | 2019-07-04 19:36:14 | 2019-07-07 12:59:00 | n |
| 143778 | IIEES SC | GRMI | Z | 18 | 1 | 2019-07-04 19:36:20 | 2019-07-07 12:59:00 | n |
| 143779 | IIEES SC | SNGE | Z | 13 | 1 | 2019-07-04 19:37:11 | 2019-07-07 12:59:00 | n |
| 143780 | IIEES SC | SNGE | Z | 4.3 | 0.72 | 2019-07-04 19:35:25 | 2019-07-07 12:59:00 | n |
| 143781 | IIEES SC | SHRT | Z | 16 | 1 | 2019-07-04 19:36:53 | 2019-07-07 12:59:00 | n |
| 143782 | IIEES SC | BSRN | Z | 17 | 1 | 2019-07-04 19:36:58 | 2019-07-07 12:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GLO | Z | IP | I | 2019-07-04 19:33:45 | -0.2 | y | 44 | 325 | |||
| IIEES SC | ANJ | Z | IP | I | 2019-07-04 19:33:51 | -0.9 | y | 77 | 192 | |||
| IIEES SC | SHRO | N | IP | I | 2019-07-04 19:34:06 | -0.5 | y | 177 | 97 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-07-04 19:34:10 | -0.3 | y | 200 | 252 | |||
| IIEES SC | MRVT | N | IP | I | 2019-07-04 19:34:15 | -0.2 | y | 244 | 47 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-07-04 19:34:21 | 1.5 | y | 266 | 263 | |||
| IIEES SC | THKV | Z | IP | I | 2019-07-04 19:34:24 | 2.2 | y | 289 | 264 | |||
| IIEES SC | SBZV | Z | IP | I | 2019-07-04 19:34:25 | -0.2 | y | 311 | 86 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-07-04 19:34:27 | 1.2 | y | 322 | 234 | |||
| IIEES SC | BJRD | Z | IP | I | 2019-07-04 19:34:29 | 1.2 | y | 344 | 60 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-07-04 19:34:33 | 0.1 | y | 389 | 282 | |||
| IIEES SC | TABS | N | IP | I | 2019-07-04 19:34:36 | 1.3 | y | 389 | 136 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-07-04 19:34:36 | -0.7 | y | 411 | 244 | |||
| IIEES SC | AKL | N | IP | I | 2019-07-04 19:34:38 | 0 | y | 422 | 84 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-07-04 19:34:37 | -1.1 | y | 422 | 174 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-07-04 19:34:44 | 0.4 | y | 467 | 234 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-07-04 19:34:46 | 0.1 | y | 489 | 276 | |||
| IIEES SC | TBJM | N | IP | I | 2019-07-04 19:34:56 | -0.7 | y | 578 | 100 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-07-04 19:35:02 | 0.4 | y | 622 | 228 | |||
| IIEES SC | KLNJ | N | IP | I | 2019-07-04 19:35:04 | 0.9 | y | 622 | 202 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-07-04 19:35:02 | -1 | y | 622 | 298 | |||
| IIEES SC | SNGE | N | IP | I | 2019-07-04 19:35:05 | 1.5 | y | 622 | 259 | |||
| IIEES SC | SHRT | N | IP | I | 2019-07-04 19:35:03 | -0.7 | y | 633 | 117 | |||
| IIEES SC | BSRN | Z | IP | I | 2019-07-04 19:35:07 | -0.3 | y | 656 | 135 | |||
| IIEES SC | GLO | 1933 | 2019-07-04 19:33:54 | y | 44 | 325 | ||||||
| IIEES SC | ANJ | 1933 | 2019-07-04 19:33:58 | y | 77 | 192 | ||||||
| IIEES SC | SHRO | 1934 | 2019-07-04 19:34:25 | y | 177 | 97 | ||||||
| IIEES SC | DAMV | 1935 | 2019-07-04 19:35:09 | y | 200 | 252 | ||||||
| IIEES SC | MRVT | 1934 | 2019-07-04 19:34:51 | y | 244 | 47 | ||||||
| IIEES SC | CHTH | 1935 | 2019-07-04 19:35:14 | y | 266 | 263 | ||||||
| IIEES SC | THKV | 1935 | 2019-07-04 19:35:08 | y | 289 | 264 | ||||||
| IIEES SC | SBZV | 1935 | 2019-07-04 19:35:20 | y | 311 | 86 | ||||||
| IIEES SC | GHVR | 1935 | 2019-07-04 19:35:10 | y | 322 | 234 | ||||||
| IIEES SC | BJRD | 1935 | 2019-07-04 19:35:28 | y | 344 | 60 | ||||||
| IIEES SC | GIDE | 1935 | 2019-07-04 19:35:34 | y | 389 | 282 | ||||||
| IIEES SC | TABS | 1935 | 2019-07-04 19:35:40 | y | 389 | 136 | ||||||
| IIEES SC | ASAO | 1935 | 2019-07-04 19:35:42 | y | 411 | 244 | ||||||
| IIEES SC | AKL | 1935 | 2019-07-04 19:35:53 | y | 422 | 84 | ||||||
| IIEES SC | YZKH | 1936 | 2019-07-04 19:36:08 | y | 422 | 174 | ||||||
| IIEES SC | KHMZ | 1935 | 2019-07-04 19:35:59 | y | 467 | 234 | ||||||
| IIEES SC | ZNJK | 1935 | 2019-07-04 19:35:32 | y | 489 | 276 | ||||||
| IIEES SC | TBJM | 1937 | 2019-07-04 19:37:05 | y | 578 | 100 | ||||||
| IIEES SC | GTMR | 1936 | 2019-07-04 19:36:49 | y | 622 | 228 | ||||||
| IIEES SC | KLNJ | 1936 | 2019-07-04 19:36:36 | y | 622 | 202 | ||||||
| IIEES SC | GRMI | 1936 | 2019-07-04 19:36:09 | y | 622 | 298 | ||||||
| IIEES SC | SNGE | 1935 | 2019-07-04 19:35:11 | y | 622 | 259 | ||||||
| IIEES SC | SHRT | 1936 | 2019-07-04 19:36:54 | y | 633 | 117 | ||||||
| IIEES SC | BSRN | 1937 | 2019-07-04 19:37:01 | y | 656 | 135 | ||||||
