Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2019-07-04 10:31:38.6 |
| Date & Time (Local) | 1398/4/13 15:01:38.6 |

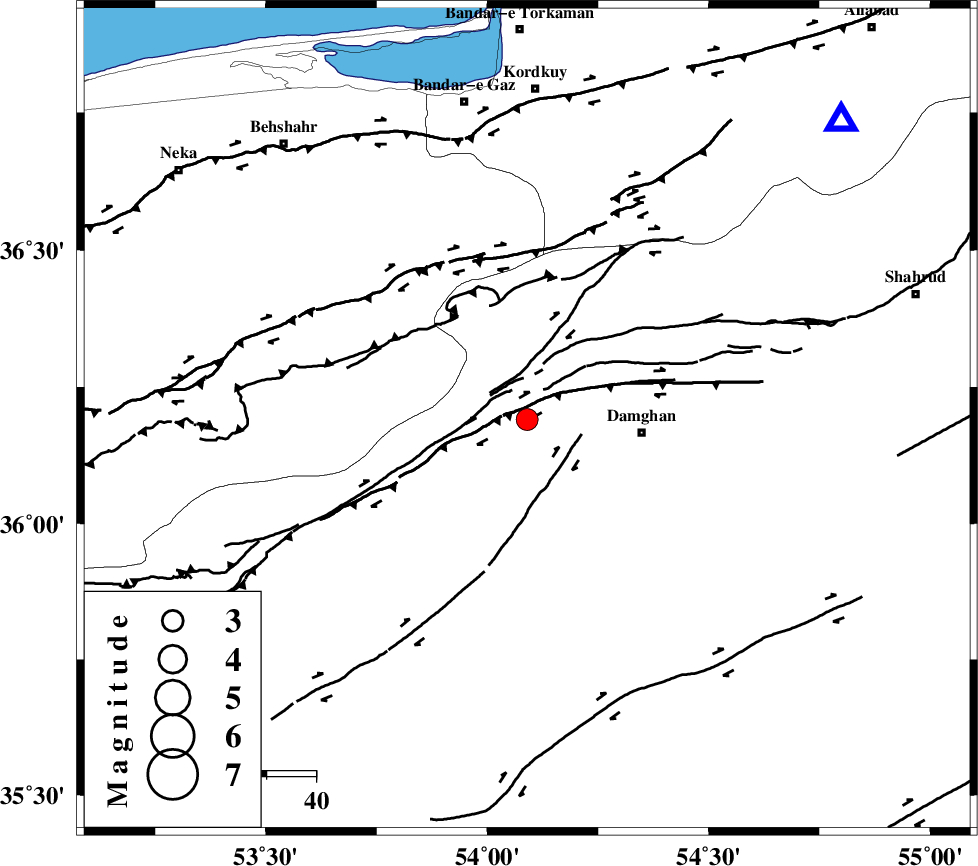

| Location | Lat:36.19 Lon: 54.09 |
| Region | Semnan Province, 23 km -West of Damghan |
Nearest Cities |
|
| 16 km North of Seydabad, Semnan Province | |
| 19 km North of Amirabad, Semnan Province | |
| 23 km North West of Damghan, Semnan Province | |
| 26 km North East of Darvar, Semnan Province | |
| 35 km East of Talma darreh, Mazandaran Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| DAMGHAN_F (Length: 95 km) , Distance to epicenter: 3 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 10 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 11 km | |
| Number of Phases | 30 |
| RMS | 0.6 |
| Number of Stations | 15 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 143783 | IIEES SC | GLO | Z | 3400 | 1 | 2019-07-04 10:31:55 | 2019-07-07 01:06:00 | n |
| 143784 | IIEES SC | ANJ | Z | 260 | 1 | 2019-07-04 10:32:08 | 2019-07-07 01:06:00 | n |
| 143785 | IIEES SC | SHRO | Z | 200 | 1 | 2019-07-04 10:32:08 | 2019-07-07 01:06:00 | n |
| 143786 | IIEES SC | DAMV | Z | 120 | 1 | 2019-07-04 10:32:45 | 2019-07-07 01:06:00 | n |
| 143787 | IIEES SC | MRVT | Z | 78 | 1 | 2019-07-04 10:32:55 | 2019-07-07 01:06:00 | n |
| 143788 | IIEES SC | CHTH | Z | 59 | 1 | 2019-07-04 10:33:05 | 2019-07-07 01:06:00 | n |
| 143789 | IIEES SC | THKV | Z | 92 | 1 | 2019-07-04 10:32:27 | 2019-07-07 01:06:00 | n |
| 143790 | IIEES SC | SBZV | Z | 24 | 1 | 2019-07-04 10:33:16 | 2019-07-07 01:06:00 | n |
| 143791 | IIEES SC | GHVR | Z | 87 | 1 | 2019-07-04 10:33:15 | 2019-07-07 01:06:00 | n |
| 143792 | IIEES SC | BJRD | Z | 19 | 1 | 2019-07-04 10:33:27 | 2019-07-07 01:06:00 | n |
| 143793 | IIEES SC | NASN | Z | 18 | 1 | 2019-07-04 10:33:46 | 2019-07-07 01:06:00 | n |
| 143794 | IIEES SC | TABS | Z | 52 | 1 | 2019-07-04 10:33:35 | 2019-07-07 01:06:00 | n |
| 143795 | IIEES SC | ASAO | Z | 31 | 1 | 2019-07-04 10:33:51 | 2019-07-07 01:06:00 | n |
| 143796 | IIEES SC | YZKH | Z | 18 | 1 | 2019-07-04 10:33:27 | 2019-07-07 01:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GLO | Z | IP | I | 2019-07-04 10:31:46 | -0.3 | y | 44 | 326 | |||
| IIEES SC | ANJ | Z | IP | I | 2019-07-04 10:31:52 | -0.6 | y | 77 | 191 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-07-04 10:32:06 | -0.3 | y | 177 | 96 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-07-04 10:32:12 | 0.9 | y | 200 | 252 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-07-04 10:32:16 | 0.2 | y | 244 | 47 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-07-04 10:32:21 | 1.7 | y | 266 | 263 | |||
| IIEES SC | THKV | Z | IP | I | 2019-07-04 10:32:24 | 1.1 | y | 289 | 264 | |||
| IIEES SC | SBZV | Z | IP | I | 2019-07-04 10:32:26 | 0.1 | y | 322 | 86 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-07-04 10:32:25 | -1.2 | y | 322 | 234 | |||
| IIEES SC | BJRD | N | IP | I | 2019-07-04 10:32:30 | 1.1 | y | 344 | 60 | |||
| IIEES SC | NASN | Z | IP | I | 2019-07-04 10:32:35 | -0.6 | y | 389 | 197 | |||
| IIEES SC | TABS | Z | IP | I | 2019-07-04 10:32:34 | -0.8 | y | 400 | 135 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-07-04 10:32:38 | 0.9 | y | 411 | 244 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-07-04 10:32:39 | 0.4 | y | 422 | 174 | |||
| IIEES SC | TBJM | Z | IP | I | 2019-07-04 10:32:58 | 0 | y | 578 | 100 | |||
| IIEES SC | GLO | 1031 | 2019-07-04 10:31:56 | y | 44 | 326 | ||||||
| IIEES SC | ANJ | 1032 | 2019-07-04 10:32:12 | y | 77 | 191 | ||||||
| IIEES SC | SHRO | 1032 | 2019-07-04 10:32:39 | y | 177 | 96 | ||||||
| IIEES SC | DAMV | 1032 | 2019-07-04 10:32:59 | y | 200 | 252 | ||||||
| IIEES SC | MRVT | 1032 | 2019-07-04 10:32:51 | y | 244 | 47 | ||||||
| IIEES SC | CHTH | 1032 | 2019-07-04 10:32:47 | y | 266 | 263 | ||||||
| IIEES SC | THKV | 1033 | 2019-07-04 10:33:05 | y | 289 | 264 | ||||||
| IIEES SC | SBZV | 1033 | 2019-07-04 10:33:20 | y | 322 | 86 | ||||||
| IIEES SC | GHVR | 1032 | 2019-07-04 10:32:52 | y | 322 | 234 | ||||||
| IIEES SC | BJRD | 1033 | 2019-07-04 10:33:33 | y | 344 | 60 | ||||||
| IIEES SC | NASN | 1033 | 2019-07-04 10:33:16 | y | 389 | 197 | ||||||
| IIEES SC | TABS | 1033 | 2019-07-04 10:33:44 | y | 400 | 135 | ||||||
| IIEES SC | ASAO | 1033 | 2019-07-04 10:33:41 | y | 411 | 244 | ||||||
| IIEES SC | YZKH | 1033 | 2019-07-04 10:33:45 | y | 422 | 174 | ||||||
| IIEES SC | TBJM | 1034 | 2019-07-04 10:34:39 | y | 578 | 100 | ||||||
