Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2019-07-07 16:05:42.2 |
| Date & Time (Local) | 1398/4/16 20:35:42.2 |

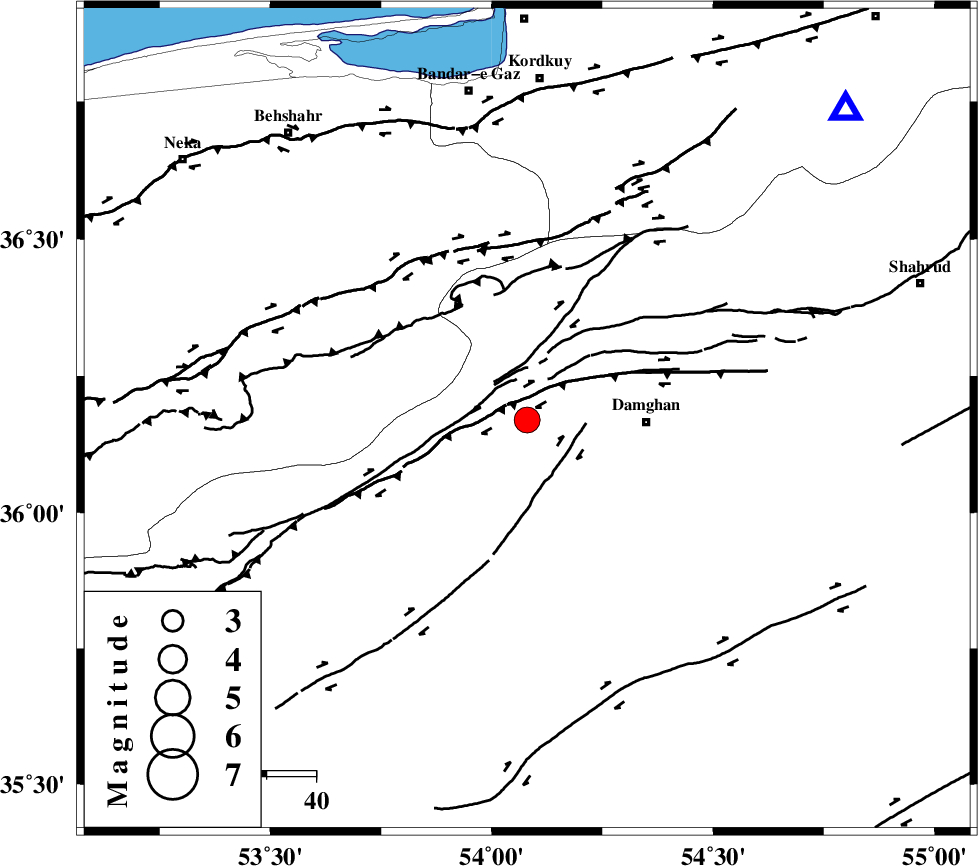

| Location | Lat:36.17 Lon: 54.08 |
| Region | Semnan Province, 24 km -West of Damghan |
Nearest Cities |
|
| 14 km North of Seydabad, Semnan Province | |
| 17 km North of Amirabad, Semnan Province | |
| 24 km North East of Darvar, Semnan Province | |
| 24 km North West of Damghan, Semnan Province | |
| 34 km East of Talma darreh, Mazandaran Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| DAMGHAN_F (Length: 95 km) , Distance to epicenter: 5 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 9 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 11 km | |
| Number of Phases | 45 |
| RMS | 0.6 |
| Number of Stations | 23 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 143863 | IIEES SC | TBJM | Z | 6.3 | 1.08 | 2019-07-07 16:07:22 | 2019-07-08 11:49:00 | n |
| 143864 | IIEES SC | GTMR | Z | 9.2 | 1.03 | 2019-07-07 16:07:30 | 2019-07-08 11:49:00 | n |
| 143865 | IIEES SC | KLNJ | Z | 7.6 | 0.9 | 2019-07-07 16:07:31 | 2019-07-08 11:49:00 | n |
| 143866 | IIEES SC | GRMI | Z | 7.5 | 0.65 | 2019-07-07 16:07:11 | 2019-07-08 11:49:00 | n |
| 143867 | IIEES SC | SHRT | Z | 6.6 | 0.84 | 2019-07-07 16:07:29 | 2019-07-08 11:49:00 | n |
| 143868 | IIEES SC | BSRN | Z | 6.1 | 2.5 | 2019-07-07 16:07:41 | 2019-07-08 11:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GLO | Z | IP | I | 2019-07-07 16:05:49 | -0.3 | y | 44 | 329 | |||
| IIEES SC | ANJ | N | IP | I | 2019-07-07 16:05:55 | -0.6 | y | 77 | 191 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-07-07 16:06:10 | -0.1 | y | 177 | 96 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-07-07 16:06:15 | 0.5 | y | 200 | 252 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-07-07 16:06:20 | 0.2 | y | 244 | 47 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-07-07 16:06:25 | 1.7 | y | 266 | 264 | |||
| IIEES SC | THKV | Z | IP | I | 2019-07-07 16:06:28 | 1.9 | y | 289 | 264 | |||
| IIEES SC | SBZV | N | IP | I | 2019-07-07 16:06:29 | -0.1 | y | 322 | 86 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-07-07 16:06:31 | 1.1 | y | 322 | 234 | |||
| IIEES SC | BJRD | Z | IP | I | 2019-07-07 16:06:33 | 0.7 | y | 344 | 60 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-07-07 16:06:38 | 0.2 | y | 378 | 283 | |||
| IIEES SC | TABS | Z | IP | I | 2019-07-07 16:06:39 | 0.4 | y | 400 | 135 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-07-07 16:06:40 | -1 | y | 411 | 244 | |||
| IIEES SC | AKL | N | IP | I | 2019-07-07 16:06:43 | 0.4 | y | 422 | 84 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-07-07 16:06:43 | 0.2 | y | 422 | 174 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-07-07 16:06:46 | -1 | y | 467 | 234 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-07-07 16:06:50 | 0 | y | 489 | 277 | |||
| IIEES SC | TBJM | Z | IP | I | 2019-07-07 16:07:00 | -0.9 | y | 578 | 100 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-07-07 16:07:07 | 0.7 | y | 611 | 228 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-07-07 16:07:06 | -1.1 | y | 622 | 202 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-07-07 16:07:06 | -0.8 | y | 622 | 298 | |||
| IIEES SC | SHRT | Z | IP | I | 2019-07-07 16:07:08 | -0.4 | y | 633 | 116 | |||
| IIEES SC | BSRN | Z | IP | I | 2019-07-07 16:07:11 | -0.7 | y | 656 | 135 | |||
| IIEES SC | GLO | 16 | 2019-07-07 16:05:58 | y | 44 | 329 | ||||||
| IIEES SC | ANJ | 16 | 2019-07-07 16:06:23 | y | 77 | 191 | ||||||
| IIEES SC | SHRO | 16 | 2019-07-07 16:06:46 | y | 177 | 96 | ||||||
| IIEES SC | DAMV | 16 | 2019-07-07 16:06:47 | y | 200 | 252 | ||||||
| IIEES SC | MRVT | 16 | 2019-07-07 16:06:56 | y | 244 | 47 | ||||||
| IIEES SC | CHTH | 16 | 2019-07-07 16:07:03 | y | 266 | 264 | ||||||
| IIEES SC | THKV | 16 | 2019-07-07 16:07:09 | y | 289 | 264 | ||||||
| IIEES SC | SBZV | 16 | 2019-07-07 16:07:24 | y | 322 | 86 | ||||||
| IIEES SC | GHVR | 16 | 2019-07-07 16:07:15 | y | 322 | 234 | ||||||
| IIEES SC | BJRD | 16 | 2019-07-07 16:07:27 | y | 344 | 60 | ||||||
| IIEES SC | GIDE | 16 | 2019-07-07 16:07:43 | y | 378 | 283 | ||||||
| IIEES SC | TABS | 16 | 2019-07-07 16:07:44 | y | 400 | 135 | ||||||
| IIEES SC | ASAO | 16 | 2019-07-07 16:07:44 | y | 411 | 244 | ||||||
| IIEES SC | AKL | 16 | 2019-07-07 16:08:00 | y | 422 | 84 | ||||||
| IIEES SC | YZKH | 16 | 2019-07-07 16:08:27 | y | 422 | 174 | ||||||
| IIEES SC | KHMZ | 16 | 2019-07-07 16:08:11 | y | 467 | 234 | ||||||
| IIEES SC | ZNJK | 16 | 2019-07-07 16:07:57 | y | 489 | 277 | ||||||
| IIEES SC | GTMR | 16 | 2019-07-07 16:07:31 | y | 611 | 228 | ||||||
| IIEES SC | KLNJ | 16 | 2019-07-07 16:08:17 | y | 622 | 202 | ||||||
| IIEES SC | GRMI | 16 | 2019-07-07 16:08:34 | y | 622 | 298 | ||||||
| IIEES SC | SHRT | 16 | 2019-07-07 16:08:33 | y | 633 | 116 | ||||||
| IIEES SC | BSRN | 16 | 2019-07-07 16:08:35 | y | 656 | 135 | ||||||
