Event Specification
Magnitude |
4.9 |
| Date & Time (UTC) | 2019-07-08 07:26:20.2 |
| Date & Time (Local) | 1398/4/17 11:56:20.2 |

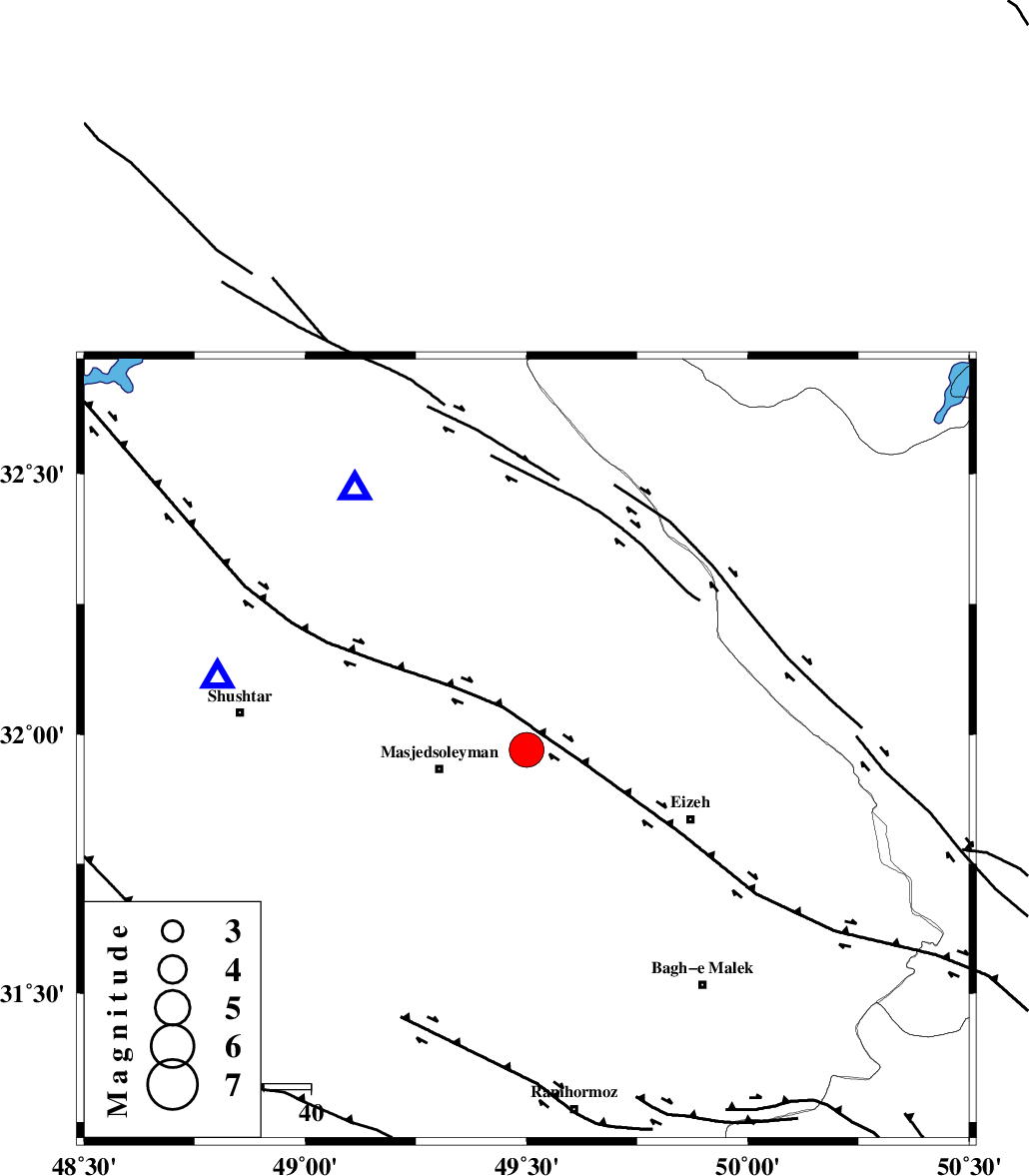

| Location | Lat:31.97 Lon: 49.5 |
| Region | Khoozestan Province, 19 km -East of Masjed Soleyman |
Nearest Cities |
|
| 19 km North East of Masjed Soleyman, Khoozestan Province | |
| 27 km South of Qale-yekhvaju, Khoozestan Province | |
| 31 km West of Torshak, Khoozestan Province | |
| 32 km North West of Rasvand, Khoozestan Province | |
| 33 km North West of Chenarestan, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 17 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 22 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 64 km | |
| Number of Phases | 61 |
| RMS | 1.4 |
| Number of Stations | 35 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 143993 | IIEES SC | GTMR | Z | 29000 | 1 | 2019-07-08 07:26:47 | 2019-07-08 12:21:00 | n |
| 143994 | IIEES SC | KHMZ | Z | 6100 | 1 | 2019-07-08 07:27:32 | 2019-07-08 12:21:00 | n |
| 143995 | IIEES SC | AMR2 | Z | 8900 | 1 | 2019-07-08 07:27:32 | 2019-07-08 12:21:00 | n |
| 143996 | IIEES SC | KLNJ | Z | 5100 | 1 | 2019-07-08 07:27:36 | 2019-07-08 12:21:00 | n |
| 143997 | IIEES SC | ASAO | Z | 2700 | 1 | 2019-07-08 07:28:00 | 2019-07-08 12:21:00 | n |
| 143998 | IIEES SC | GHVR | Z | 2600 | 1 | 2019-07-08 07:28:14 | 2019-07-08 12:21:00 | n |
| 143999 | IIEES SC | NASN | Z | 820 | 1 | 2019-07-08 07:28:43 | 2019-07-08 12:21:00 | n |
| 144000 | IIEES SC | ILBA | Z | 1800 | 1 | 2019-07-08 07:28:21 | 2019-07-08 12:21:00 | n |
| 144001 | IIEES SC | THKV | Z | 800 | 1 | 2019-07-08 07:29:04 | 2019-07-08 12:21:00 | n |
| 144002 | IIEES SC | KGS1 | Z | 2400 | 1 | 2019-07-08 07:28:16 | 2019-07-08 12:21:00 | n |
| 144003 | IIEES SC | CHTH | Z | 460 | 1 | 2019-07-08 07:28:55 | 2019-07-08 12:21:00 | n |
| 144004 | IIEES SC | DAMV | Z | 710 | 1 | 2019-07-08 07:28:51 | 2019-07-08 12:21:00 | n |
| 144005 | IIEES SC | YZKH | Z | 530 | 1 | 2019-07-08 07:28:52 | 2019-07-08 12:21:00 | n |
| 144006 | IIEES SC | ZNJK | Z | 200 | 1 | 2019-07-08 07:29:02 | 2019-07-08 12:21:00 | n |
| 144007 | IIEES SC | GIDE | Z | 2400 | 1 | 2019-07-08 07:29:16 | 2019-07-08 12:21:00 | n |
| 144008 | IIEES SC | ANJ | Z | 150 | 1 | 2019-07-08 07:29:33 | 2019-07-08 12:21:00 | n |
| 144009 | IIEES SC | ANJ | Z | 130 | 0.67 | 2019-07-08 07:28:01 | 2019-07-08 12:21:00 | n |
| 144010 | IIEES SC | SRSL | Z | 400 | 1 | 2019-07-08 07:28:48 | 2019-07-08 12:21:00 | n |
| 144011 | IIEES SC | SRSL | Z | 170 | 0.57 | 2019-07-08 07:27:59 | 2019-07-08 12:21:00 | n |
| 144012 | IIEES SC | LMD1 | Z | 570 | 1 | 2019-07-08 07:28:50 | 2019-07-08 12:21:00 | n |
| 144013 | IIEES SC | LMD1 | Z | 76 | 0.47 | 2019-07-08 07:28:05 | 2019-07-08 12:21:00 | n |
| 144014 | IIEES SC | MAHB | Z | 310 | 1 | 2019-07-08 07:29:04 | 2019-07-08 12:21:00 | n |
| 144015 | IIEES SC | MAHB | Z | 110 | 0.74 | 2019-07-08 07:27:59 | 2019-07-08 12:21:00 | n |
| 144016 | IIEES SC | GLO | Z | 610 | 1 | 2019-07-08 07:28:27 | 2019-07-08 12:21:00 | n |
| 144017 | IIEES SC | GLO | Z | 370 | 0.75 | 2019-07-08 07:28:15 | 2019-07-08 12:21:00 | n |
| 144018 | IIEES SC | AZR | Z | 270 | 1 | 2019-07-08 07:29:54 | 2019-07-08 12:21:00 | n |
| 144019 | IIEES SC | AZR | Z | 110 | 0.67 | 2019-07-08 07:28:25 | 2019-07-08 12:21:00 | n |
| 144020 | IIEES SC | KRBR | Z | 160 | 1 | 2019-07-08 07:27:58 | 2019-07-08 12:21:00 | n |
| 144021 | IIEES SC | KRBR | Z | 130 | 0.64 | 2019-07-08 07:27:58 | 2019-07-08 12:21:00 | n |
| 144022 | IIEES SC | TABS | Z | 280 | 1 | 2019-07-08 07:30:25 | 2019-07-08 12:21:00 | n |
| 144023 | IIEES SC | TABS | Z | 170 | 0.68 | 2019-07-08 07:28:00 | 2019-07-08 12:21:00 | n |
| 144024 | IIEES SC | SHRO | Z | 150 | 1 | 2019-07-08 07:28:03 | 2019-07-08 12:21:00 | n |
| 144025 | IIEES SC | SHRO | Z | 140 | 0.8 | 2019-07-08 07:28:03 | 2019-07-08 12:21:00 | n |
| 144026 | IIEES SC | GRMI | Z | 59 | 1 | 2019-07-08 07:30:19 | 2019-07-08 12:21:00 | n |
| 144027 | IIEES SC | GRMI | Z | 17 | 0.68 | 2019-07-08 07:28:25 | 2019-07-08 12:21:00 | n |
| 144028 | IIEES SC | BNDS | Z | 150 | 1 | 2019-07-08 07:28:08 | 2019-07-08 12:21:00 | n |
| 144029 | IIEES SC | BNDS | Z | 100 | 0.71 | 2019-07-08 07:28:15 | 2019-07-08 12:21:00 | n |
| 144030 | IIEES SC | MRVT | Z | 33 | 1 | 2019-07-08 07:28:37 | 2019-07-08 12:21:00 | n |
| 144031 | IIEES SC | MRVT | Z | 16 | 0.7 | 2019-07-08 07:28:34 | 2019-07-08 12:21:00 | n |
| 144032 | IIEES SC | SBZV | Z | 64 | 0.71 | 2019-07-08 07:28:20 | 2019-07-08 12:21:00 | n |
| 144033 | IIEES SC | BSRN | Z | 18 | 0.7 | 2019-07-08 07:28:50 | 2019-07-08 12:21:00 | n |
| 144034 | IIEES SC | BJRD | Z | 24 | 0.73 | 2019-07-08 07:28:34 | 2019-07-08 12:21:00 | n |
| 144035 | IIEES SC | AKL | Z | 15 | 0.86 | 2019-07-08 07:28:46 | 2019-07-08 12:21:00 | n |
| 144036 | IIEES SC | RAYN | Z | 86 | 0.57 | 2019-07-08 07:28:29 | 2019-07-08 12:21:00 | n |
| 144037 | IIEES SC | SHRT | Z | 35 | 0.91 | 2019-07-08 07:28:37 | 2019-07-08 12:21:00 | n |
| 144038 | IIEES SC | TBJM | Z | 25 | 0.99 | 2019-07-08 07:28:59 | 2019-07-08 12:21:00 | n |
| 144039 | IIEES SC | ZHSF | Z | 9.7 | 1.09 | 2019-07-08 07:29:09 | 2019-07-08 12:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2019-07-08 07:26:32 | 1 | y | 66 | 327 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-07-08 07:26:55 | 2.5 | y | 200 | 13 | |||
| IIEES SC | AMR2 | Z | IP | I | 2019-07-08 07:26:54 | -0.2 | y | 222 | 271 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-07-08 07:26:55 | -0.4 | y | 222 | 118 | |||
| IIEES SC | ASAO | N | IP | I | 2019-07-08 07:27:06 | 2.4 | y | 289 | 10 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-07-08 07:27:11 | 3.2 | y | 322 | 30 | |||
| IIEES SC | NASN | Z | IP | I | 2019-07-08 07:27:46 | 37.5 | y | 322 | 73 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-07-08 07:27:11 | -0.8 | y | 355 | 301 | |||
| IIEES SC | THKV | N | IP | I | 2019-07-08 07:27:26 | 1.9 | y | 455 | 16 | |||
| IIEES SC | KGS1 | Z | IP | I | 2019-07-08 07:27:24 | -0.6 | y | 455 | 308 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-07-08 07:27:27 | 1.5 | y | 467 | 19 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-07-08 07:27:27 | 1.6 | y | 467 | 29 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-07-08 07:27:27 | -0.5 | y | 478 | 84 | |||
| IIEES SC | ZNJK | N | IP | I | 2019-07-08 07:27:34 | 0.5 | y | 522 | 352 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-07-08 07:27:37 | 1.1 | y | 556 | 4 | |||
| IIEES SC | ANJ | Z | IP | I | 2019-07-08 07:27:38 | 0.3 | y | 567 | 47 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-07-08 07:27:42 | -0.1 | y | 600 | 321 | |||
| IIEES SC | LMD1 | Z | IP | I | 2019-07-08 07:27:43 | -1.4 | y | 622 | 145 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-07-08 07:27:47 | 0.2 | y | 633 | 327 | |||
| IIEES SC | GLO | Z | IP | I | 2019-07-08 07:27:50 | 2.3 | y | 644 | 38 | |||
| IIEES SC | AZR | Z | IP | I | 2019-07-08 07:27:56 | -0.3 | y | 711 | 333 | |||
| IIEES SC | KRBR | N | IP | I | 2019-07-08 07:27:56 | -1.9 | y | 722 | 108 | |||
| IIEES SC | TABS | Z | IP | I | 2019-07-08 07:28:00 | 0.4 | y | 733 | 75 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-07-08 07:28:02 | 0.8 | y | 756 | 53 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-07-08 07:28:03 | -0.2 | y | 778 | 349 | |||
| IIEES SC | BNDS | Z | IP | I | 2019-07-08 07:28:05 | -5 | y | 822 | 128 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-07-08 07:28:16 | 0 | y | 878 | 44 | |||
| IIEES SC | SBZV | Z | IP | I | 2019-07-08 07:28:19 | 0.5 | y | 889 | 57 | |||
| IIEES SC | BSRN | N | IP | I | 2019-07-08 07:28:20 | -0.7 | y | 911 | 90 | |||
| IIEES SC | BJRD | E | IP | I | 2019-07-08 07:28:28 | 1.2 | y | 967 | 49 | |||
| IIEES SC | AKL | Z | IP | I | 2019-07-08 07:28:33 | 1.4 | y | 1000 | 59 | |||
| IIEES SC | RAYN | Z | IP | I | 2019-07-08 07:28:27 | -6.6 | y | 1011 | 203 | |||
| IIEES SC | SHRT | Z | IP | I | 2019-07-08 07:28:36 | 0.8 | y | 1034 | 80 | |||
| IIEES SC | TBJM | N | IP | I | 2019-07-08 07:28:41 | 0.6 | y | 1067 | 70 | |||
| IIEES SC | ZHSF | Z | IP | I | 2019-07-08 07:28:45 | -0.7 | y | 1112 | 104 | |||
| IIEES SC | GTMR | 726 | 2019-07-08 07:26:46 | y | 66 | 327 | ||||||
| IIEES SC | KHMZ | 727 | 2019-07-08 07:27:24 | y | 200 | 13 | ||||||
| IIEES SC | AMR2 | 727 | 2019-07-08 07:27:27 | y | 222 | 271 | ||||||
| IIEES SC | KLNJ | 727 | 2019-07-08 07:27:32 | y | 222 | 118 | ||||||
| IIEES SC | ASAO | 727 | 2019-07-08 07:27:58 | y | 289 | 10 | ||||||
| IIEES SC | GHVR | 727 | 2019-07-08 07:27:54 | y | 322 | 30 | ||||||
| IIEES SC | NASN | 728 | 2019-07-08 07:28:35 | y | 322 | 73 | ||||||
| IIEES SC | ILBA | 729 | 2019-07-08 07:29:00 | y | 355 | 301 | ||||||
| IIEES SC | THKV | 728 | 2019-07-08 07:28:47 | y | 455 | 16 | ||||||
| IIEES SC | KGS1 | 728 | 2019-07-08 07:28:21 | y | 455 | 308 | ||||||
| IIEES SC | CHTH | 728 | 2019-07-08 07:28:54 | y | 467 | 19 | ||||||
| IIEES SC | DAMV | 728 | 2019-07-08 07:28:09 | y | 467 | 29 | ||||||
| IIEES SC | YZKH | 728 | 2019-07-08 07:28:21 | y | 478 | 84 | ||||||
| IIEES SC | ZNJK | 729 | 2019-07-08 07:29:04 | y | 522 | 352 | ||||||
| IIEES SC | GIDE | 729 | 2019-07-08 07:29:15 | y | 556 | 4 | ||||||
| IIEES SC | ANJ | 728 | 2019-07-08 07:28:41 | y | 567 | 47 | ||||||
| IIEES SC | SRSL | 728 | 2019-07-08 07:28:53 | y | 600 | 321 | ||||||
| IIEES SC | LMD1 | 728 | 2019-07-08 07:28:53 | y | 622 | 145 | ||||||
| IIEES SC | MAHB | 729 | 2019-07-08 07:29:03 | y | 633 | 327 | ||||||
| IIEES SC | GLO | 729 | 2019-07-08 07:29:49 | y | 644 | 38 | ||||||
| IIEES SC | KRBR | 729 | 2019-07-08 07:29:44 | y | 722 | 108 | ||||||
| IIEES SC | TABS | 730 | 2019-07-08 07:30:19 | y | 733 | 75 | ||||||
| IIEES SC | SHRO | 730 | 2019-07-08 07:30:26 | y | 756 | 53 | ||||||
| IIEES SC | GRMI | 730 | 2019-07-08 07:30:33 | y | 778 | 349 | ||||||
| IIEES SC | BNDS | 729 | 2019-07-08 07:29:44 | y | 822 | 128 | ||||||
| IIEES SC | MRVT | 729 | 2019-07-08 07:29:12 | y | 878 | 44 | ||||||
