Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2019-07-12 23:58:27.9 |
| Date & Time (Local) | 1398/4/22 04:28:27.9 |

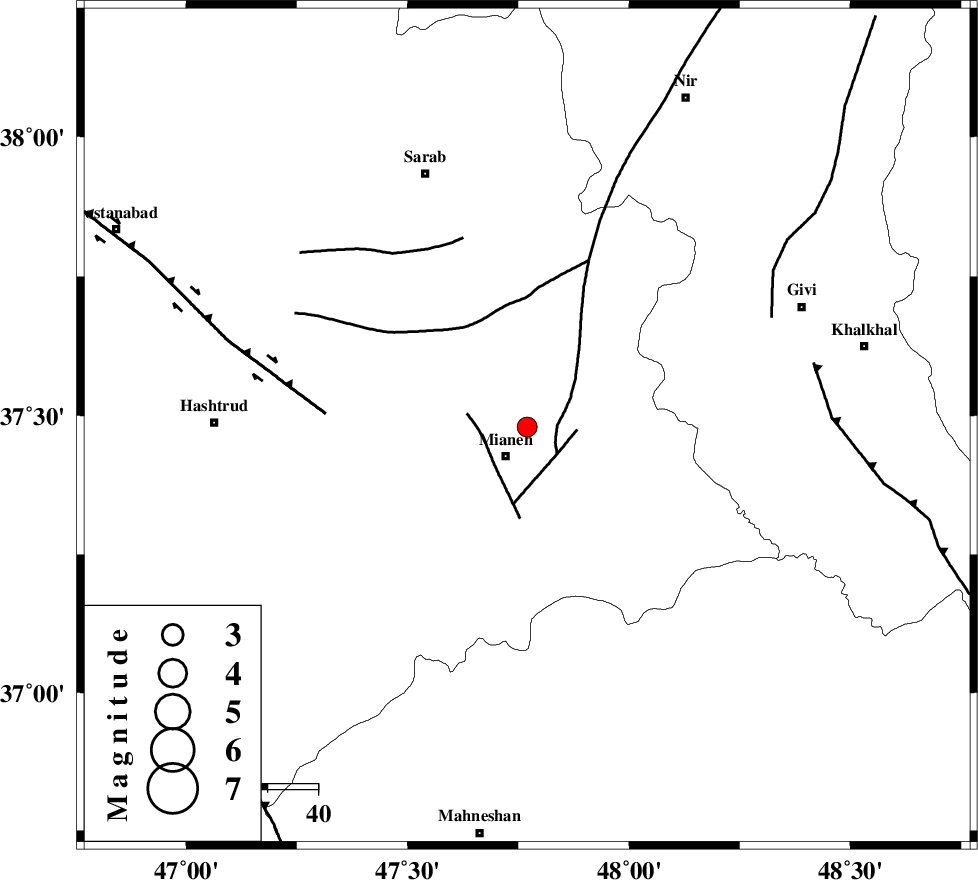

| Location | Lat:37.48 Lon: 47.77 |
| Region | Azarbaijan Sharghi Province, 7 km of Mianeh |
Nearest Cities |
|
| 7 km North of Gondoghdi, Azarbaijan Sharghi Province | |
| 7 km North of Mianeh, Azarbaijan Sharghi Province | |
| 10 km North of Achachi, Azarbaijan Sharghi Province | |
| 15 km South of Tark, Azarbaijan Sharghi Province | |
| 20 km North East of Sheikhdarabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 8 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 40 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 53 km | |
| Number of Phases | 18 |
| RMS | 0.7 |
| Number of Stations | 9 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 11 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144099 | IIEES SC | ZNJK | Z | 84 | 1 | 2019-07-12 23:59:06 | 2019-07-13 08:27:00 | n |
| 144100 | IIEES SC | GRMI | Z | 38 | 1 | 2019-07-12 23:58:56 | 2019-07-13 08:27:00 | n |
| 144101 | IIEES SC | AZR | Z | 170 | 1 | 2019-07-12 23:59:22 | 2019-07-13 08:27:00 | n |
| 144102 | IIEES SC | MAHB | Z | 45 | 1 | 2019-07-12 23:59:32 | 2019-07-13 08:27:00 | n |
| 144103 | IIEES SC | GIDE | Z | 220 | 1 | 2019-07-12 23:59:27 | 2019-07-13 08:27:00 | n |
| 144104 | IIEES SC | SRSL | Z | 14 | 1 | 2019-07-12 23:59:09 | 2019-07-13 08:27:00 | n |
| 144105 | IIEES SC | SNGE | Z | 11 | 1 | 2019-07-12 23:59:42 | 2019-07-13 08:27:00 | n |
| 144106 | IIEES SC | THKV | Z | 26 | 1 | 2019-07-13 00:00:01 | 2019-07-13 08:27:00 | n |
| 144107 | IIEES SC | CHTH | Z | 19 | 1 | 2019-07-13 00:00:08 | 2019-07-13 08:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ZNJK | Z | IP | I | 2019-07-12 23:58:46 | -2.2 | y | 122 | 138 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-07-12 23:58:52 | 0.2 | y | 144 | 4 | |||
| IIEES SC | AZR | N | IP | I | 2019-07-12 23:58:53 | -0.2 | y | 155 | 278 | |||
| IIEES SC | MAHB | N | IP | I | 2019-07-12 23:58:59 | -0.6 | y | 200 | 247 | |||
| IIEES SC | GIDE | N | IP | I | 2019-07-12 23:59:00 | -0.4 | y | 200 | 108 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-07-12 23:59:07 | 0.1 | y | 255 | 236 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-07-12 23:59:10 | 1 | y | 266 | 188 | |||
| IIEES SC | THKV | Z | IP | I | 2019-07-12 23:59:15 | -1 | y | 322 | 122 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-07-12 23:59:20 | 1 | y | 344 | 120 | |||
| IIEES SC | ZNJK | 2359 | 2019-07-12 23:59:06 | y | 122 | 138 | ||||||
| IIEES SC | GRMI | 2359 | 2019-07-12 23:59:18 | y | 144 | 4 | ||||||
| IIEES SC | AZR | 2359 | 2019-07-12 23:59:18 | y | 155 | 278 | ||||||
| IIEES SC | MAHB | 2359 | 2019-07-12 23:59:23 | y | 200 | 247 | ||||||
| IIEES SC | GIDE | 2359 | 2019-07-12 23:59:28 | y | 200 | 108 | ||||||
| IIEES SC | SRSL | 2359 | 2019-07-12 23:59:47 | y | 255 | 236 | ||||||
| IIEES SC | SNGE | 2359 | 2019-07-12 23:59:46 | y | 266 | 188 | ||||||
| IIEES SC | THKV | 24 | 2019-07-13 00:00:02 | y | 322 | 122 | ||||||
| IIEES SC | CHTH | 2359 | 2019-07-12 23:59:42 | y | 344 | 120 | ||||||
