Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2019-07-19 14:03:12.9 |
| Date & Time (Local) | 1398/4/28 18:33:12.9 |

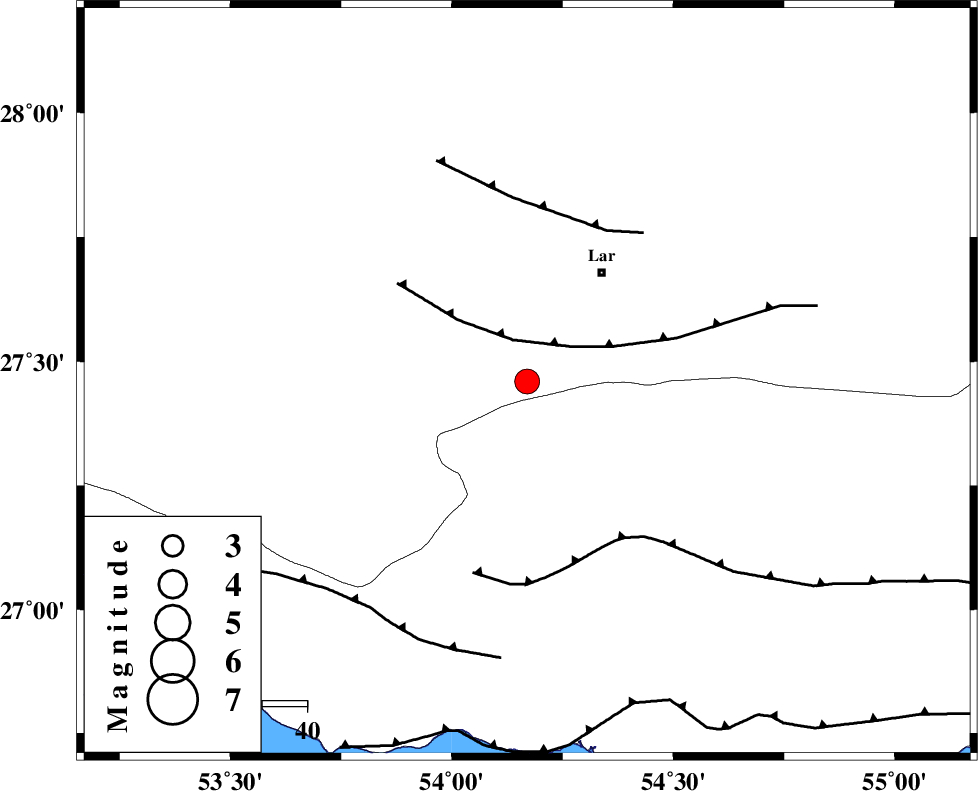

| Location | Lat:27.46 Lon: 54.17 |
| Region | Fars Province, 30 km South-West of Lar |
Nearest Cities |
|
| 14 km East of Bagh, Fars Province | |
| 21 km South of Grash, Fars Province | |
| 30 km South West of Lar, Fars Province | |
| 34 km South West of Latifi, Fars Province | |
| 35 km North West of Bastak, Hormozgan Province | |
| Depth | 20 km |
| Agency | |
Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 10 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 38 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 41 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >0 km |
| Error in Longitude | 0 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144374 | IIEES SC | LMD1 | Z | 11000 | 1 | 2019-07-19 14:03:53 | 2019-07-20 09:32:00 | n |
| 144375 | IIEES SC | GHIR | Z | 660 | 1 | 2019-07-19 14:03:56 | 2019-07-20 09:32:00 | n |
| 144376 | IIEES SC | BNDS | Z | 70 | 1 | 2019-07-19 14:05:02 | 2019-07-20 09:32:00 | n |
| 144377 | IIEES SC | AHRM | Z | 110 | 1 | 2019-07-19 14:04:42 | 2019-07-20 09:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | Z | IP | I | 2019-07-19 14:03:29 | 0 | y | 100 | 262 | |||
| IIEES SC | GHIR | N | IP | I | 2019-07-19 14:03:37 | -0.1 | y | 144 | 308 | |||
| IIEES SC | BNDS | N | IP | I | 2019-07-19 14:03:44 | 0 | y | 200 | 92 | |||
| IIEES SC | AHRM | Z | IP | I | 2019-07-19 14:04:00 | 0.1 | y | 322 | 299 | |||
