Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2019-07-22 23:20:39.9 |
| Date & Time (Local) | 1398/5/1 03:50:39.9 |

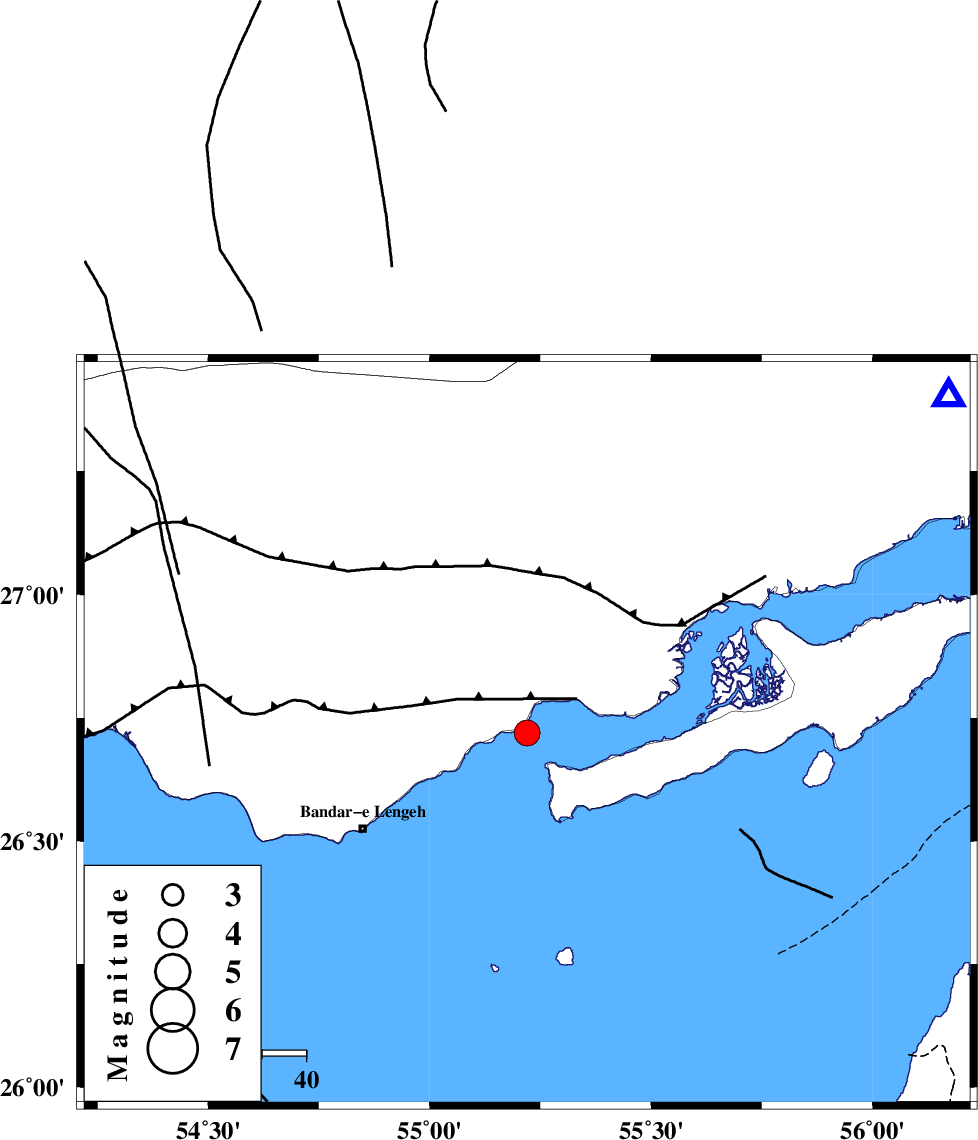

| Location | Lat:26.72 Lon: 55.22 |
| Region | Persian Gulf, 43 km North-East of Bandar-e lengeh |
Nearest Cities |
|
| 43 km North East of Bandar-e lengeh, Hormozgan Province | |
| 45 km South West of Bandar-e khamir, Hormozgan Province | |
| 83 km West of Suza, Hormozgan Province | |
| 96 km North East of Abu Musa, Hormozgan Province | |
| 99 km South East of Jenah, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 14 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 35 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 107 km | |
| Number of Phases | 14 |
| RMS | 2.3 |
| Number of Stations | 7 |
| Error in Latitude | >9 km |
| Error in Longitude | 0 km |
| Error in Depth | 68 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144515 | IIEES SC | BNDS | Z | 900 | 1 | 2019-07-22 23:21:20 | 2019-07-23 08:53:00 | n |
| 144516 | IIEES SC | LMD1 | Z | 300 | 1 | 2019-07-22 23:21:51 | 2019-07-23 08:53:00 | n |
| 144517 | IIEES SC | GHIR | Z | 44 | 1 | 2019-07-22 23:22:27 | 2019-07-23 08:53:00 | n |
| 144518 | IIEES SC | KRBR | Z | 57 | 1 | 2019-07-22 23:22:53 | 2019-07-23 08:53:00 | n |
| 144519 | IIEES SC | YZKH | Z | 16 | 1 | 2019-07-22 23:24:03 | 2019-07-23 08:53:00 | n |
| 144520 | IIEES SC | YZKH | Z | 5.7 | 0.83 | 2019-07-22 23:22:06 | 2019-07-23 08:53:00 | n |
| 144521 | IIEES SC | ZHSF | Z | 16 | 1 | 2019-07-22 23:23:54 | 2019-07-23 08:53:00 | n |
| 144522 | IIEES SC | ZHSF | Z | 4 | 0.7 | 2019-07-22 23:22:23 | 2019-07-23 08:53:00 | n |
| 144523 | IIEES SC | BSRN | Z | 15 | 1 | 2019-07-22 23:24:36 | 2019-07-23 08:53:00 | n |
| 144524 | IIEES SC | BSRN | Z | 8.4 | 1.2 | 2019-07-22 23:22:41 | 2019-07-23 08:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | Z | IP | I | 2019-07-22 23:21:00 | -0.1 | y | 122 | 51 | |||
| IIEES SC | LMD1 | Z | IP | I | 2019-07-22 23:21:14 | -0.2 | y | 211 | 289 | |||
| IIEES SC | GHIR | Z | IP | I | 2019-07-22 23:21:22 | 0 | y | 278 | 308 | |||
| IIEES SC | KRBR | Z | IP | I | 2019-07-22 23:21:36 | -0.2 | y | 389 | 23 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-07-22 23:22:03 | -2.4 | y | 633 | 354 | |||
| IIEES SC | ZHSF | N | IP | I | 2019-07-22 23:22:05 | -0.7 | y | 633 | 60 | |||
| IIEES SC | BSRN | Z | IP | I | 2019-07-22 23:22:15 | 1.4 | y | 700 | 33 | |||
| IIEES SC | BNDS | 2321 | 2019-07-22 23:21:21 | y | 122 | 51 | ||||||
| IIEES SC | LMD1 | 2321 | 2019-07-22 23:21:46 | y | 211 | 289 | ||||||
| IIEES SC | GHIR | 2322 | 2019-07-22 23:22:29 | y | 278 | 308 | ||||||
| IIEES SC | KRBR | 2322 | 2019-07-22 23:22:49 | y | 389 | 23 | ||||||
| IIEES SC | YZKH | 2323 | 2019-07-22 23:23:13 | y | 633 | 354 | ||||||
| IIEES SC | ZHSF | 2323 | 2019-07-22 23:23:55 | y | 633 | 60 | ||||||
| IIEES SC | BSRN | 2324 | 2019-07-22 23:24:24 | y | 700 | 33 | ||||||
