Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2019-07-24 23:28:13.4 |
| Date & Time (Local) | 1398/5/3 03:58:13.4 |
| Location | Lat:35.47 Lon: 52.21 |
| Region | Tehran Province, 30 km North-West of Garmsar |
Nearest Cities |
|
| 9 km of Kilan, Tehran Province | |
| 17 km South of Mara, Tehran Province | |
| 20 km North East of Evanekay, Semnan Province | |
| 21 km South of Sarbandan, Tehran Province | |
| 27 km South East of Ab sard, Tehran Province | |
| Depth | 12 km |
| Agency | |

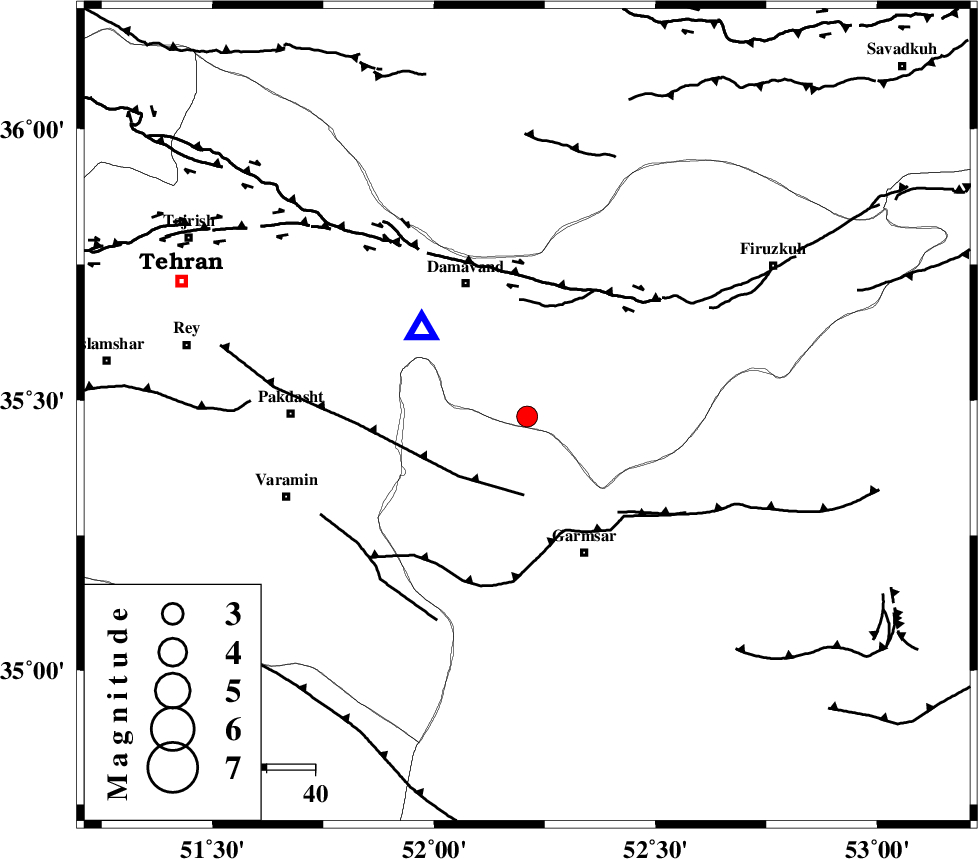

Faults within 150 km: |
|
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 16 km | |
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 25 km | |
| MOSHA_F (Length: 234 km) , Distance to epicenter: 28 km | |
| Number of Phases | 22 |
| RMS | 0.9 |
| Number of Stations | 11 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 21 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144587 | IIEES SC | CHTH | Z | 310 | 1 | 2019-07-24 23:28:45 | 2019-07-27 08:50:00 | n |
| 144588 | IIEES SC | THKV | Z | 500 | 1 | 2019-07-24 23:28:58 | 2019-07-27 08:50:00 | n |
| 144589 | IIEES SC | GLO | Z | 280 | 1 | 2019-07-24 23:29:16 | 2019-07-27 08:50:00 | n |
| 144590 | IIEES SC | ASAO | Z | 150 | 1 | 2019-07-24 23:29:34 | 2019-07-27 08:50:00 | n |
| 144591 | IIEES SC | GIDE | Z | 620 | 1 | 2019-07-24 23:29:43 | 2019-07-27 08:50:00 | n |
| 144592 | IIEES SC | KHMZ | Z | 90 | 1 | 2019-07-24 23:29:48 | 2019-07-27 08:50:00 | n |
| 144593 | IIEES SC | ZNJK | Z | 48 | 1 | 2019-07-24 23:29:53 | 2019-07-27 08:50:00 | n |
| 144594 | IIEES SC | SHRO | Z | 40 | 1 | 2019-07-24 23:30:09 | 2019-07-27 08:50:00 | n |
| 144595 | IIEES SC | YZKH | Z | 48 | 1 | 2019-07-24 23:30:26 | 2019-07-27 08:50:00 | n |
| 144596 | IIEES SC | MRVT | Z | 12 | 1 | 2019-07-24 23:30:45 | 2019-07-27 08:50:00 | n |
| 144597 | IIEES SC | GTMR | Z | 24 | 1 | 2019-07-24 23:30:26 | 2019-07-27 08:50:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | CHTH | Z | IP | I | 2019-07-24 23:28:30 | -1.3 | y | 111 | 297 | |||
| IIEES SC | THKV | Z | IP | I | 2019-07-24 23:28:34 | -0.6 | y | 133 | 293 | |||
| IIEES SC | GLO | Z | IP | I | 2019-07-24 23:28:44 | 0.4 | y | 189 | 52 | |||
| IIEES SC | ASAO | N | IP | I | 2019-07-24 23:28:48 | -0.5 | y | 222 | 243 | |||
| IIEES SC | GIDE | N | IP | I | 2019-07-24 23:28:55 | 1.6 | y | 266 | 308 | |||
| IIEES SC | KHMZ | N | IP | I | 2019-07-24 23:28:57 | 0.7 | y | 278 | 227 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-07-24 23:29:04 | -0.1 | y | 344 | 293 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-07-24 23:29:03 | -1.8 | y | 344 | 80 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-07-24 23:29:11 | -0.2 | y | 411 | 147 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-07-24 23:29:15 | 1.1 | y | 422 | 55 | |||
| IIEES SC | GTMR | N | IP | I | 2019-07-24 23:29:17 | 1.2 | y | 433 | 221 | |||
| IIEES SC | CHTH | 2328 | 2019-07-24 23:28:45 | y | 111 | 297 | ||||||
| IIEES SC | THKV | 2328 | 2019-07-24 23:28:53 | y | 133 | 293 | ||||||
| IIEES SC | GLO | 2329 | 2019-07-24 23:29:32 | y | 189 | 52 | ||||||
| IIEES SC | ASAO | 2329 | 2019-07-24 23:29:19 | y | 222 | 243 | ||||||
| IIEES SC | GIDE | 2329 | 2019-07-24 23:29:21 | y | 266 | 308 | ||||||
| IIEES SC | KHMZ | 2329 | 2019-07-24 23:29:38 | y | 278 | 227 | ||||||
| IIEES SC | ZNJK | 2330 | 2019-07-24 23:30:05 | y | 344 | 293 | ||||||
| IIEES SC | SHRO | 2329 | 2019-07-24 23:29:44 | y | 344 | 80 | ||||||
| IIEES SC | YZKH | 2330 | 2019-07-24 23:30:10 | y | 411 | 147 | ||||||
| IIEES SC | MRVT | 2330 | 2019-07-24 23:30:22 | y | 422 | 55 | ||||||
| IIEES SC | GTMR | 2330 | 2019-07-24 23:30:53 | y | 433 | 221 | ||||||
