Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2019-07-28 19:11:16.1 |
| Date & Time (Local) | 1398/5/6 23:41:16.1 |

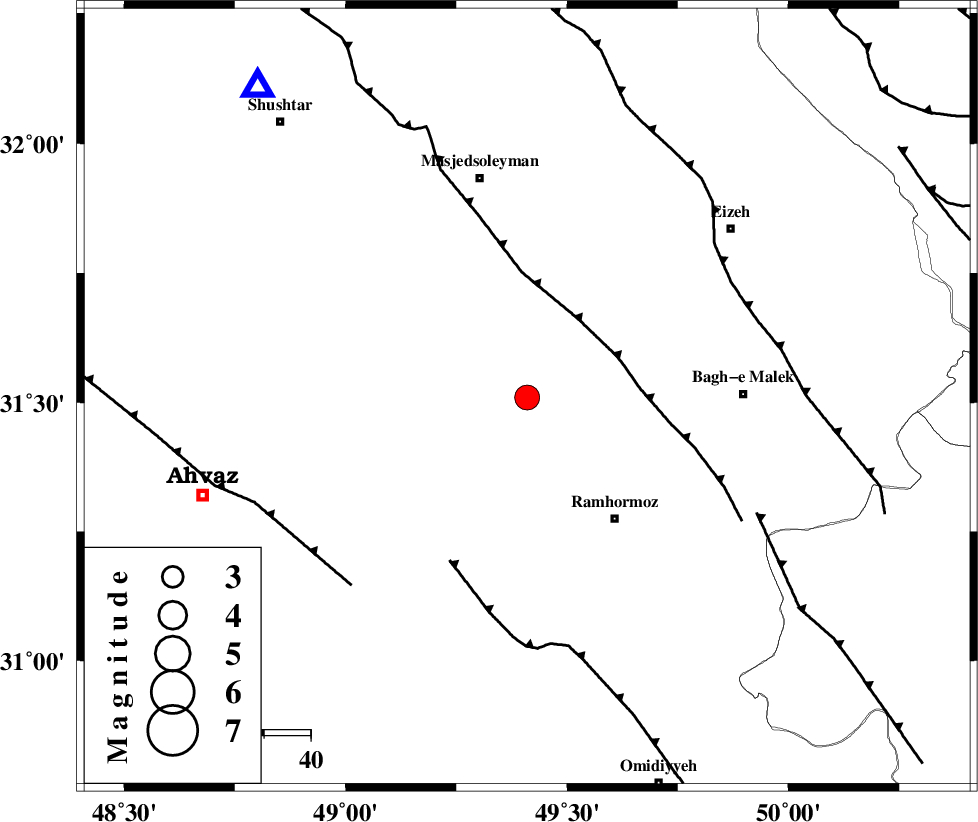

| Location | Lat:31.51 Lon: 49.41 |
| Region | Khoozestan Province, 32 km North-West of Ramhormoz |
Nearest Cities |
|
| 6 km of Gazin, Khoozestan Province | |
| 13 km North West of Haftgol, Khoozestan Province | |
| 14 km West of Jaru, Khoozestan Province | |
| 27 km North of Marbacheh, Khoozestan Province | |
| 29 km North West of Midavood-e sofla, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 20 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 39 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 50 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144629 | IIEES SC | GTMR | Z | 1100 | 1 | 2019-07-28 19:11:53 | 2019-07-29 10:55:00 | n |
| 144630 | IIEES SC | KHMZ | Z | 320 | 1 | 2019-07-28 19:12:27 | 2019-07-29 10:55:00 | n |
| 144631 | IIEES SC | ASAO | Z | 190 | 1 | 2019-07-28 19:13:01 | 2019-07-29 10:55:00 | n |
| 144632 | IIEES SC | GHVR | Z | 140 | 1 | 2019-07-28 19:13:07 | 2019-07-29 10:55:00 | n |
| 144633 | IIEES SC | ILBA | Z | 70 | 1 | 2019-07-28 19:13:30 | 2019-07-29 10:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2019-07-28 19:11:34 | -0.3 | y | 111 | 345 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-07-28 19:11:50 | -0.1 | y | 211 | 105 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-07-28 19:11:55 | -0.2 | y | 255 | 12 | |||
| IIEES SC | ASAO | N | IP | I | 2019-07-28 19:12:06 | 0.3 | y | 344 | 10 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-07-28 19:12:10 | 0.2 | y | 366 | 28 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-07-28 19:12:11 | 0.1 | y | 378 | 308 | |||
| IIEES SC | GTMR | 1911 | 2019-07-28 19:11:53 | y | 111 | 345 | ||||||
| IIEES SC | KHMZ | 1912 | 2019-07-28 19:12:30 | y | 255 | 12 | ||||||
| IIEES SC | ASAO | 1913 | 2019-07-28 19:13:00 | y | 344 | 10 | ||||||
| IIEES SC | GHVR | 1913 | 2019-07-28 19:13:12 | y | 366 | 28 | ||||||
| IIEES SC | ILBA | 1913 | 2019-07-28 19:13:36 | y | 378 | 308 | ||||||
