Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2019-08-13 07:29:08.0 |
| Date & Time (Local) | 1398/5/22 11:59:08.0 |
| Location | Lat:35.67 Lon: 52.35 |
| Region | Tehran Province, 26 km -East of Damavand |
Nearest Cities |
|
| 5 km North of Sarbandan, Tehran Province | |
| 20 km North East of Mara, Tehran Province | |
| 22 km North East of Kilan, Tehran Province | |
| 22 km South West of Arjomand, Tehran Province | |
| 26 km East of Damavand, Tehran Province | |
| Depth | 14 km |
| Agency | |

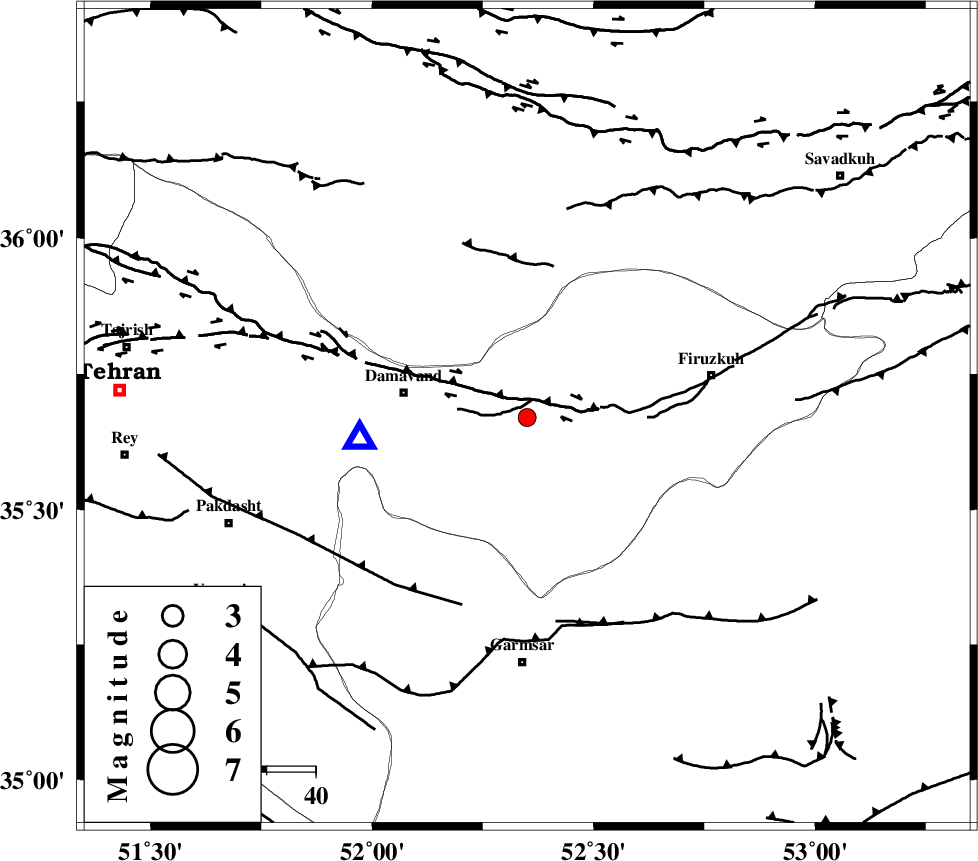

Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 8 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 41 km | |
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 43 km | |
| Number of Phases | 14 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144749 | IIEES SC | DAMV | Z | 1400 | 1 | 2019-08-13 07:29:20 | 2019-08-14 08:38:00 | n |
| 144750 | IIEES SC | CHTH | Z | 99 | 1 | 2019-08-13 07:29:42 | 2019-08-14 08:38:00 | n |
| 144751 | IIEES SC | THKV | Z | 340 | 1 | 2019-08-13 07:29:52 | 2019-08-14 08:38:00 | n |
| 144752 | IIEES SC | GHVR | Z | 120 | 1 | 2019-08-13 07:30:01 | 2019-08-14 08:38:00 | n |
| 144753 | IIEES SC | ASAO | Z | 35 | 1 | 2019-08-13 07:30:18 | 2019-08-14 08:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | Z | IP | I | 2019-08-13 07:29:14 | -0.7 | y | 33 | 263 | |||
| IIEES SC | CHTH | N | IS | I | 2019-08-13 07:29:41 | -0.5 | y | 111 | 283 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-08-13 07:29:26 | -0.3 | y | 111 | 283 | |||
| IIEES SC | THKV | N | IS | I | 2019-08-13 07:29:47 | 0.2 | y | 133 | 282 | |||
| IIEES SC | THKV | Z | IP | I | 2019-08-13 07:29:31 | 0.5 | y | 133 | 282 | |||
| IIEES SC | GHVR | E | IS | I | 2019-08-13 07:29:55 | -0.3 | y | 166 | 217 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-08-13 07:29:35 | -0.1 | y | 166 | 217 | |||
| IIEES SC | ASAO | N | IS | I | 2019-08-13 07:30:16 | 1.4 | y | 244 | 240 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-08-13 07:29:46 | 0.1 | y | 244 | 240 | |||
| IIEES SC | DAMV | 729 | 2019-08-13 07:29:33 | y | 33 | 263 | ||||||
| IIEES SC | CHTH | 729 | 2019-08-13 07:29:36 | y | 111 | 283 | ||||||
| IIEES SC | THKV | 729 | 2019-08-13 07:29:51 | y | 133 | 282 | ||||||
| IIEES SC | GHVR | 730 | 2019-08-13 07:30:09 | y | 166 | 217 | ||||||
| IIEES SC | ASAO | 730 | 2019-08-13 07:30:19 | y | 244 | 240 | ||||||
