Event Specification
Magnitude |
4.5 |
| Date & Time (UTC) | 2019-08-16 10:55:05.6 |
| Date & Time (Local) | 1398/5/25 15:25:05.6 |

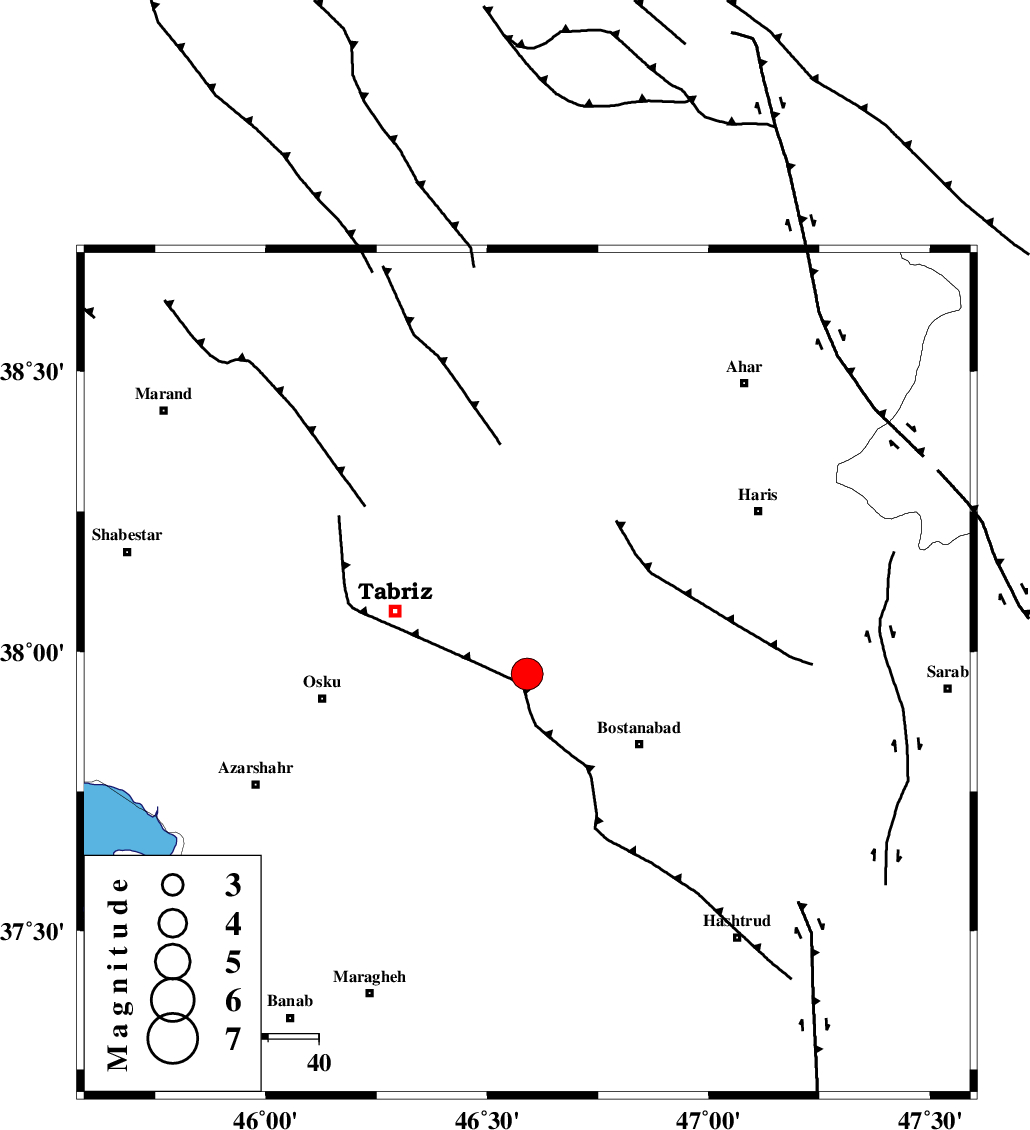

| Location | Lat:37.96 Lon: 46.59 |
| Region | Azarbaijan Sharghi Province, 26 km North-West of Bostanabad |
Nearest Cities |
|
| 1 km North of Saeedabad, Azarbaijan Sharghi Province | |
| 8 km North of Yusefabad, Azarbaijan Sharghi Province | |
| 11 km East of Basmanj, Azarbaijan Sharghi Province | |
| 17 km North of Liqvan, Azarbaijan Sharghi Province | |
| 20 km North West of Haj aqa, Azarbaijan Sharghi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 11 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 61 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 63 km | |
| Number of Phases | 36 |
| RMS | 0.3 |
| Number of Stations | 21 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144786 | IIEES SC | AZR | Z | 65000 | 1 | 2019-08-16 10:55:27 | 2019-08-16 03:48:00 | n |
| 144787 | IIEES SC | GRMI | Z | 3400 | 1 | 2019-08-16 10:56:00 | 2019-08-16 03:48:00 | n |
| 144788 | IIEES SC | MAHB | Z | 13000 | 1 | 2019-08-16 10:55:52 | 2019-08-16 03:48:00 | n |
| 144789 | IIEES SC | SRSL | Z | 4200 | 1 | 2019-08-16 10:56:10 | 2019-08-16 03:48:00 | n |
| 144790 | IIEES SC | ZNJK | Z | 3200 | 1 | 2019-08-16 10:56:15 | 2019-08-16 03:48:00 | n |
| 144791 | IIEES SC | GIDE | Z | 11000 | 1 | 2019-08-16 10:56:44 | 2019-08-16 03:48:00 | n |
| 144792 | IIEES SC | CHTH | Z | 720 | 1 | 2019-08-16 10:57:21 | 2019-08-16 03:48:00 | n |
| 144793 | IIEES SC | ASAO | Z | 190 | 1 | 2019-08-16 10:57:42 | 2019-08-16 03:48:00 | n |
| 144794 | IIEES SC | KHMZ | Z | 100 | 1 | 2019-08-16 10:58:12 | 2019-08-16 03:48:00 | n |
| 144795 | IIEES SC | GHVR | Z | 300 | 1 | 2019-08-16 10:58:05 | 2019-08-16 03:48:00 | n |
| 144796 | IIEES SC | GTMR | Z | 65 | 1 | 2019-08-16 10:57:02 | 2019-08-16 03:48:00 | n |
| 144797 | IIEES SC | GLO | Z | 230 | 1 | 2019-08-16 10:58:31 | 2019-08-16 03:48:00 | n |
| 144798 | IIEES SC | MRVT | Z | 50 | 1 | 2019-08-16 10:56:56 | 2019-08-16 03:48:00 | n |
| 144799 | IIEES SC | SHRO | Z | 28 | 1 | 2019-08-16 10:59:14 | 2019-08-16 03:48:00 | n |
| 144800 | IIEES SC | BJRD | Z | 16 | 1 | 2019-08-16 10:57:20 | 2019-08-16 03:48:00 | n |
| 144801 | IIEES SC | SBZV | Z | 76 | 1 | 2019-08-16 10:57:18 | 2019-08-16 03:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AZR | N | IS | I | 2019-08-16 10:55:25 | 0.1 | y | 66 | 240 | |||
| IIEES SC | AZR | Z | IP | I | 2019-08-16 10:55:16 | -0.1 | y | 66 | 240 | |||
| IIEES SC | GRMI | N | IS | I | 2019-08-16 10:55:48 | -0.1 | y | 144 | 50 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-08-16 10:55:30 | 0.1 | y | 144 | 50 | |||
| IIEES SC | MAHB | N | IS | I | 2019-08-16 10:55:49 | -0.4 | y | 155 | 211 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-08-16 10:55:31 | -0.1 | y | 155 | 211 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-08-16 10:55:41 | 0.1 | y | 222 | 208 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-08-16 10:55:42 | -0.6 | y | 233 | 128 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-08-16 10:55:51 | -1.4 | y | 311 | 111 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-08-16 10:56:11 | 0.4 | y | 467 | 119 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-08-16 10:56:14 | 0.4 | y | 489 | 141 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-08-16 10:56:24 | 1.2 | y | 556 | 147 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-08-16 10:56:22 | -1.8 | y | 567 | 133 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-08-16 10:56:35 | 0.8 | y | 656 | 159 | |||
| IIEES SC | GLO | Z | IP | I | 2019-08-16 10:56:36 | 0 | y | 667 | 104 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-08-16 10:56:56 | -1.6 | y | 834 | 92 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-08-16 10:57:01 | 0.1 | y | 867 | 104 | |||
| IIEES SC | BJRD | Z | IP | I | 2019-08-16 10:57:10 | -1.3 | y | 956 | 92 | |||
| IIEES SC | SBZV | Z | IP | I | 2019-08-16 10:57:17 | -0.3 | y | 989 | 100 | |||
| IIEES SC | AKL | Z | IP | I | 2019-08-16 10:57:28 | -0.8 | y | 1089 | 98 | |||
| IIEES SC | TBJM | Z | IP | I | 2019-08-16 10:57:50 | -0.8 | y | 1267 | 104 | |||
| IIEES SC | AAK | Z | IP | I | 2019-08-16 11:00:14 | -0.3 | n | 4 | 2435 | 78 | ||
| IIEES SC | AZR | 1055 | 2019-08-16 10:55:31 | y | 66 | 240 | ||||||
| IIEES SC | GRMI | 1055 | 2019-08-16 10:55:49 | y | 144 | 50 | ||||||
| IIEES SC | MAHB | 1055 | 2019-08-16 10:55:50 | y | 155 | 211 | ||||||
| IIEES SC | SRSL | 1056 | 2019-08-16 10:56:12 | y | 222 | 208 | ||||||
| IIEES SC | ZNJK | 1056 | 2019-08-16 10:56:01 | y | 233 | 128 | ||||||
| IIEES SC | GIDE | 1056 | 2019-08-16 10:56:45 | y | 311 | 111 | ||||||
| IIEES SC | CHTH | 1056 | 2019-08-16 10:56:45 | y | 467 | 119 | ||||||
| IIEES SC | ASAO | 1057 | 2019-08-16 10:57:46 | y | 489 | 141 | ||||||
| IIEES SC | KHMZ | 1058 | 2019-08-16 10:58:13 | y | 556 | 147 | ||||||
| IIEES SC | GHVR | 1058 | 2019-08-16 10:58:21 | y | 567 | 133 | ||||||
| IIEES SC | GTMR | 1058 | 2019-08-16 10:58:44 | y | 656 | 159 | ||||||
| IIEES SC | GLO | 1058 | 2019-08-16 10:58:40 | y | 667 | 104 | ||||||
| IIEES SC | MRVT | 1057 | 2019-08-16 10:57:43 | y | 834 | 92 | ||||||
| IIEES SC | SHRO | 1058 | 2019-08-16 10:58:30 | y | 867 | 104 | ||||||
