Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2019-08-24 10:10:03.7 |
| Date & Time (Local) | 1398/6/2 14:40:03.7 |

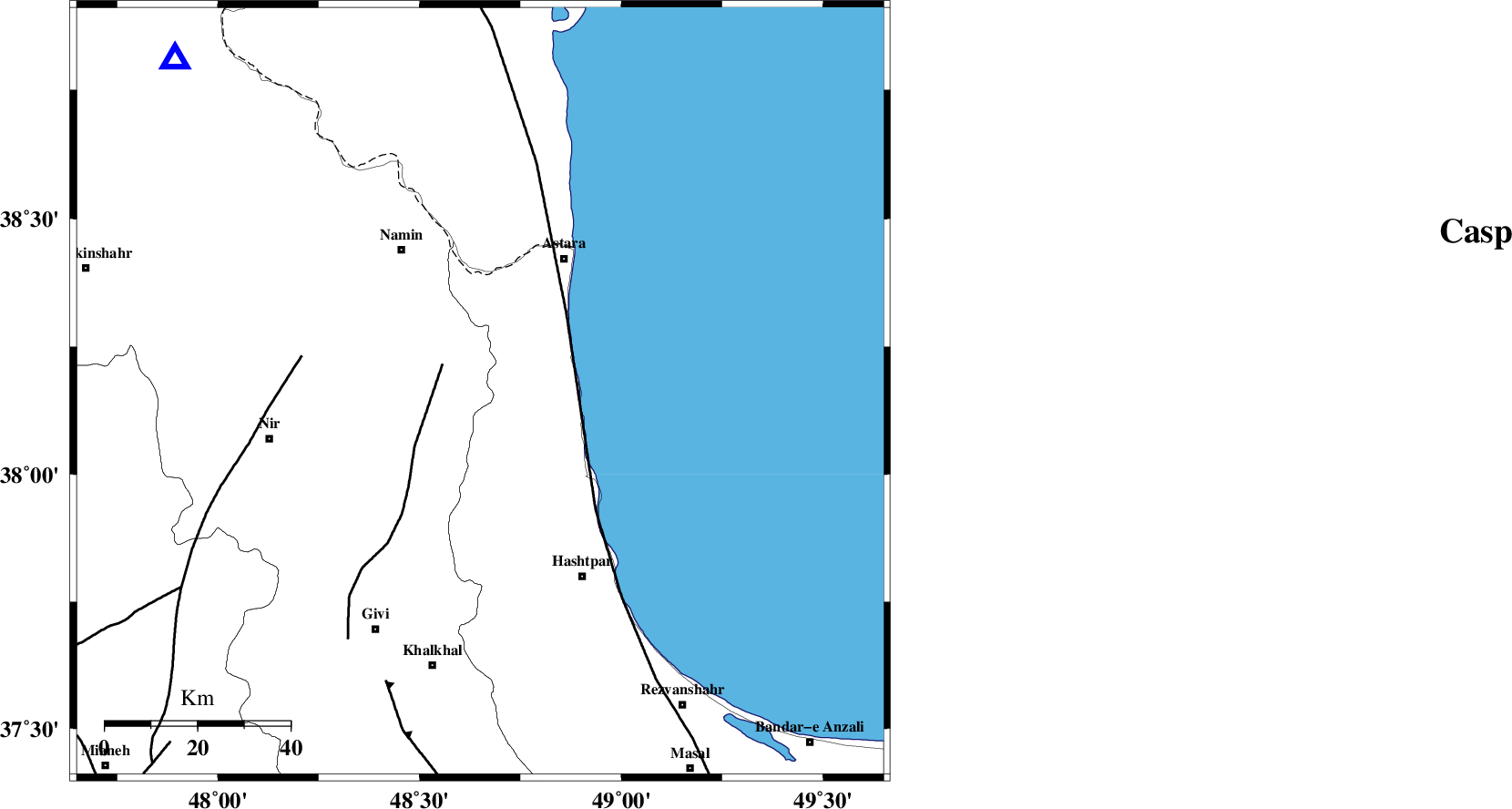

| Location | Lat:38.16 Lon: 48.65 |
| Region | Ardebil Province, 32 km -East of Ardabil |
Nearest Cities |
|
| 11 km North East of Hir, Ardebil Province | |
| 17 km South of Baibiglu, Ardebil Province | |
| 20 km West of Hariq, Gilan Province | |
| 23 km North East of Budalalu, Ardebil Province | |
| 24 km South of Kiladeh, Gilan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 10 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 25 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 39 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >0 km |
| Error in Longitude | 0 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144947 | IIEES SC | GRMI | Z | 110 | 1 | 2019-08-24 10:10:34 | 2019-08-26 08:42:00 | n |
| 144948 | IIEES SC | ZNJK | Z | 28 | 1 | 2019-08-24 10:10:51 | 2019-08-26 08:42:00 | n |
| 144949 | IIEES SC | THKV | Z | 48 | 1 | 2019-08-24 10:11:22 | 2019-08-26 08:42:00 | n |
| 144950 | IIEES SC | CHTH | Z | 18 | 1 | 2019-08-24 10:11:22 | 2019-08-26 08:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-08-24 10:10:20 | 0 | y | 100 | 317 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-08-24 10:10:30 | 0 | y | 166 | 179 | |||
| IIEES SC | THKV | Z | IP | I | 2019-08-24 10:10:51 | 0.5 | y | 322 | 142 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-08-24 10:10:52 | -0.6 | y | 333 | 139 | |||
| IIEES SC | GRMI | 1010 | 2019-08-24 10:10:34 | y | 100 | 317 | ||||||
| IIEES SC | ZNJK | 1010 | 2019-08-24 10:10:58 | y | 166 | 179 | ||||||
| IIEES SC | THKV | 1011 | 2019-08-24 10:11:22 | y | 322 | 142 | ||||||
| IIEES SC | CHTH | 1012 | 2019-08-24 10:12:08 | y | 333 | 139 | ||||||
