Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2019-08-27 13:44:31.2 |
| Date & Time (Local) | 1398/6/5 18:14:31.2 |

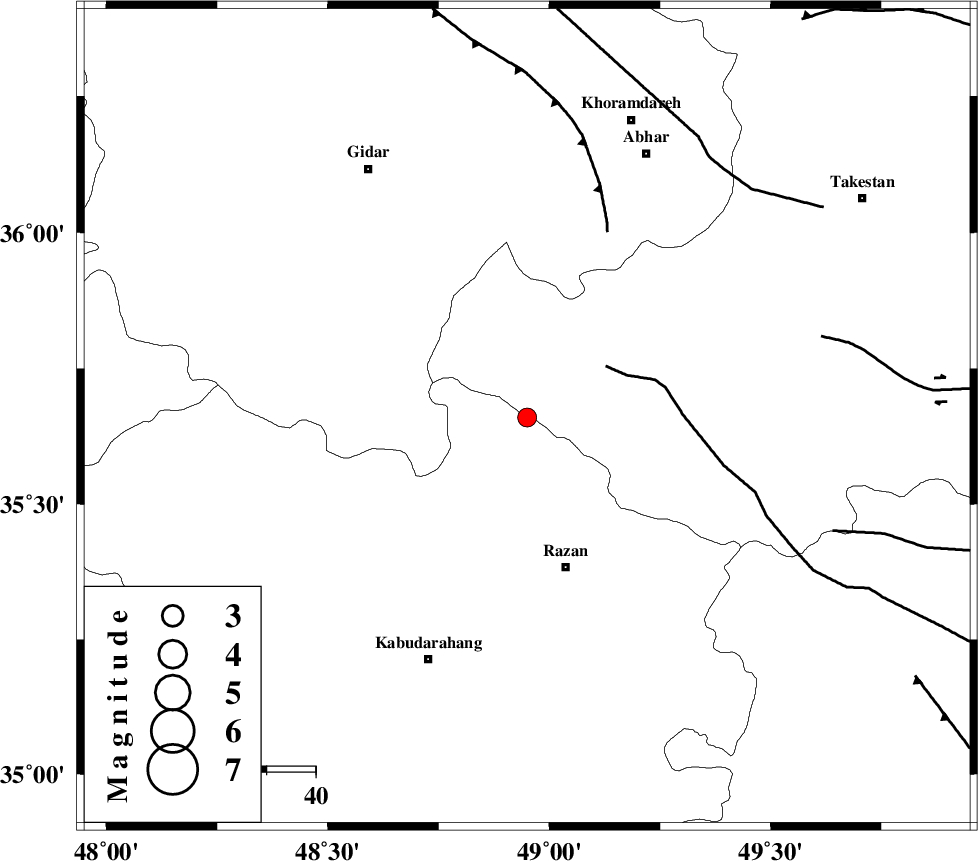

| Location | Lat:35.66 Lon: 48.95 |
| Region | Hamedan Province, 32 km North of Razan |
Nearest Cities |
|
| 21 km North East of Khorandeh, Hamedan Province | |
| 24 km East of Kahla, Zanjan Province | |
| 27 km North East of Damag, Hamedan Province | |
| 27 km North West of Avaj, Ghazvin Province | |
| 31 km North East of Babanazar, Hamedan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 19 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 41 km | |
| IPAK_F (Length: 80 km) , Distance to epicenter: 62 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 6 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 17 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 145012 | IIEES SC | ZNJK | Z | 53 | 1 | 2019-08-27 13:45:05 | 2019-08-28 12:50:00 | n |
| 145013 | IIEES SC | ASAO | Z | 49 | 1 | 2019-08-27 13:45:21 | 2019-08-28 12:50:00 | n |
| 145014 | IIEES SC | GIDE | Z | 290 | 1 | 2019-08-27 13:45:31 | 2019-08-28 12:50:00 | n |
| 145015 | IIEES SC | THKV | Z | 58 | 1 | 2019-08-27 13:45:31 | 2019-08-28 12:50:00 | n |
| 145016 | IIEES SC | CHTH | Z | 35 | 1 | 2019-08-27 13:45:37 | 2019-08-28 12:50:00 | n |
| 145017 | IIEES SC | KHMZ | Z | 84 | 1 | 2019-08-27 13:45:39 | 2019-08-28 12:50:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ZNJK | Z | IP | I | 2019-08-27 13:44:50 | -0.4 | y | 111 | 348 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-08-27 13:44:56 | -0.5 | y | 155 | 141 | |||
| IIEES SC | GIDE | N | IP | I | 2019-08-27 13:44:58 | 0.7 | y | 166 | 32 | |||
| IIEES SC | THKV | Z | IP | I | 2019-08-27 13:44:59 | -0.5 | y | 177 | 81 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-08-27 13:45:03 | -0.2 | y | 200 | 82 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-08-27 13:45:08 | 0.7 | y | 233 | 156 | |||
| IIEES SC | ZNJK | 1345 | 2019-08-27 13:45:06 | y | 111 | 348 | ||||||
| IIEES SC | ASAO | 1345 | 2019-08-27 13:45:18 | y | 155 | 141 | ||||||
| IIEES SC | GIDE | 1345 | 2019-08-27 13:45:24 | y | 166 | 32 | ||||||
| IIEES SC | THKV | 1345 | 2019-08-27 13:45:33 | y | 177 | 81 | ||||||
| IIEES SC | CHTH | 1345 | 2019-08-27 13:45:31 | y | 200 | 82 | ||||||
| IIEES SC | KHMZ | 1345 | 2019-08-27 13:45:40 | y | 233 | 156 | ||||||
