Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2019-08-28 07:46:22.2 |
| Date & Time (Local) | 1398/6/6 12:16:22.2 |

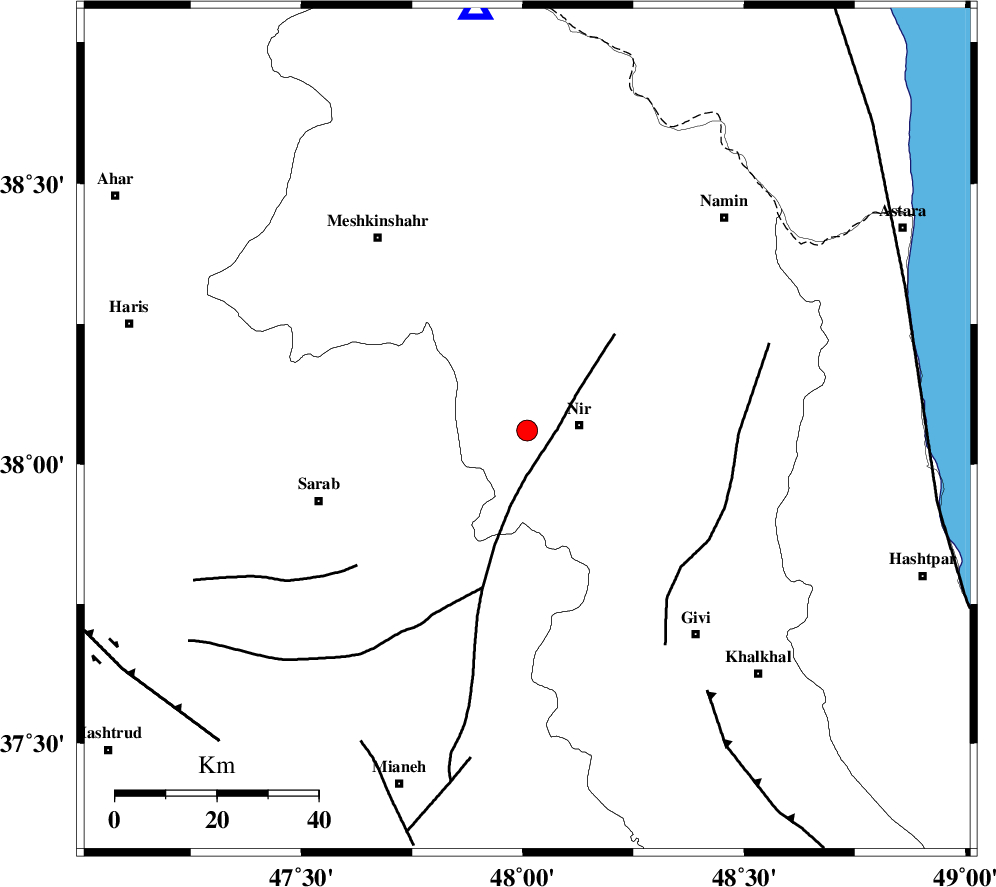

| Location | Lat:38.06 Lon: 48.01 |
| Region | Ardebil Province, 10 km -West of Nir |
Nearest Cities |
|
| 9 km of Eslamabad, Ardebil Province | |
| 10 km North of Qarehshiran, Ardebil Province | |
| 10 km West of Nir, Ardebil Province | |
| 12 km West of Rezaqoli qeshlaq, Ardebil Province | |
| 14 km South of Varniab, Ardebil Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 9 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 41 km | |
| MASULEL_F (Length: 90 km) , Distance to epicenter: 63 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 5 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 13 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 145085 | IIEES SC | GRMI | Z | 260 | 1 | 2019-08-28 07:46:48 | 2019-08-31 08:37:00 | n |
| 145086 | IIEES SC | ZNJK | Z | 130 | 1 | 2019-08-28 07:46:50 | 2019-08-31 08:37:00 | n |
| 145087 | IIEES SC | AZR | Z | 210 | 1 | 2019-08-28 07:46:54 | 2019-08-31 08:37:00 | n |
| 145088 | IIEES SC | GIDE | Z | 400 | 1 | 2019-08-28 07:47:24 | 2019-08-31 08:37:00 | n |
| 145089 | IIEES SC | SRSL | Z | 18 | 1 | 2019-08-28 07:47:15 | 2019-08-31 08:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-08-28 07:46:36 | 0.1 | y | 88 | 353 | |||
| IIEES SC | ZNJK | N | IP | I | 2019-08-28 07:46:49 | -0.3 | y | 166 | 159 | |||
| IIEES SC | AZR | Z | IP | I | 2019-08-28 07:46:51 | -0.2 | y | 177 | 257 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-08-28 07:46:56 | 0 | y | 211 | 127 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-08-28 07:47:09 | 1.6 | y | 311 | 228 | |||
| IIEES SC | GRMI | 746 | 2019-08-28 07:46:49 | y | 88 | 353 | ||||||
| IIEES SC | ZNJK | 747 | 2019-08-28 07:47:10 | y | 166 | 159 | ||||||
| IIEES SC | AZR | 746 | 2019-08-28 07:46:57 | y | 177 | 257 | ||||||
| IIEES SC | GIDE | 747 | 2019-08-28 07:47:27 | y | 211 | 127 | ||||||
| IIEES SC | SRSL | 747 | 2019-08-28 07:47:38 | y | 311 | 228 | ||||||
