Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2019-09-10 19:23:12.3 |
| Date & Time (Local) | 1398/6/19 23:53:12.3 |

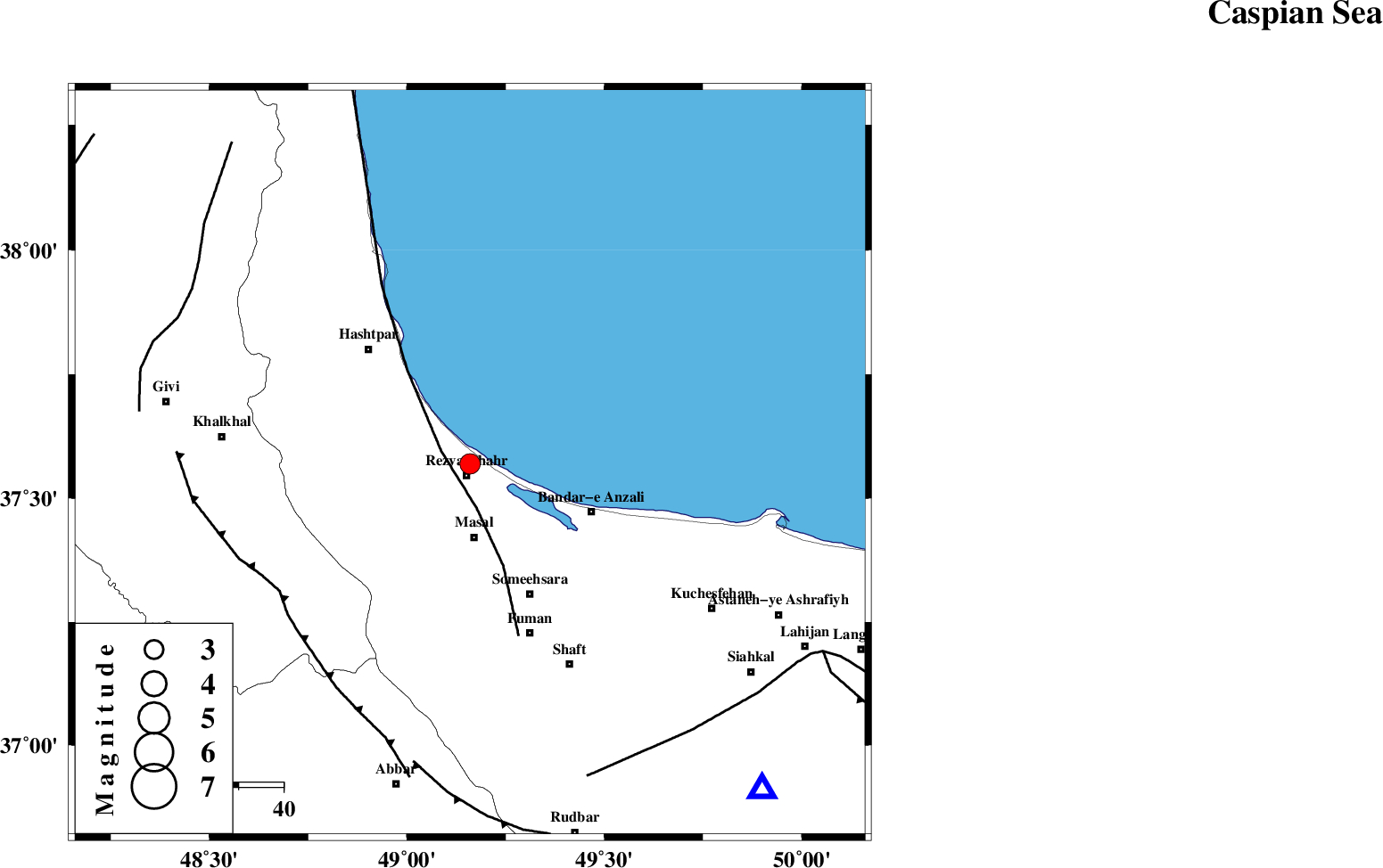

| Location | Lat:37.57 Lon: 49.16 |
| Region | Gilan Province, 3 km of Rezvanshahr |
Nearest Cities |
|
| 3 km North of Rezvanshahr, Gilan Province | |
| 5 km North of Darsara, Gilan Province | |
| 7 km North of Kaporchal, Gilan Province | |
| 8 km of Parrehsar, Gilan Province | |
| 9 km of Void, Gilan Province | |
| Depth | 11 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 7 km | |
| MASULEL_F (Length: 90 km) , Distance to epicenter: 51 km | |
| RUDBAR_F (Length: 93 km) , Distance to epicenter: 68 km | |
| Number of Phases | 22 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 145259 | IIEES SC | ZNJK | Z | 2100 | 1 | 2019-09-10 19:23:43 | 2019-09-11 08:39:00 | n |
| 145260 | IIEES SC | GRMI | Z | 140 | 1 | 2019-09-10 19:24:05 | 2019-09-11 08:39:00 | n |
| 145261 | IIEES SC | THKV | Z | 180 | 1 | 2019-09-10 19:24:24 | 2019-09-11 08:39:00 | n |
| 145262 | IIEES SC | CHTH | Z | 120 | 1 | 2019-09-10 19:24:26 | 2019-09-11 08:39:00 | n |
| 145263 | IIEES SC | AZR | Z | 170 | 1 | 2019-09-10 19:24:38 | 2019-09-11 08:39:00 | n |
| 145264 | IIEES SC | DAMV | Z | 30 | 1 | 2019-09-10 19:24:52 | 2019-09-11 08:39:00 | n |
| 145265 | IIEES SC | ASAO | Z | 46 | 1 | 2019-09-10 19:24:56 | 2019-09-11 08:39:00 | n |
| 145266 | IIEES SC | SRSL | Z | 35 | 1 | 2019-09-10 19:25:00 | 2019-09-11 08:39:00 | n |
| 145267 | IIEES SC | GHVR | Z | 51 | 1 | 2019-09-10 19:25:14 | 2019-09-11 08:39:00 | n |
| 145268 | IIEES SC | KHMZ | Z | 27 | 1 | 2019-09-10 19:25:25 | 2019-09-11 08:39:00 | n |
| 145269 | IIEES SC | GLO | Z | 31 | 1 | 2019-09-10 19:25:09 | 2019-09-11 08:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ZNJK | Z | IP | I | 2019-09-10 19:23:30 | 0 | y | 111 | 203 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-09-10 19:23:41 | 0 | y | 177 | 321 | |||
| IIEES SC | THKV | Z | IP | I | 2019-09-10 19:23:49 | -0.6 | y | 244 | 140 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-09-10 19:23:52 | 0.3 | y | 255 | 136 | |||
| IIEES SC | AZR | Z | IP | I | 2019-09-10 19:23:55 | -0.1 | y | 278 | 272 | |||
| IIEES SC | DAMV | N | IP | I | 2019-09-10 19:24:03 | 1.9 | y | 333 | 131 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-09-10 19:24:05 | 2.3 | y | 344 | 167 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-09-10 19:24:06 | 0.2 | y | 366 | 246 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-09-10 19:24:08 | -0.8 | y | 389 | 151 | |||
| IIEES SC | KHMZ | N | IP | I | 2019-09-10 19:24:14 | 0.5 | y | 433 | 170 | |||
| IIEES SC | GLO | N | IP | I | 2019-09-10 19:24:14 | 0 | y | 433 | 106 | |||
| IIEES SC | ZNJK | 1923 | 2019-09-10 19:23:56 | y | 111 | 203 | ||||||
| IIEES SC | GRMI | 1924 | 2019-09-10 19:24:04 | y | 177 | 321 | ||||||
| IIEES SC | THKV | 1924 | 2019-09-10 19:24:23 | y | 244 | 140 | ||||||
| IIEES SC | CHTH | 1924 | 2019-09-10 19:24:44 | y | 255 | 136 | ||||||
| IIEES SC | AZR | 1924 | 2019-09-10 19:24:41 | y | 278 | 272 | ||||||
| IIEES SC | DAMV | 1925 | 2019-09-10 19:25:59 | y | 333 | 131 | ||||||
| IIEES SC | ASAO | 1924 | 2019-09-10 19:24:55 | y | 344 | 167 | ||||||
| IIEES SC | SRSL | 1925 | 2019-09-10 19:25:04 | y | 366 | 246 | ||||||
| IIEES SC | GHVR | 1926 | 2019-09-10 19:26:11 | y | 389 | 151 | ||||||
| IIEES SC | KHMZ | 1925 | 2019-09-10 19:25:21 | y | 433 | 170 | ||||||
| IIEES SC | GLO | 1925 | 2019-09-10 19:25:23 | y | 433 | 106 | ||||||
