Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2019-09-25 06:57:31.5 |
| Date & Time (Local) | 1398/7/3 10:27:31.5 |

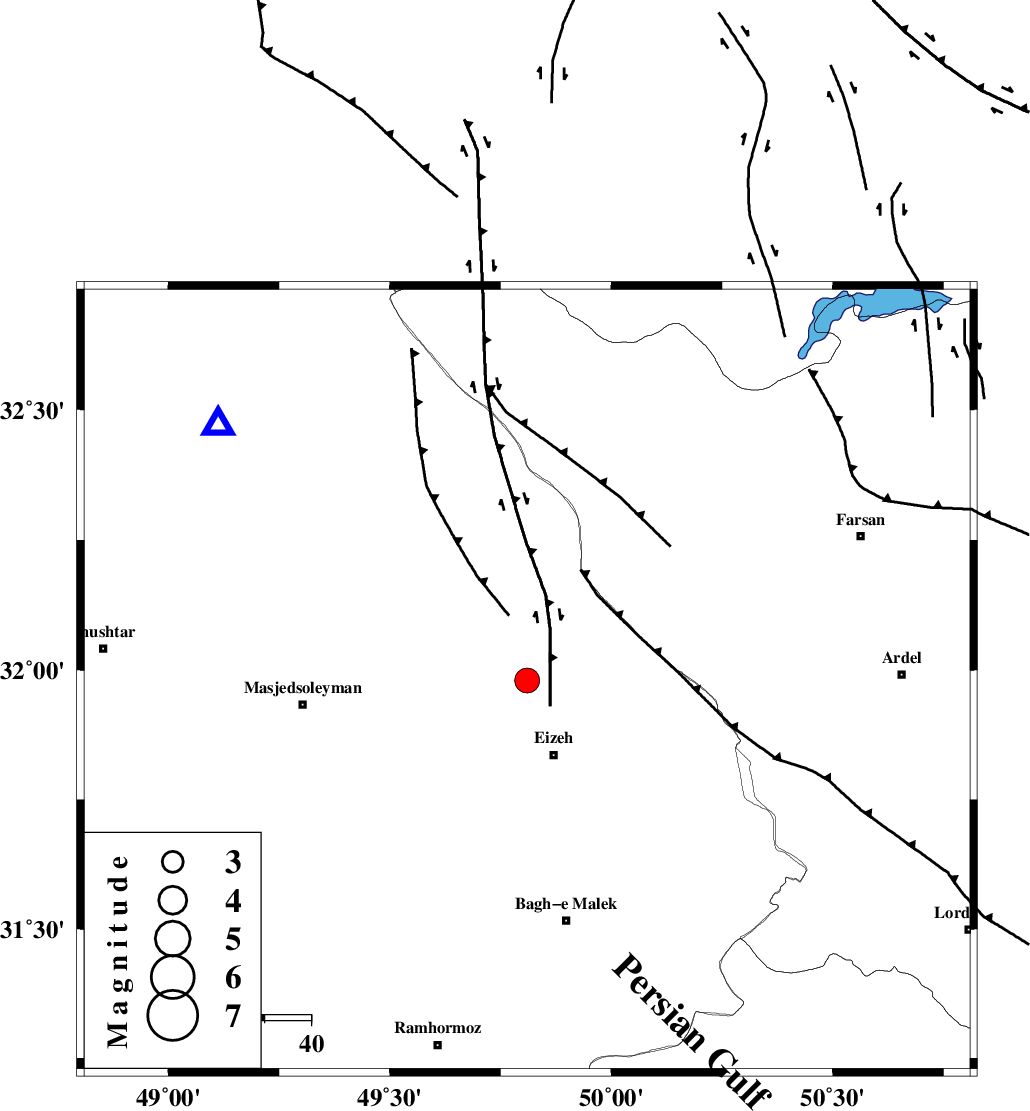

| Location | Lat:31.98 Lon: 49.81 |
| Region | Khoozestan Province, 17 km North of Izeh |
Nearest Cities |
|
| 3 km of Torshak, Khoozestan Province | |
| 13 km North of Rasvand, Khoozestan Province | |
| 17 km North of Izeh, Khoozestan Province | |
| 22 km North of Chenarestan, Khoozestan Province | |
| 39 km North of Ghaleh tal, Khoozestan Province | |
| Depth | 13 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 5 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 40 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 41 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 145729 | IIEES SC | GTMR | Z | 1300 | 1 | 2019-09-25 06:58:03 | 2019-09-25 03:49:00 | n |
| 145730 | IIEES SC | KHMZ | Z | 390 | 1 | 2019-09-25 06:58:37 | 2019-09-25 03:49:00 | n |
| 145731 | IIEES SC | KLNJ | Z | 580 | 1 | 2019-09-25 06:58:34 | 2019-09-25 03:49:00 | n |
| 145732 | IIEES SC | ASAO | Z | 150 | 1 | 2019-09-25 06:59:06 | 2019-09-25 03:49:00 | n |
| 145733 | IIEES SC | NASN | Z | 80 | 1 | 2019-09-25 06:58:18 | 2019-09-25 03:49:00 | n |
| 145734 | IIEES SC | GHVR | Z | 160 | 1 | 2019-09-25 06:59:10 | 2019-09-25 03:49:00 | n |
| 145735 | IIEES SC | ILBA | Z | 55 | 1 | 2019-09-25 06:59:38 | 2019-09-25 03:49:00 | n |
| 145736 | IIEES SC | SNGE | Z | 46 | 1 | 2019-09-25 06:59:18 | 2019-09-25 03:49:00 | n |
| 145737 | IIEES SC | QABG | Z | 11 | 1 | 2019-09-25 06:59:39 | 2019-09-25 03:49:00 | n |
| 145738 | IIEES SC | DAMV | Z | 40 | 1 | 2019-09-25 07:00:02 | 2019-09-25 03:49:00 | n |
| 145739 | IIEES SC | CHTH | Z | 25 | 1 | 2019-09-25 06:59:52 | 2019-09-25 03:49:00 | n |
| 145740 | IIEES SC | YZKH | Z | 33 | 1 | 2019-09-25 06:59:44 | 2019-09-25 03:49:00 | n |
| 145741 | IIEES SC | TABS | Z | 17 | 1 | 2019-09-25 07:01:02 | 2019-09-25 03:49:00 | n |
| 145742 | IIEES SC | SHRO | Z | 15 | 1 | 2019-09-25 06:59:09 | 2019-09-25 03:49:00 | n |
| 145743 | IIEES SC | SHRO | Z | 11 | 0.71 | 2019-09-25 06:59:10 | 2019-09-25 03:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2019-09-25 06:57:45 | -0.7 | y | 88 | 310 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-09-25 06:58:04 | 0.9 | y | 200 | 4 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-09-25 06:58:04 | 0 | y | 200 | 122 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-09-25 06:58:16 | 1 | y | 289 | 4 | |||
| IIEES SC | NASN | Z | IP | I | 2019-09-25 06:58:16 | -0.1 | y | 300 | 72 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-09-25 06:58:19 | 1.4 | y | 311 | 26 | |||
| IIEES SC | ILBA | N | IP | I | 2019-09-25 06:58:27 | 0.1 | y | 389 | 298 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-09-25 06:58:29 | -1.1 | y | 411 | 327 | |||
| IIEES SC | QABG | Z | IP | I | 2019-09-25 06:58:31 | 0.1 | y | 411 | 357 | |||
| IIEES SC | DAMV | N | IP | I | 2019-09-25 06:58:35 | -0.5 | y | 455 | 26 | |||
| IIEES SC | CHTH | N | IP | I | 2019-09-25 06:58:35 | -0.6 | y | 455 | 16 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-09-25 06:58:35 | 0 | y | 455 | 84 | |||
| IIEES SC | TABS | N | IP | I | 2019-09-25 06:59:06 | -1 | y | 711 | 75 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-09-25 06:59:09 | -0.4 | y | 722 | 52 | |||
| IIEES SC | TABS | Z | IVmB_BB | 2019-09-25 06:59:42 | y | 1 | 711 | 75 | ||||
