Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2019-09-26 09:23:16.8 |
| Date & Time (Local) | 1398/7/4 12:53:16.8 |
| Location | Lat:35.2 Lon: 52.1 |
| Region | Semnan Province, 22 km -West of Garmsar |
Nearest Cities |
|
| 15 km East of Cheshmeh nadi, Semnan Province | |
| 16 km South of Evanekay, Semnan Province | |
| 21 km North West of Lajran, Semnan Province | |
| 21 km East of Shorqazi, Semnan Province | |
| 22 km West of Garmsar, Semnan Province | |
| Depth | 14 km |
| Agency | |

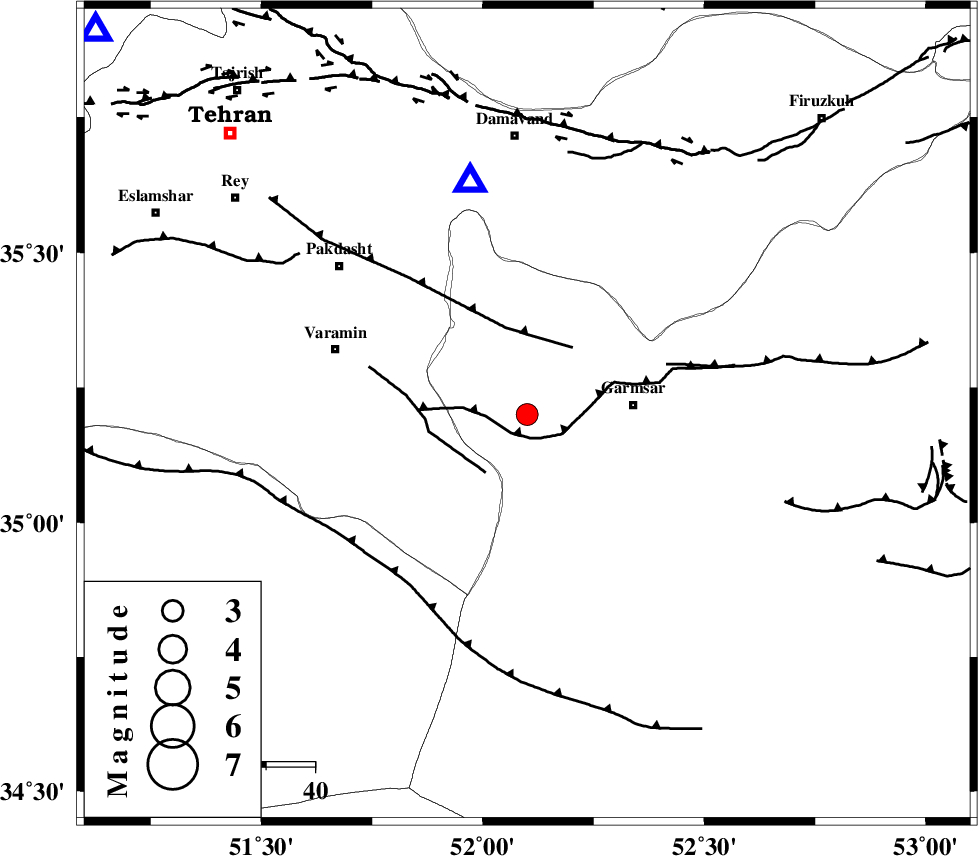

Faults within 150 km: |
|
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 5 km | |
| PISHAV_F (Length: 34 km) , Distance to epicenter: 15 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 17 km | |
| Number of Phases | 10 |
| RMS | 0.8 |
| Number of Stations | 10 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 145876 | IIEES SC | GHVR | Z | 460 | 1 | 2019-09-26 09:23:37 | 2019-09-29 02:52:00 | n |
| 145877 | IIEES SC | THKV | Z | 310 | 1 | 2019-09-26 09:24:07 | 2019-09-29 02:52:00 | n |
| 145878 | IIEES SC | ANJ | Z | 160 | 1 | 2019-09-26 09:24:10 | 2019-09-29 02:52:00 | n |
| 145879 | IIEES SC | ASAO | Z | 390 | 1 | 2019-09-26 09:24:15 | 2019-09-29 02:52:00 | n |
| 145880 | IIEES SC | GLO | Z | 260 | 1 | 2019-09-26 09:24:26 | 2019-09-29 02:52:00 | n |
| 145881 | IIEES SC | QABG | Z | 34 | 1 | 2019-09-26 09:24:39 | 2019-09-29 02:52:00 | n |
| 145882 | IIEES SC | KHMZ | Z | 130 | 1 | 2019-09-26 09:24:43 | 2019-09-29 02:52:00 | n |
| 145883 | IIEES SC | NASN | Z | 97 | 1 | 2019-09-26 09:25:00 | 2019-09-29 02:52:00 | n |
| 145884 | IIEES SC | ZNJK | Z | 40 | 1 | 2019-09-26 09:24:14 | 2019-09-29 02:52:00 | n |
| 145885 | IIEES SC | SHRO | Z | 24 | 1 | 2019-09-26 09:25:08 | 2019-09-29 02:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GHVR | Z | IP | I | 2019-09-26 09:23:35 | -0.3 | y | 111 | 224 | |||
| IIEES SC | THKV | Z | IP | I | 2019-09-26 09:23:39 | -0.5 | y | 133 | 306 | |||
| IIEES SC | ANJ | Z | IP | I | 2019-09-26 09:23:43 | -0.7 | y | 166 | 80 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-09-26 09:23:49 | -0.6 | y | 200 | 249 | |||
| IIEES SC | GLO | Z | IP | I | 2019-09-26 09:23:51 | 0.7 | y | 211 | 47 | |||
| IIEES SC | QABG | Z | IP | I | 2019-09-26 09:23:53 | -0.8 | y | 233 | 284 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-09-26 09:23:57 | 1.4 | y | 255 | 230 | |||
| IIEES SC | NASN | Z | IP | I | 2019-09-26 09:23:58 | 0 | y | 278 | 166 | |||
| IIEES SC | ZNJK | N | IP | I | 2019-09-26 09:24:10 | 2.6 | y | 344 | 298 | |||
| IIEES SC | SHRO | N | IP | I | 2019-09-26 09:24:10 | 0 | y | 366 | 76 | |||
