Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2019-09-26 11:37:47.7 |
| Date & Time (Local) | 1398/7/4 15:07:47.7 |

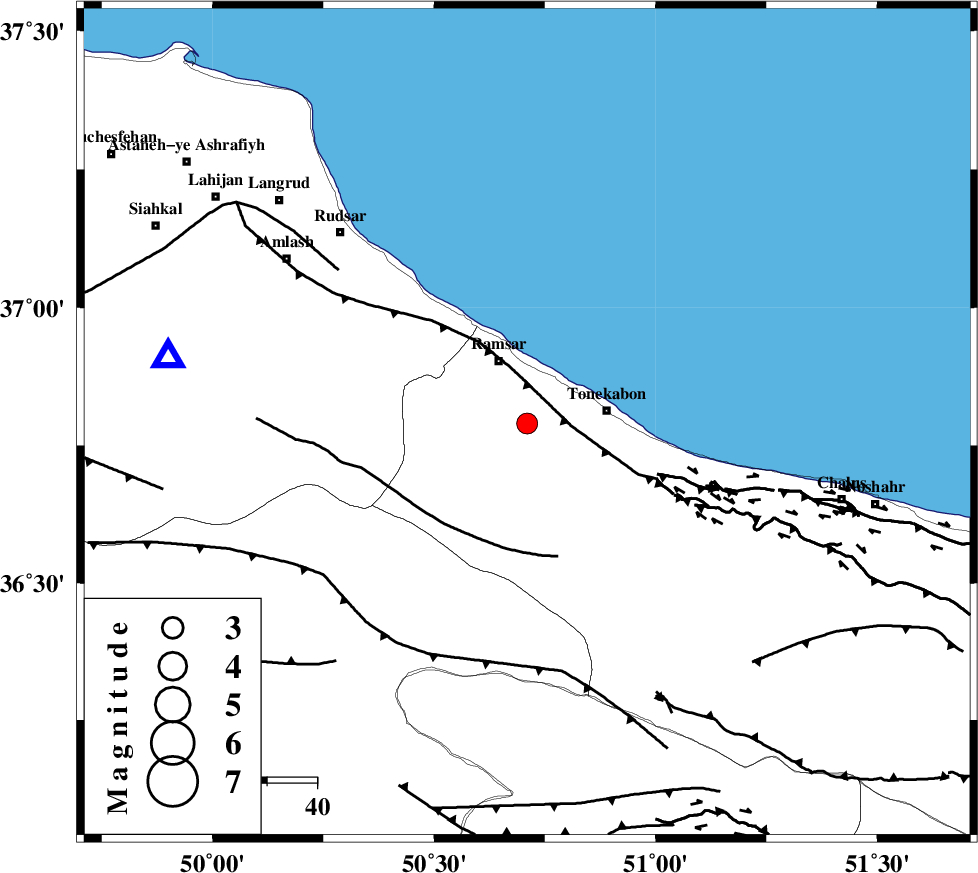

| Location | Lat:36.79 Lon: 50.71 |
| Region | Mazandaran Province, 14 km South of Ramsar |
Nearest Cities |
|
| 11 km West of Soleymanabad, Mazandaran Province | |
| 14 km South of Ramsar, Mazandaran Province | |
| 16 km North West of Khorramabad, Mazandaran Province | |
| 16 km West of Tonekabon, Mazandaran Province | |
| 17 km South of Galesh mahalleh, Mazandaran Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 9 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 25 km | |
| BONAN_F (Length: 74 km) , Distance to epicenter: 25 km | |
| Number of Phases | 11 |
| RMS | 1.3 |
| Number of Stations | 11 |
| Error in Latitude | >6 km |
| Error in Longitude | 0 km |
| Error in Depth | 16 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 145886 | IIEES SC | GIDE | Z | 2200 | 1 | 2019-09-26 11:38:15 | 2019-09-29 12:56:00 | n |
| 145887 | IIEES SC | THKV | Z | 430 | 1 | 2019-09-26 11:38:16 | 2019-09-29 12:56:00 | n |
| 145888 | IIEES SC | CHTH | Z | 350 | 1 | 2019-09-26 11:38:15 | 2019-09-29 12:56:00 | n |
| 145889 | IIEES SC | QABG | Z | 22 | 1 | 2019-09-26 11:38:36 | 2019-09-29 12:56:00 | n |
| 145890 | IIEES SC | ZNJK | Z | 120 | 1 | 2019-09-26 11:38:42 | 2019-09-29 12:56:00 | n |
| 145891 | IIEES SC | ASAO | Z | 24 | 1 | 2019-09-26 11:39:02 | 2019-09-29 12:56:00 | n |
| 145892 | IIEES SC | GHVR | Z | 39 | 1 | 2019-09-26 11:39:09 | 2019-09-29 12:56:00 | n |
| 145893 | IIEES SC | GLO | Z | 98 | 1 | 2019-09-26 11:39:14 | 2019-09-29 12:56:00 | n |
| 145894 | IIEES SC | GRMI | Z | 14 | 1 | 2019-09-26 11:38:37 | 2019-09-29 12:56:00 | n |
| 145895 | IIEES SC | KHMZ | Z | 16 | 1 | 2019-09-26 11:40:21 | 2019-09-29 12:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GIDE | N | IS | I | 2019-09-26 11:38:12 | 2.5 | y | 77 | 282 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-09-26 11:38:02 | 2 | y | 77 | 282 | |||
| IIEES SC | THKV | Z | IP | I | 2019-09-26 11:38:03 | -0.8 | y | 100 | 171 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-09-26 11:38:03 | -1.7 | y | 100 | 159 | |||
| IIEES SC | QABG | Z | IP | I | 2019-09-26 11:38:13 | -0.1 | y | 155 | 220 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-09-26 11:38:17 | 0.5 | y | 177 | 266 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-09-26 11:38:26 | -1.2 | y | 255 | 194 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-09-26 11:38:28 | 0.3 | y | 255 | 169 | |||
| IIEES SC | GLO | Z | IP | I | 2019-09-26 11:38:31 | 1 | y | 278 | 97 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-09-26 11:38:35 | -1.6 | y | 333 | 312 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-09-26 11:38:38 | 0.2 | y | 344 | 191 | |||
