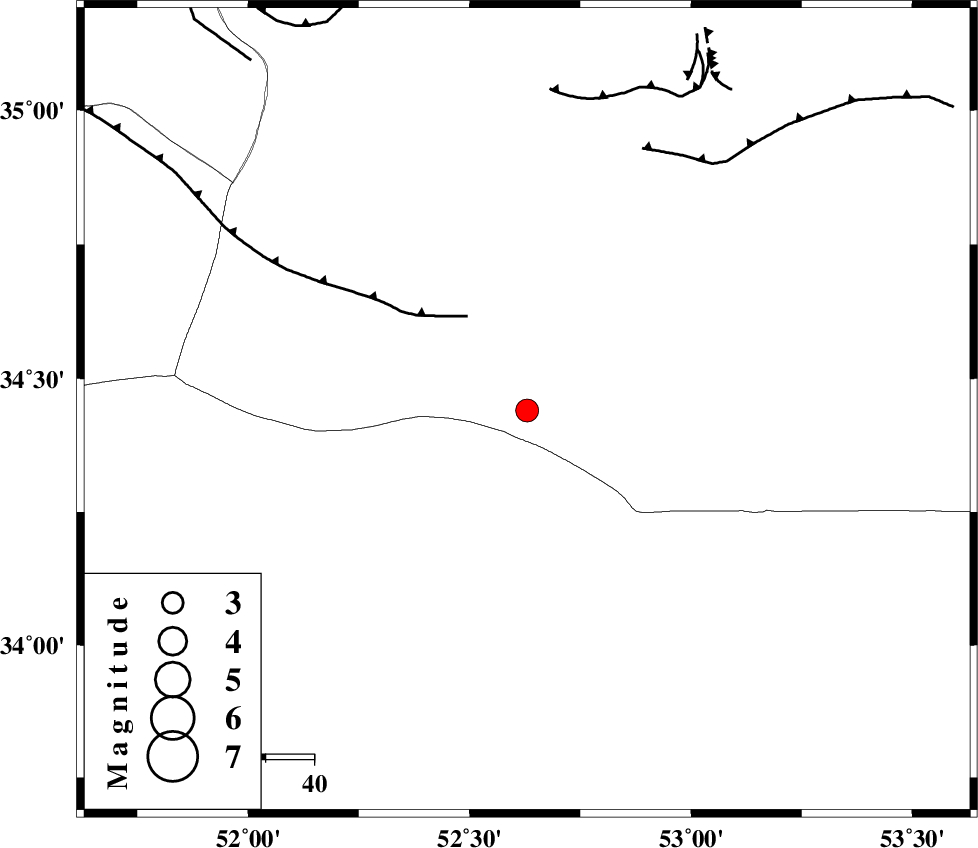

Map Title

Magnitude
 3.3
Date & Time (UTC) 2019-09-02 15:23:01.8
Date & Time (Local) 1398/6/11  19:53:01.8
Location Lat:34.44 Lon: 52.63
Region Semnan Province, 90 km South-East of Garmsar
Nearest Cities
72 km North East of Marnejab, Esfahan Province
84 km South East of Gardovan, Semnan Province
87 km South East of Davarabad, Semnan Province
88 km South of Kohanabad, Semnan Province
88 km South East of Lajran, Semnan Province
Depth 14 km
Agency
Faults within 150 km:
SIAHKUH_F (Length: 154 km) , Distance to epicenter: 23 km
KUH_E_GUGERD_F (Length: 73 km) , Distance to epicenter: 59 km
KUH_E_GACHAB_F1 (Length: 53 km) , Distance to epicenter: 67 km
Number of Phases 12
RMS 0.8
Number of Stations 12
Error in Latitude >3 km
Error in Longitude 0 km
Error in Depth 12 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
146005IIEES SCANJZ 28012019-09-02 15:23:532019-10-01 10:59:00n
146006IIEES SCNASNZ 40012019-09-02 15:23:562019-10-01 10:59:00n
146007IIEES SCCHTHZ 26012019-09-02 15:24:042019-10-01 10:59:00n
146008IIEES SCTHKVZ 15012019-09-02 15:24:172019-10-01 10:59:00n
146009IIEES SCASAOZ 10012019-09-02 15:24:172019-10-01 10:59:00n
146010IIEES SCGLOZ 28012019-09-02 15:24:222019-10-01 10:59:00n
146011IIEES SCKHMZZ 12012019-09-02 15:24:162019-10-01 10:59:00n
146012IIEES SCYZKHZ 9812019-09-02 15:24:242019-10-01 10:59:00n
146013IIEES SCSHROZ 4012019-09-02 15:24:572019-10-01 10:59:00n
146014IIEES SCKLNJZ 3112019-09-02 15:25:132019-10-01 10:59:00n
146015IIEES SCGTMRZ 2512019-09-02 15:25:082019-10-01 10:59:00n
146016IIEES SCTABSZ 4212019-09-02 15:25:232019-10-01 10:59:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCANJZ IP I2019-09-02 15:23:28-0.6y16646
IIEES SCNASNN IP I2019-09-02 15:23:29-1.8y177175
IIEES SCCHTHZ IP I2019-09-02 15:23:35-0.4y211320
IIEES SCTHKVN IP I2019-09-02 15:23:380.7y233316
IIEES SCASAOZ IP I2019-09-02 15:23:39-0.4y244273
IIEES SCGLOZ IP I2019-09-02 15:23:410.7y25526
IIEES SCKHMZZ IP I2019-09-02 15:23:41-0.7y255252
IIEES SCYZKHN IP I2019-09-02 15:23:471y289141
IIEES SCSHROZ IP I2019-09-02 15:23:540.6y35561
IIEES SCKLNJZ IP I2019-09-02 15:23:591.2y389194
IIEES SCGTMRZ IP I2019-09-02 15:23:580.5y389236
IIEES SCTABSZ IP I2019-09-02 15:24:01-1y422102
