Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2019-09-06 14:22:50.9 |
| Date & Time (Local) | 1398/6/15 18:52:50.9 |

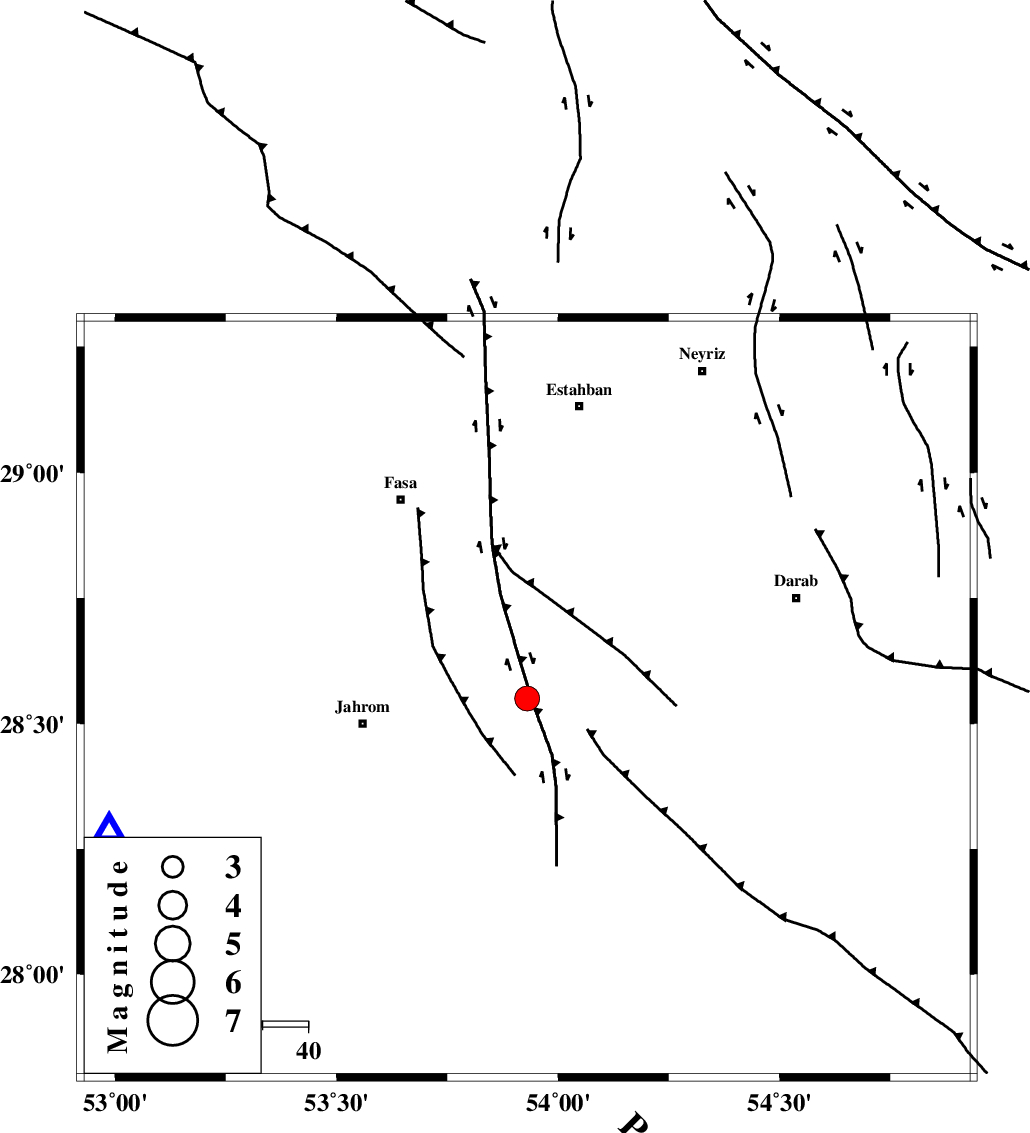

| Location | Lat:28.55 Lon: 53.93 |
| Region | Fars Province, 37 km -East of Jahrom |
Nearest Cities |
|
| 20 km East of Alaviyeh, Fars Province | |
| 21 km South East of Miyandeh, Fars Province | |
| 22 km North East of Khorramabad, Fars Province | |
| 26 km South East of Zahedshahr, Fars Province | |
| 31 km North West of Dabiran, Fars Province | |
| Depth | 11 km |
| Agency | |
Faults within 150 km: |
|
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 34 km | |
| SARVESTAN_F (Length: 94 km) , Distance to epicenter: 34 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 37 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 16 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 146072 | IIEES SC | GHIR | Z | 350 | 1 | 2019-09-06 14:23:32 | 2019-10-02 09:32:00 | n |
| 146073 | IIEES SC | LMD1 | Z | 720 | 1 | 2019-09-06 14:23:52 | 2019-10-02 09:32:00 | n |
| 146074 | IIEES SC | KRBR | Z | 170 | 1 | 2019-09-06 14:23:48 | 2019-10-02 09:32:00 | n |
| 146075 | IIEES SC | KLNJ | Z | 83 | 1 | 2019-09-06 14:24:48 | 2019-10-02 09:32:00 | n |
| 146076 | IIEES SC | YZKH | Z | 32 | 1 | 2019-09-06 14:24:09 | 2019-10-02 09:32:00 | n |
| 146077 | IIEES SC | NASN | Z | 20 | 1 | 2019-09-06 14:24:01 | 2019-10-02 09:32:00 | n |
| 146078 | IIEES SC | TABS | Z | 16 | 1 | 2019-09-06 14:26:34 | 2019-10-02 09:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GHIR | Z | IP | I | 2019-09-06 14:23:07 | -0.1 | y | 100 | 252 | |||
| IIEES SC | LMD1 | Z | IP | I | 2019-09-06 14:23:16 | 0.1 | y | 155 | 209 | |||
| IIEES SC | KRBR | N | IP | I | 2019-09-06 14:23:38 | -0.1 | y | 322 | 60 | |||
| IIEES SC | KLNJ | N | IP | I | 2019-09-06 14:23:43 | -0.2 | y | 355 | 320 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-09-06 14:23:53 | 0.8 | y | 433 | 8 | |||
| IIEES SC | NASN | N | IP | I | 2019-09-06 14:23:59 | 0.5 | y | 478 | 347 | |||
| IIEES SC | TABS | Z | IP | I | 2019-09-06 14:24:17 | -1 | y | 644 | 28 | |||
| IIEES SC | GHIR | 1423 | 2019-09-06 14:23:17 | y | 100 | 252 | ||||||
