Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2019-10-05 14:26:42.1 |
| Date & Time (Local) | 1398/7/13 17:56:42.1 |

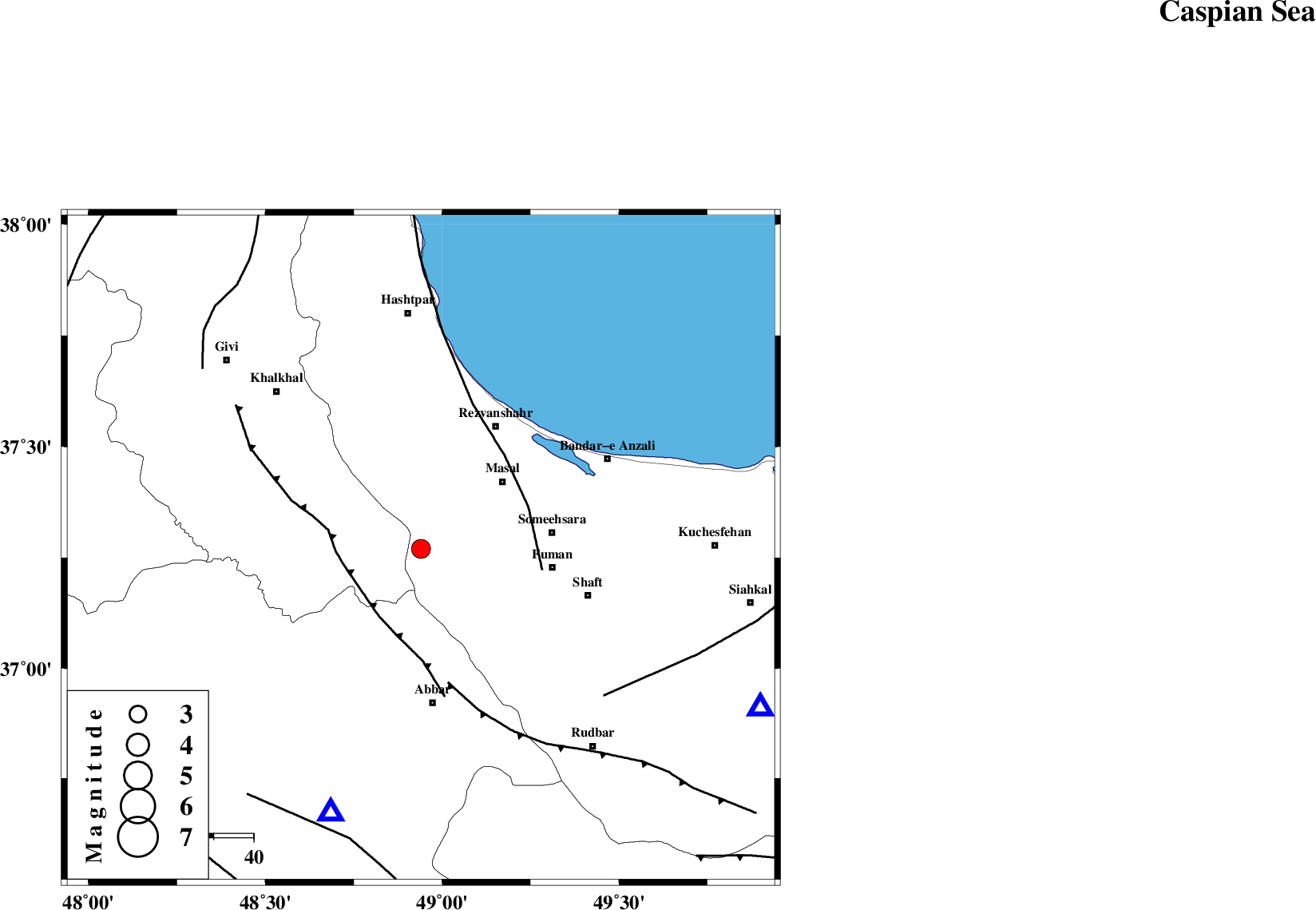

| Location | Lat:37.27 Lon: 48.94 |
| Region | Gilan Province, 39 km North of Abbar |
Nearest Cities |
|
| 15 km East of Shal, Ardebil Province | |
| 20 km West of Bazarjomeh, Gilan Province | |
| 24 km South East of Kalur, Ardebil Province | |
| 25 km East of Karin, Ardebil Province | |
| 25 km North West of Balamakolovan, Gilan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MASULEL_F (Length: 90 km) , Distance to epicenter: 18 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 29 km | |
| RUDBAR_F (Length: 93 km) , Distance to epicenter: 34 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >5 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 146274 | IIEES SC | ZNJK | Z | 550 | 1 | 2019-10-05 14:27:08 | 2019-10-06 08:27:00 | n |
| 146275 | IIEES SC | QABG | Z | 58 | 1 | 2019-10-05 14:27:15 | 2019-10-06 08:27:00 | n |
| 146276 | IIEES SC | CHTH | Z | 190 | 1 | 2019-10-05 14:27:55 | 2019-10-06 08:27:00 | n |
| 146277 | IIEES SC | MAHB | Z | 110 | 1 | 2019-10-05 14:27:31 | 2019-10-06 08:27:00 | n |
| 146278 | IIEES SC | ASAO | Z | 69 | 1 | 2019-10-05 14:27:39 | 2019-10-06 08:27:00 | n |
| 146279 | IIEES SC | DAMV | Z | 41 | 1 | 2019-10-05 14:27:40 | 2019-10-06 08:27:00 | n |
| 146280 | IIEES SC | SRSL | Z | 60 | 1 | 2019-10-05 14:27:37 | 2019-10-06 08:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ZNJK | Z | IP | I | 2019-10-05 14:26:54 | -0.1 | y | 66 | 199 | |||
| IIEES SC | QABG | N | IP | I | 2019-10-05 14:27:11 | 0 | y | 177 | 162 | |||
| IIEES SC | THKV | N | IP | I | 2019-10-05 14:27:18 | -0.1 | y | 233 | 131 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-10-05 14:27:19 | -1.1 | y | 244 | 128 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-10-05 14:27:26 | -0.1 | y | 289 | 259 | |||
| IIEES SC | ASAO | N | IP | I | 2019-10-05 14:27:29 | 0.3 | y | 322 | 162 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-10-05 14:27:30 | 0.3 | y | 322 | 124 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-10-05 14:27:31 | 0.1 | y | 333 | 249 | |||
