Map Title

Magnitude
 3
Date & Time (UTC) 2019-10-08 21:46:05.1
Date & Time (Local) 1398/7/17  01:16:05.1

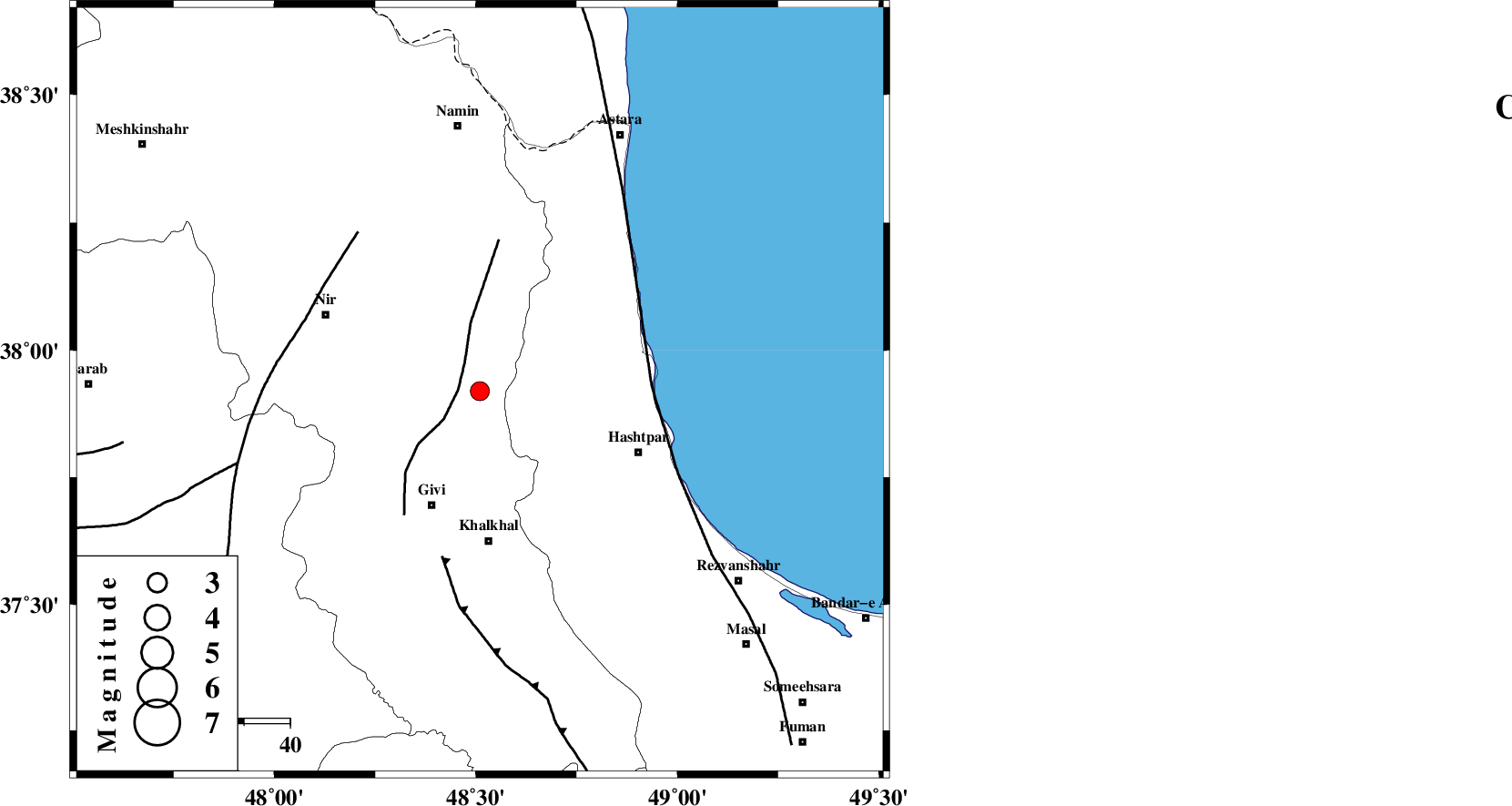

Location Lat:37.92 Lon: 48.51
Region Ardebil Province, 33 km North of Khalkhal
Nearest Cities
16 km South of Budalalu, Ardebil Province
20 km South East of Mehmandust, Ardebil Province
23 km East of Kuraeim, Ardebil Province
24 km South of Hir, Ardebil Province
27 km North East of Givi, Ardebil Province
Depth 8 km
Agency
Faults within 150 km:
SANGAVAR_F (Length: 61 km) , Distance to epicenter: 5 km
MASULEL_F (Length: 90 km) , Distance to epicenter: 37 km
TALESH_F (Length: 258 km) , Distance to epicenter: 37 km
Number of Phases 13
RMS 0.8
Number of Stations 13
Error in Latitude >3 km
Error in Longitude 0 km
Error in Depth 14 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
146379IIEES SCGRMIZ 56012019-10-08 21:46:432019-10-09 08:41:00n
146380IIEES SCZNJKZ 24012019-10-08 21:46:462019-10-09 08:41:00n
146381IIEES SCQABGZ 2212019-10-08 21:47:252019-10-09 08:41:00n
146382IIEES SCMAHBZ 3912019-10-08 21:47:332019-10-09 08:41:00n
146383IIEES SCTHKVZ 10012019-10-08 21:47:352019-10-09 08:41:00n
146384IIEES SCCHTHZ 3512019-10-08 21:47:432019-10-09 08:41:00n
146385IIEES SCSNGEZ 2312019-10-08 21:47:382019-10-09 08:41:00n
146386IIEES SCSRSLZ 2812019-10-08 21:47:452019-10-09 08:41:00n
146387IIEES SCASAOZ 2812019-10-08 21:48:012019-10-09 08:41:00n
146388IIEES SCDAMVZ 1712019-10-08 21:48:032019-10-09 08:41:00n
146389IIEES SCKHMZZ 1612019-10-08 21:48:372019-10-09 08:41:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCGRMIE IS I2019-10-08 21:46:390.3y111332
IIEES SCGRMIZ IP I2019-10-08 21:46:24-0.5y111332
IIEES SCZNJKZ IP I2019-10-08 21:46:25-3y144173
IIEES SCAZRN IP I2019-10-08 21:46:40-0.8y222263
IIEES SCQABGN IP I2019-10-08 21:46:45-1y266159
IIEES SCMAHBN IP I2019-10-08 21:46:491.1y278243
IIEES SCTHKVZ IP I2019-10-08 21:46:520.6y311136
IIEES SCCHTHZ IP I2019-10-08 21:46:540.6y322134
IIEES SCSNGEZ IP I2019-10-08 21:46:54-0.3y333198
IIEES SCSRSLZ IP I2019-10-08 21:46:551y333235
IIEES SCASAOZ IP I2019-10-08 21:47:02-0.5y400160
IIEES SCDAMVN IP I2019-10-08 21:47:030.4y400129
IIEES SCKHMZZ IP I2019-10-08 21:47:12-1.4y478164
