Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2019-10-11 21:18:53.2 |
| Date & Time (Local) | 1398/7/20 00:48:53.2 |

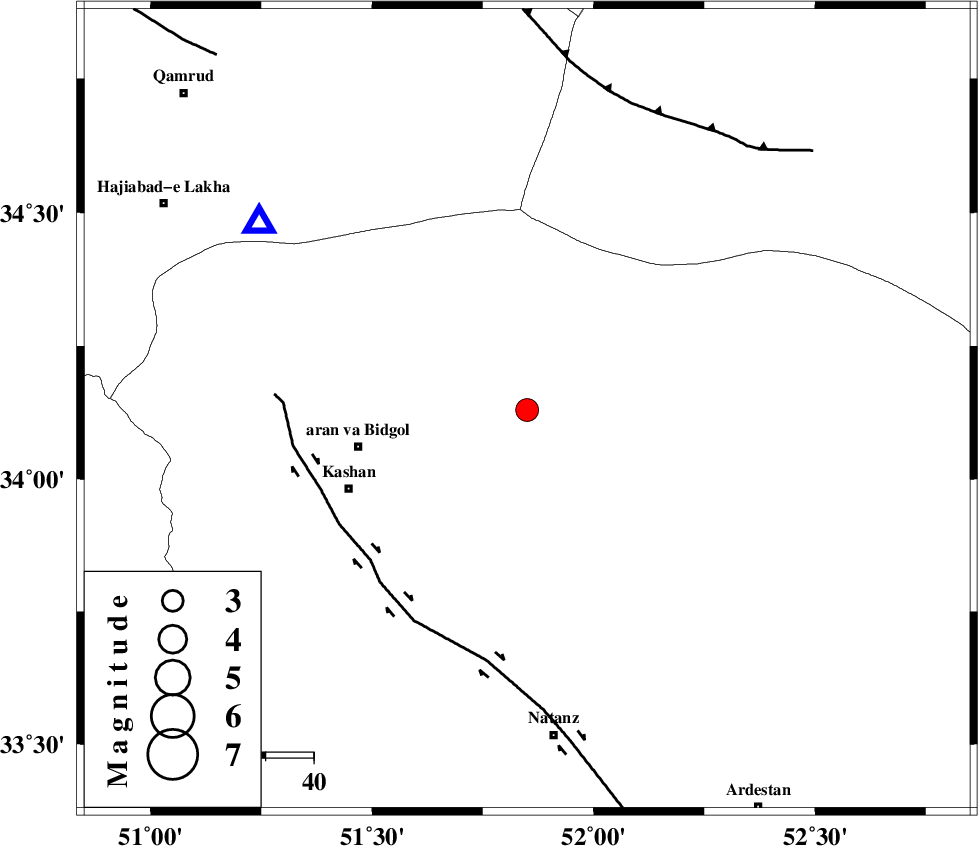

| Location | Lat:34.13 Lon: 51.85 |
| Region | Esfahan Province, 36 km -East of Aran va bidgol |
Nearest Cities |
|
| 19 km South of Marnejab, Esfahan Province | |
| 25 km North of Abuzeidabad, Esfahan Province | |
| 33 km North of Hoseynabad, Esfahan Province | |
| 36 km North East of Aran va bidgol, Esfahan Province | |
| 41 km North East of Kashan, Esfahan Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| KASHAN_F (Length: 44 km) , Distance to epicenter: 45 km | |
| ZEFREH_F (Length: 124 km) , Distance to epicenter: 47 km | |
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 67 km | |
| Number of Phases | 12 |
| RMS | 0.8 |
| Number of Stations | 12 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 12 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 146455 | IIEES SC | GHVR | Z | 1400 | 1 | 2019-10-11 21:19:16 | 2019-10-12 11:57:00 | n |
| 146456 | IIEES SC | DAMV | Z | 530 | 1 | 2019-10-11 21:19:42 | 2019-10-12 11:57:00 | n |
| 146457 | IIEES SC | ASAO | Z | 200 | 1 | 2019-10-11 21:19:49 | 2019-10-12 11:57:00 | n |
| 146458 | IIEES SC | KHMZ | Z | 760 | 1 | 2019-10-11 21:19:46 | 2019-10-12 11:57:00 | n |
| 146459 | IIEES SC | CHTH | Z | 180 | 1 | 2019-10-11 21:19:58 | 2019-10-12 11:57:00 | n |
| 146460 | IIEES SC | THKV | Z | 270 | 1 | 2019-10-11 21:19:58 | 2019-10-12 11:57:00 | n |
| 146461 | IIEES SC | ANJ | Z | 130 | 1 | 2019-10-11 21:20:01 | 2019-10-12 11:57:00 | n |
| 146462 | IIEES SC | QABG | Z | 40 | 1 | 2019-10-11 21:20:11 | 2019-10-12 11:57:00 | n |
| 146463 | IIEES SC | GLO | Z | 80 | 1 | 2019-10-11 21:20:35 | 2019-10-12 11:57:00 | n |
| 146464 | IIEES SC | YZKH | Z | 50 | 1 | 2019-10-11 21:20:25 | 2019-10-12 11:57:00 | n |
| 146465 | IIEES SC | KLNJ | Z | 19 | 1 | 2019-10-11 21:20:38 | 2019-10-12 11:57:00 | n |
| 146466 | IIEES SC | ZNJK | Z | 16 | 1 | 2019-10-11 21:20:48 | 2019-10-12 11:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GHVR | Z | IP | I | 2019-10-11 21:19:06 | 0.9 | y | 66 | 305 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-10-11 21:19:20 | -0.6 | y | 166 | 4 | |||
| IIEES SC | ASAO | N | IP | I | 2019-10-11 21:19:22 | 0 | y | 177 | 285 | |||
| IIEES SC | KHMZ | N | IP | I | 2019-10-11 21:19:22 | -0.1 | y | 177 | 256 | |||
| IIEES SC | CHTH | N | IP | I | 2019-10-11 21:19:26 | -0.7 | y | 211 | 341 | |||
| IIEES SC | THKV | N | IP | I | 2019-10-11 21:19:28 | -0.5 | y | 222 | 336 | |||
| IIEES SC | ANJ | N | IP | I | 2019-10-11 21:19:32 | 1.1 | y | 244 | 52 | |||
| IIEES SC | QABG | Z | IP | I | 2019-10-11 21:19:35 | -0.4 | y | 266 | 310 | |||
| IIEES SC | GLO | Z | IP | I | 2019-10-11 21:19:42 | 1.2 | y | 322 | 34 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-10-11 21:19:40 | -0.8 | y | 322 | 127 | |||
| IIEES SC | KLNJ | N | IP | I | 2019-10-11 21:19:45 | 1 | y | 344 | 184 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-10-11 21:19:51 | -0.6 | y | 400 | 314 | |||
