Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2019-10-21 12:06:32.8 |
| Date & Time (Local) | 1398/7/29 15:36:32.8 |

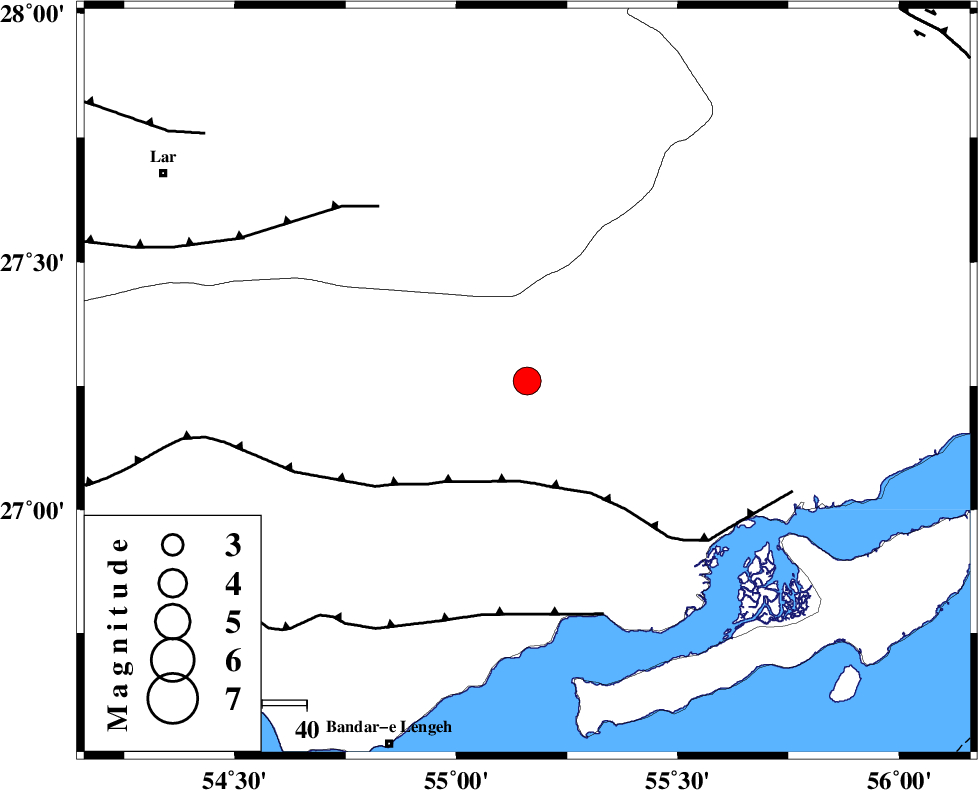

| Location | Lat:27.26 Lon: 55.16 |
| Region | Hormozgan Province, 79 km -East of Bastak |
Nearest Cities |
|
| 55 km North West of Bandar-e khamir, Hormozgan Province | |
| 72 km South West of Darz, Fars Province | |
| 79 km North East of Bastak, Hormozgan Province | |
| 84 km South West of Fin, Hormozgan Province | |
| 87 km North East of Bandar-e lengeh, Hormozgan Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 22 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 51 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 53 km | |
| Number of Phases | 16 |
| RMS | 0.7 |
| Number of Stations | 16 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 146887 | IIEES SC | BNDS | Z | 2900 | 1 | 2019-10-21 12:07:12 | 2019-10-21 04:14:00 | n |
| 146888 | IIEES SC | LMD1 | Z | 4300 | 1 | 2019-10-21 12:07:33 | 2019-10-21 04:14:00 | n |
| 146889 | IIEES SC | KLNJ | Z | 120 | 1 | 2019-10-21 12:08:48 | 2019-10-21 04:14:00 | n |
| 146890 | IIEES SC | CHBR | Z | 82 | 1 | 2019-10-21 12:08:04 | 2019-10-21 04:14:00 | n |
| 146891 | IIEES SC | YZKH | Z | 74 | 1 | 2019-10-21 12:07:53 | 2019-10-21 04:14:00 | n |
| 146892 | IIEES SC | BSRN | Z | 35 | 1 | 2019-10-21 12:10:01 | 2019-10-21 04:14:00 | n |
| 146893 | IIEES SC | NASN | Z | 46 | 1 | 2019-10-21 12:08:03 | 2019-10-21 04:14:00 | n |
| 146894 | IIEES SC | SRVN | Z | 75 | 1 | 2019-10-21 12:08:12 | 2019-10-21 04:14:00 | n |
| 146895 | IIEES SC | TABS | Z | 48 | 1 | 2019-10-21 12:10:27 | 2019-10-21 04:14:00 | n |
| 146896 | IIEES SC | BSR2 | Z | 400 | 1 | 2019-10-21 12:08:21 | 2019-10-21 04:14:00 | n |
| 146897 | IIEES SC | SHRT | Z | 15 | 1 | 2019-10-21 12:08:30 | 2019-10-21 04:14:00 | n |
| 146898 | IIEES SC | KHMZ | Z | 51 | 1 | 2019-10-21 12:10:00 | 2019-10-21 04:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | Z | IP | I | 2019-10-21 12:06:52 | 2.2 | y | 100 | 81 | |||
| IIEES SC | LMD1 | N | IS | I | 2019-10-21 12:07:30 | 0.5 | y | 200 | 273 | |||
| IIEES SC | LMD1 | Z | IP | I | 2019-10-21 12:07:04 | -0.6 | y | 200 | 273 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-10-21 12:07:48 | -0.6 | y | 544 | 320 | |||
| IIEES SC | CHBR | Z | IP | I | 2019-10-21 12:07:50 | -0.2 | y | 567 | 109 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-10-21 12:07:52 | -0.2 | y | 567 | 354 | |||
| IIEES SC | BSRN | Z | IP | I | 2019-10-21 12:08:01 | -0.2 | y | 644 | 36 | |||
| IIEES SC | NASN | Z | IP | I | 2019-10-21 12:08:01 | -0.9 | y | 656 | 340 | |||
| IIEES SC | SRVN | Z | IP | I | 2019-10-21 12:08:10 | 0.5 | y | 711 | 89 | |||
| IIEES SC | TABS | Z | IP | I | 2019-10-21 12:08:12 | 0.1 | y | 733 | 15 | |||
| IIEES SC | BSR2 | Z | IP | I | 2019-10-21 12:08:21 | -0.4 | y | 811 | 295 | |||
| IIEES SC | SHRT | Z | IP | I | 2019-10-21 12:08:29 | 0.8 | y | 867 | 35 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-10-21 12:08:28 | -1.7 | y | 878 | 325 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-10-21 12:08:37 | -1.5 | y | 945 | 329 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-10-21 12:08:41 | -0.8 | y | 978 | 342 | |||
| IIEES SC | GLO | Z | IP | I | 2019-10-21 12:08:50 | 0.8 | y | 1034 | 353 | |||
