Event Specification
Magnitude |
4.1 |
| Date & Time (UTC) | 2019-11-07 22:50:55.7 |
| Date & Time (Local) | 1398/8/17 02:20:55.7 |
| Location | Lat:37.74 Lon: 47.49 |
| Region | Azarbaijan Sharghi Province, 22 km South of Sarab |
Nearest Cities |
|
| 11 km of Asbforushan, Azarbaijan Sharghi Province | |
| 15 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 18 km South East of Abarghan, Azarbaijan Sharghi Province | |
| 18 km North of Torkamanchay, Azarbaijan Sharghi Province | |
| 19 km North West of Eshlaq, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |

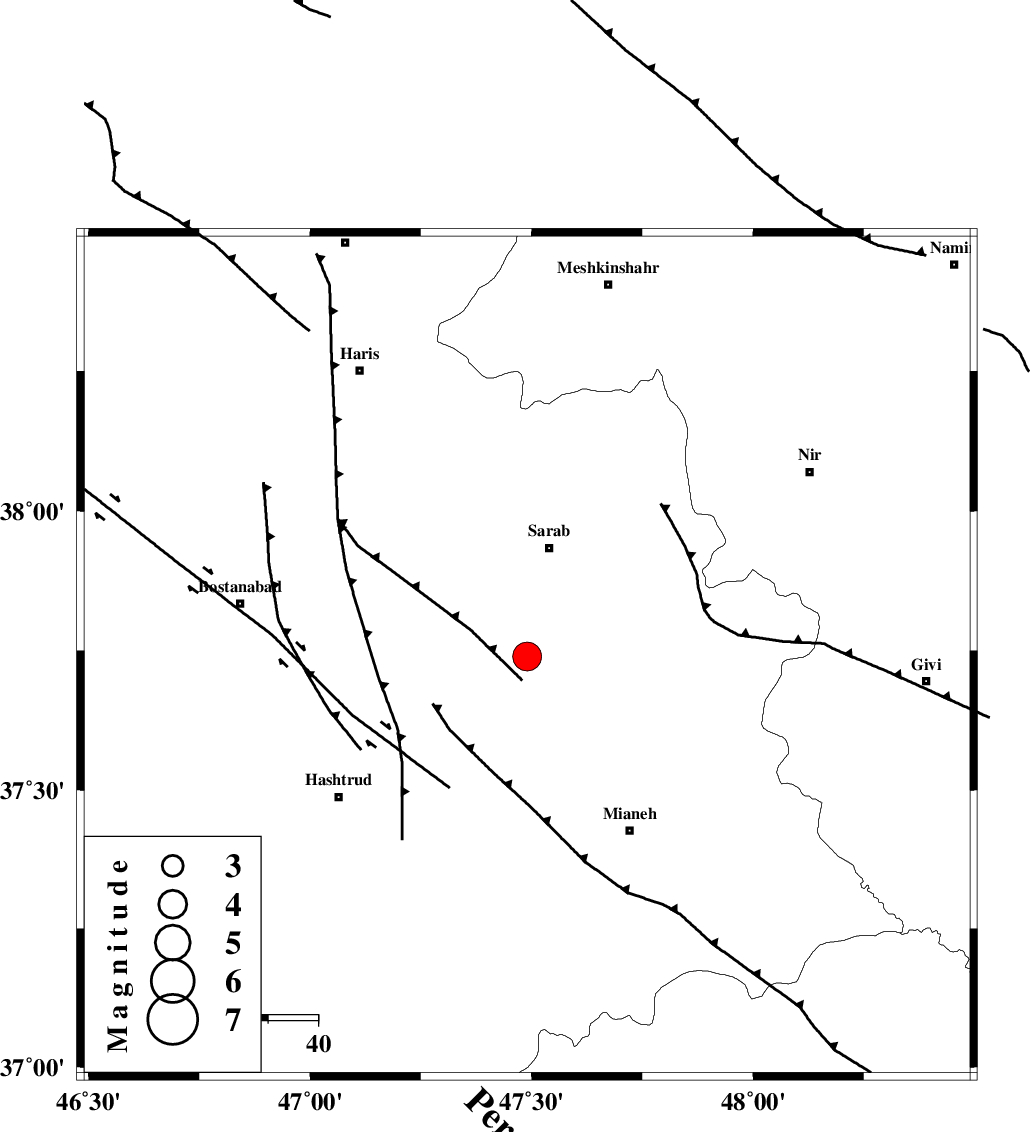

Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 30 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 73 km | |
| Number of Phases | 7 |
| RMS | 0.7 |
| Number of Stations | 7 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147641 | IIEES SC | GRMI | Z | 2100 | 1 | 2019-11-07 22:51:19 | 2019-11-08 10:57:00 | n |
| 147642 | IIEES SC | AZR | Z | 7800 | 1 | 2019-11-07 22:51:41 | 2019-11-08 10:57:00 | n |
| 147643 | IIEES SC | ZNJK | Z | 3.2 | 1 | 2019-11-07 22:51:59 | 2019-11-08 10:57:00 | n |
| 147644 | IIEES SC | MAHB | Z | 3200 | 1 | 2019-11-07 22:51:50 | 2019-11-08 10:57:00 | n |
| 147645 | IIEES SC | SRSL | Z | 2400 | 1 | 2019-11-07 22:51:38 | 2019-11-08 10:57:00 | n |
| 147646 | IIEES SC | SNGE | Z | 6.7 | 1 | 2019-11-07 22:52:14 | 2019-11-08 10:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-07 22:51:16 | 0.1 | y | 122 | 17 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-07 22:51:17 | -0.1 | y | 133 | 267 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-07 22:51:20 | -1.7 | y | 155 | 138 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-07 22:51:26 | -0.7 | y | 189 | 236 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-07 22:51:35 | 0.7 | y | 244 | 227 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-07 22:51:40 | 0.8 | y | 289 | 140 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-07 22:51:41 | 1.1 | y | 289 | 182 | |||
