Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2019-11-08 06:33:21.7 |
| Date & Time (Local) | 1398/8/17 10:03:21.7 |
| Location | Lat:37.78 Lon: 47.51 |
| Region | Azarbaijan Sharghi Province, 17 km South of Sarab |
Nearest Cities |
|
| 7 km of Asbforushan, Azarbaijan Sharghi Province | |
| 16 km East of Abarghan, Azarbaijan Sharghi Province | |
| 17 km South of Sarab, Azarbaijan Sharghi Province | |
| 17 km West of Pataveh, Azarbaijan Sharghi Province | |
| 20 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |

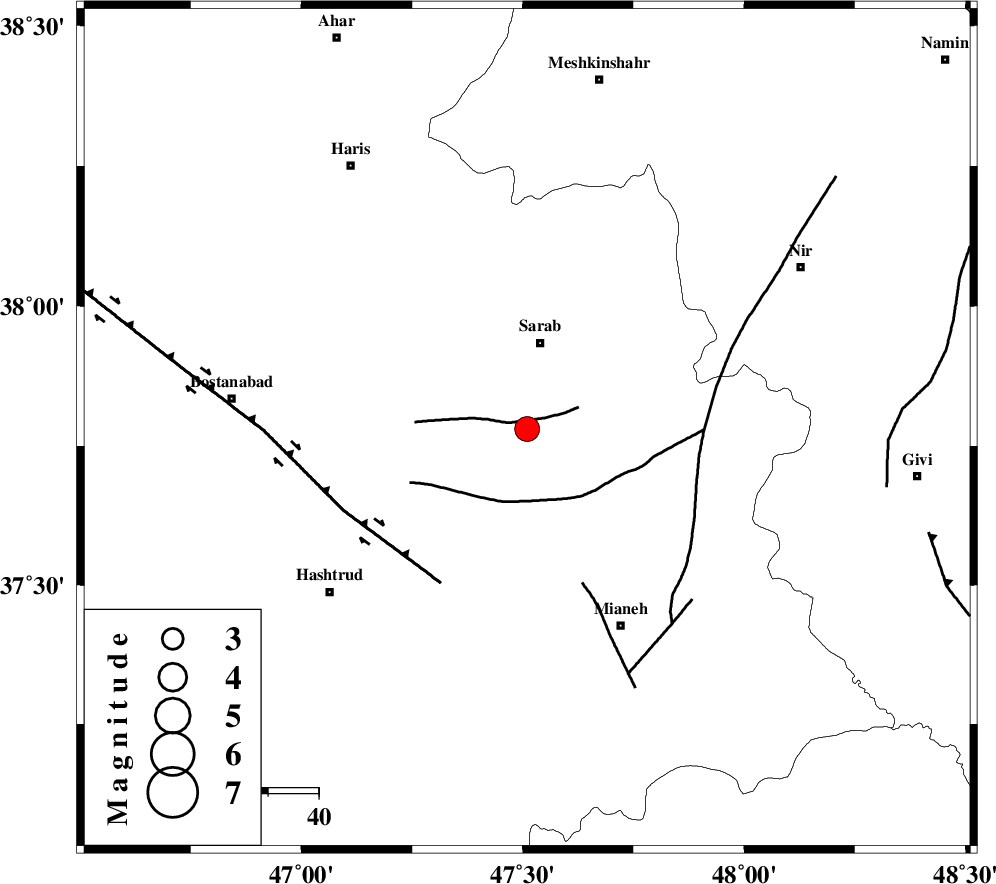

Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 6 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 35 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 72 km | |
| Number of Phases | 11 |
| RMS | 0.8 |
| Number of Stations | 10 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 11 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147668 | IIEES SC | GRMI | Z | 300 | 1 | 2019-11-08 06:34:04 | 2019-11-08 12:15:00 | n |
| 147669 | IIEES SC | AZR | Z | 1200 | 1 | 2019-11-08 06:34:04 | 2019-11-08 12:15:00 | n |
| 147670 | IIEES SC | ZNJK | Z | 4.7 | 1 | 2019-11-08 06:34:23 | 2019-11-08 12:15:00 | n |
| 147671 | IIEES SC | MAHB | Z | 340 | 1 | 2019-11-08 06:34:20 | 2019-11-08 12:15:00 | n |
| 147672 | IIEES SC | SRSL | Z | 140 | 1 | 2019-11-08 06:34:40 | 2019-11-08 12:15:00 | n |
| 147673 | IIEES SC | QABG | Z | 39 | 1 | 2019-11-08 06:34:46 | 2019-11-08 12:15:00 | n |
| 147674 | IIEES SC | SNGE | Z | 6.3 | 1 | 2019-11-08 06:34:45 | 2019-11-08 12:15:00 | n |
| 147675 | IIEES SC | THKV | Z | 94 | 1 | 2019-11-08 06:35:06 | 2019-11-08 12:15:00 | n |
| 147676 | IIEES SC | CHTH | Z | 2.5 | 1 | 2019-11-08 06:35:10 | 2019-11-08 12:15:00 | n |
| 147677 | IIEES SC | KHMZ | Z | 9.6 | 1 | 2019-11-08 06:35:54 | 2019-11-08 12:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-08 06:33:41 | 0.1 | y | 122 | 16 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-08 06:33:43 | -0.3 | y | 133 | 265 | |||
| IIEES SC | ZNJK | N | IP | I | 2019-11-08 06:33:46 | -1.5 | y | 166 | 140 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-08 06:33:53 | -0.3 | y | 200 | 235 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-08 06:34:02 | 0.9 | y | 255 | 227 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-08 06:34:05 | -0.5 | y | 300 | 141 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-08 06:34:07 | 1 | y | 300 | 183 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-08 06:34:15 | 0.1 | y | 366 | 125 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-11-08 06:34:23 | 5.7 | y | 389 | 123 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-08 06:34:33 | 1.4 | y | 500 | 154 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-11-08 06:35:02 | -1.3 | n | 4 | 756 | 91 | ||
