Event Specification
Magnitude |
4.1 |
| Date & Time (UTC) | 2019-11-07 22:55:42.0 |
| Date & Time (Local) | 1398/8/17 02:25:42.0 |

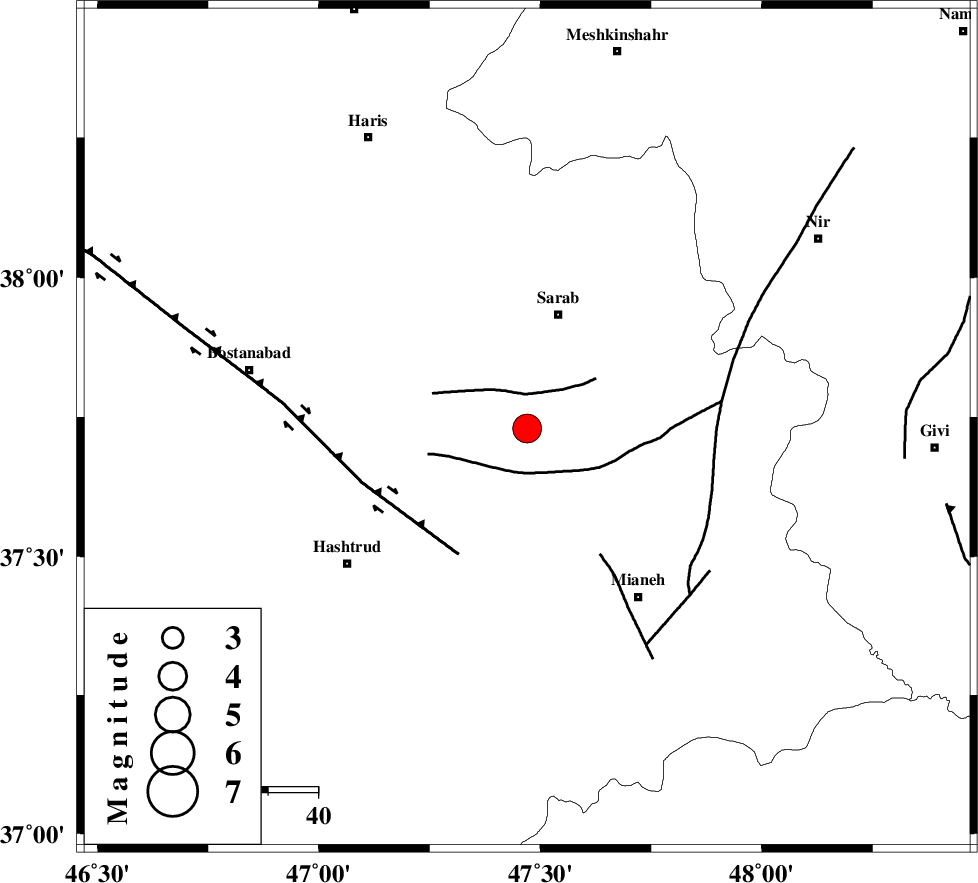

| Location | Lat:37.73 Lon: 47.47 |
| Region | Azarbaijan Sharghi Province, 24 km South of Sarab |
Nearest Cities |
|
| 13 km South of Asbforushan, Azarbaijan Sharghi Province | |
| 14 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 17 km North of Torkamanchay, Azarbaijan Sharghi Province | |
| 18 km South of Abarghan, Azarbaijan Sharghi Province | |
| 19 km North East of Qaribdust, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 29 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 75 km | |
| Number of Phases | 10 |
| RMS | 0.8 |
| Number of Stations | 9 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 16 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147717 | IIEES SC | GRMI | Z | 1300 | 1 | 2019-11-07 22:56:25 | 2019-11-08 01:04:00 | n |
| 147718 | IIEES SC | AZR | Z | 5900 | 1 | 2019-11-07 22:56:30 | 2019-11-08 01:04:00 | n |
| 147719 | IIEES SC | ZNJK | Z | 4.6 | 1 | 2019-11-07 22:56:49 | 2019-11-08 01:04:00 | n |
| 147720 | IIEES SC | MAHB | Z | 1200 | 1 | 2019-11-07 22:56:39 | 2019-11-08 01:04:00 | n |
| 147721 | IIEES SC | SRSL | Z | 610 | 1 | 2019-11-07 22:57:01 | 2019-11-08 01:04:00 | n |
| 147722 | IIEES SC | SNGE | Z | 6.6 | 1 | 2019-11-07 22:56:52 | 2019-11-08 01:04:00 | n |
| 147723 | IIEES SC | THKV | Z | 320 | 1 | 2019-11-07 22:57:27 | 2019-11-08 01:04:00 | n |
| 147724 | IIEES SC | CHTH | Z | 15 | 1 | 2019-11-07 22:57:28 | 2019-11-08 01:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | N | IP | I | 2019-11-07 22:56:02 | 0.1 | y | 122 | 17 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-07 22:56:03 | 0 | y | 133 | 267 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-07 22:56:06 | -1.7 | y | 155 | 138 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-07 22:56:12 | -0.5 | y | 189 | 235 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-07 22:56:20 | -0.2 | y | 244 | 227 | |||
| IIEES SC | SNGE | N | IP | I | 2019-11-07 22:56:28 | 1.8 | y | 289 | 182 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-07 22:56:25 | -1 | y | 289 | 140 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-07 22:56:35 | 0.5 | y | 366 | 124 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-11-07 22:56:45 | 7.5 | y | 389 | 122 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-11-07 22:56:48 | 0.7 | n | 4 | 467 | 120 | ||
