Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2019-11-08 21:59:17.9 |
| Date & Time (Local) | 1398/8/18 01:29:17.9 |

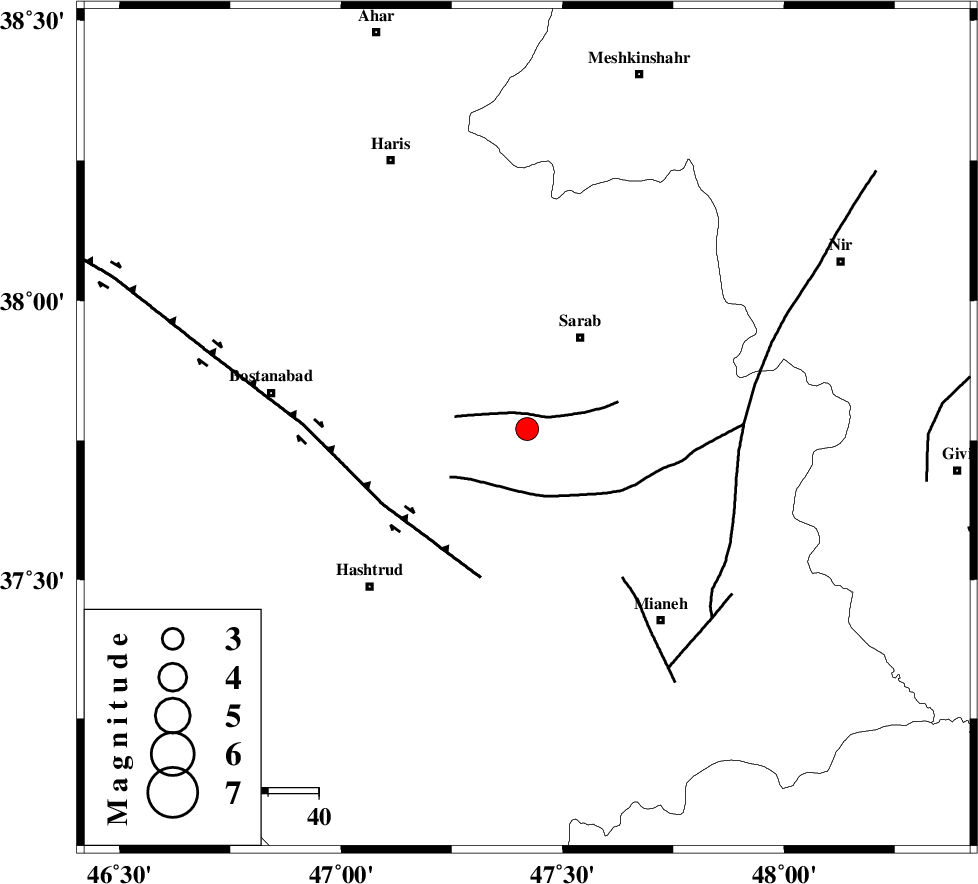

| Location | Lat:37.77 Lon: 47.42 |
| Region | Azarbaijan Sharghi Province, 21 km South-West of Sarab |
Nearest Cities |
|
| 12 km West of Asbforushan, Azarbaijan Sharghi Province | |
| 12 km South of Abarghan, Azarbaijan Sharghi Province | |
| 19 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 20 km North of Qaribdust, Azarbaijan Sharghi Province | |
| 20 km North of Torkamanchay, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 3 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 31 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 80 km | |
| Number of Phases | 15 |
| RMS | 0.8 |
| Number of Stations | 10 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 12 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147756 | IIEES SC | GRMI | Z | 260 | 1 | 2019-11-08 22:00:01 | 2019-11-09 09:47:00 | n |
| 147757 | IIEES SC | AZR | Z | 960 | 1 | 2019-11-08 22:00:09 | 2019-11-09 09:47:00 | n |
| 147758 | IIEES SC | ZNJK | Z | 4.2 | 1 | 2019-11-08 22:00:25 | 2019-11-09 09:47:00 | n |
| 147759 | IIEES SC | MAHB | Z | 190 | 1 | 2019-11-08 22:00:17 | 2019-11-09 09:47:00 | n |
| 147760 | IIEES SC | SRSL | Z | 59 | 1 | 2019-11-08 22:00:36 | 2019-11-09 09:47:00 | n |
| 147761 | IIEES SC | SNGE | Z | 15 | 1 | 2019-11-08 22:01:01 | 2019-11-09 09:47:00 | n |
| 147762 | IIEES SC | QABG | Z | 11 | 1 | 2019-11-08 22:00:53 | 2019-11-09 09:47:00 | n |
| 147763 | IIEES SC | THKV | Z | 39 | 1 | 2019-11-08 22:01:10 | 2019-11-09 09:47:00 | n |
| 147764 | IIEES SC | GHVR | Z | 30 | 1 | 2019-11-08 22:01:48 | 2019-11-09 09:47:00 | n |
| 147765 | IIEES SC | KHMZ | Z | 6.1 | 1 | 2019-11-08 22:01:59 | 2019-11-09 09:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-08 21:59:38 | 0 | y | 122 | 20 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-08 21:59:39 | 0.2 | y | 122 | 265 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-08 21:59:42 | -2.4 | y | 166 | 137 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-08 21:59:47 | -0.7 | y | 189 | 234 | |||
| IIEES SC | SRSL | N | IP | I | 2019-11-08 21:59:57 | 0.8 | y | 244 | 226 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-08 22:00:03 | 0.4 | y | 300 | 181 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-08 22:00:01 | -1.2 | y | 300 | 140 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-08 22:00:11 | 0.1 | y | 366 | 124 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-11-08 22:00:14 | 0 | n | 4 | 389 | 122 | ||
| IIEES SC | DAMV | Z | IP | I | 2019-11-08 22:00:16 | -8.3 | n | 4 | 467 | 120 | ||
| IIEES SC | ILBA | Z | IP | I | 2019-11-08 22:00:32 | 8.2 | n | 4 | 478 | 193 | ||
| IIEES SC | GHVR | N | IP | I | 2019-11-08 22:00:29 | 1.6 | y | 500 | 137 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-08 22:00:29 | 1.3 | y | 500 | 153 | |||
| IIEES SC | GLO | N | IP | I | 2019-11-08 22:00:38 | 0 | n | 4 | 589 | 104 | ||
| IIEES SC | MRVT | Z | IP | I | 2019-11-08 22:00:58 | -1.6 | n | 4 | 767 | 91 | ||
