Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2019-11-08 18:13:50.0 |
| Date & Time (Local) | 1398/8/17 21:43:50.0 |

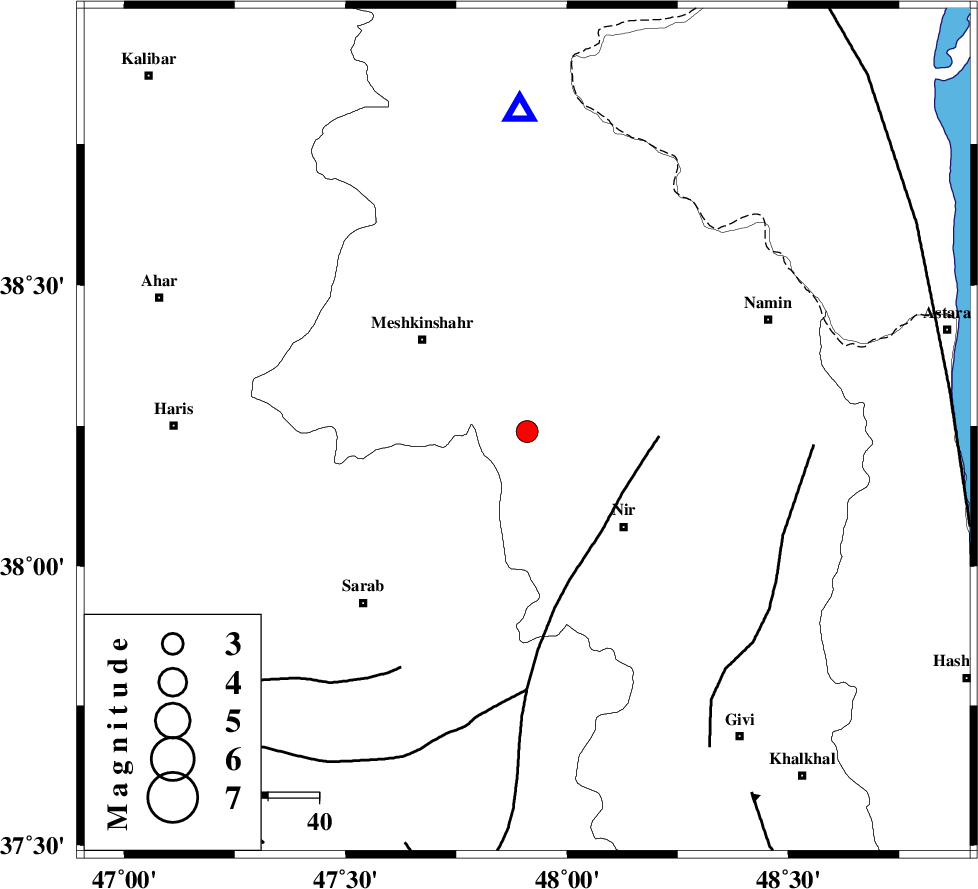

| Location | Lat:38.24 Lon: 47.91 |
| Region | Ardebil Province, 27 km North-West of Nir |
Nearest Cities |
|
| 17 km East of Manueil, Ardebil Province | |
| 17 km North West of Eslamabad, Ardebil Province | |
| 18 km North West of Sardabeh, Ardebil Province | |
| 19 km North West of Varniab, Ardebil Province | |
| 20 km North West of Sareyin, Ardebil Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 26 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 55 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 84 km | |
| Number of Phases | 12 |
| RMS | 0.6 |
| Number of Stations | 12 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147766 | IIEES SC | GRMI | Z | 470 | 1 | 2019-11-08 18:14:12 | 2019-11-09 09:58:00 | n |
| 147767 | IIEES SC | AZR | Z | 560 | 1 | 2019-11-08 18:14:53 | 2019-11-09 09:58:00 | n |
| 147768 | IIEES SC | ZNJK | Z | 4 | 1 | 2019-11-08 18:14:31 | 2019-11-09 09:58:00 | n |
| 147769 | IIEES SC | MAHB | Z | 90 | 1 | 2019-11-08 18:15:06 | 2019-11-09 09:58:00 | n |
| 147770 | IIEES SC | SRSL | Z | 37 | 1 | 2019-11-08 18:15:26 | 2019-11-09 09:58:00 | n |
| 147771 | IIEES SC | QABG | Z | 8.2 | 1 | 2019-11-08 18:15:26 | 2019-11-09 09:58:00 | n |
| 147772 | IIEES SC | SNGE | Z | 6.6 | 1 | 2019-11-08 18:15:53 | 2019-11-09 09:58:00 | n |
| 147773 | IIEES SC | THKV | Z | 17 | 1 | 2019-11-08 18:15:42 | 2019-11-09 09:58:00 | n |
| 147774 | IIEES SC | CHTH | Z | 1.6 | 1 | 2019-11-08 18:15:45 | 2019-11-09 09:58:00 | n |
| 147775 | IIEES SC | DAMV | Z | 3.7 | 1 | 2019-11-08 18:16:17 | 2019-11-09 09:58:00 | n |
| 147776 | IIEES SC | KHMZ | Z | 6 | 1 | 2019-11-08 18:16:22 | 2019-11-09 09:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | N | IS | I | 2019-11-08 18:14:09 | 0.1 | y | 66 | 359 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-11-08 18:14:00 | -0.3 | y | 66 | 359 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-08 18:14:19 | -0.2 | y | 177 | 250 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-08 18:14:18 | -2.2 | y | 189 | 158 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-08 18:14:29 | 0.4 | y | 255 | 230 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-08 18:14:38 | 1.1 | y | 311 | 224 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-08 18:14:36 | -1.2 | y | 322 | 152 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-08 18:14:42 | 0.5 | y | 355 | 188 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-08 18:14:43 | 0 | y | 366 | 134 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-11-08 18:14:46 | 0.4 | y | 389 | 132 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-11-08 18:14:56 | 1 | y | 467 | 129 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-08 18:15:04 | 0.1 | y | 533 | 160 | |||
