Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2019-11-08 01:37:28.6 |
| Date & Time (Local) | 1398/8/17 05:07:28.6 |

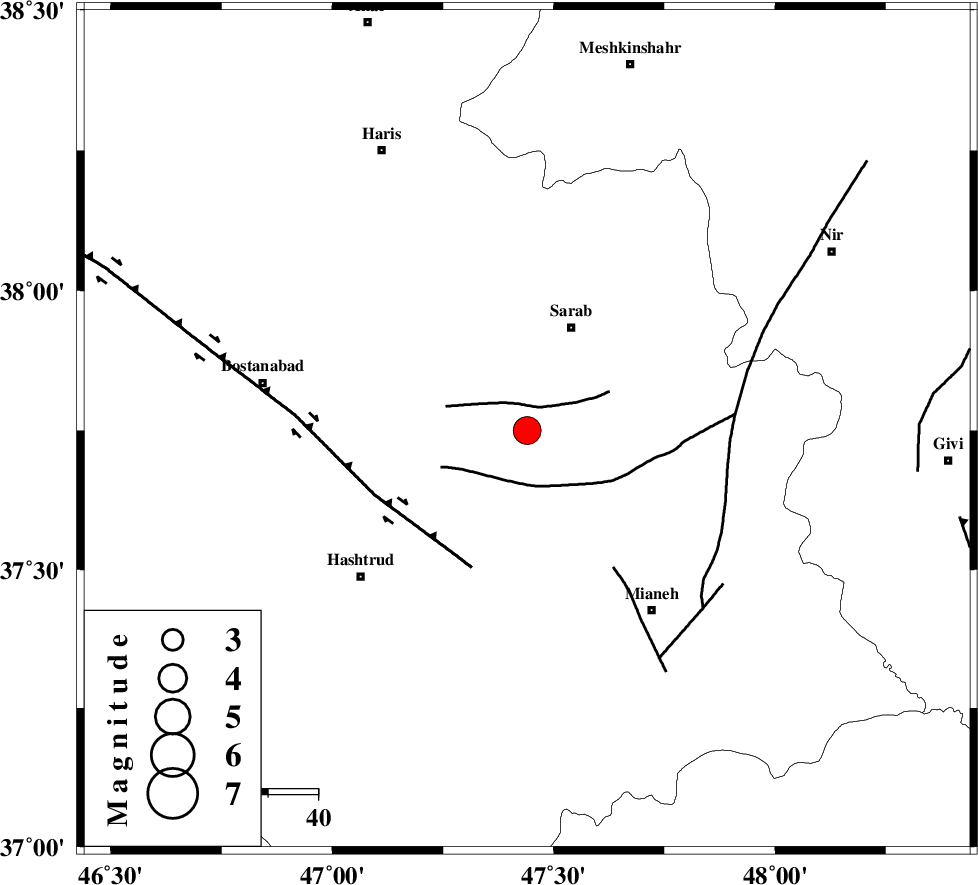

| Location | Lat:37.75 Lon: 47.44 |
| Region | Azarbaijan Sharghi Province, 22 km South-West of Sarab |
Nearest Cities |
|
| 12 km of Asbforushan, Azarbaijan Sharghi Province | |
| 15 km South of Abarghan, Azarbaijan Sharghi Province | |
| 16 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 18 km North of Torkamanchay, Azarbaijan Sharghi Province | |
| 19 km North East of Qaribdust, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 5 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 29 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 78 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | >5 km |
| Error in Longitude | 0 km |
| Error in Depth | 23 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147794 | IIEES SC | GRMI | Z | 2200 | 1 | 2019-11-08 01:38:12 | 2019-11-09 11:09:00 | n |
| 147795 | IIEES SC | AZR | Z | 7000 | 1 | 2019-11-08 01:38:18 | 2019-11-09 11:09:00 | n |
| 147796 | IIEES SC | ZNJK | Z | 3.9 | 1 | 2019-11-08 01:38:54 | 2019-11-09 11:09:00 | n |
| 147797 | IIEES SC | SNGE | Z | 6.7 | 1 | 2019-11-08 01:38:59 | 2019-11-09 11:09:00 | n |
| 147798 | IIEES SC | THKV | Z | 370 | 1 | 2019-11-08 01:39:19 | 2019-11-09 11:09:00 | n |
| 147799 | IIEES SC | GHVR | Z | 260 | 1 | 2019-11-08 01:39:58 | 2019-11-09 11:09:00 | n |
| 147800 | IIEES SC | KHMZ | Z | 51 | 1 | 2019-11-08 01:40:04 | 2019-11-09 11:09:00 | n |
| 147801 | IIEES SC | MRVT | Z | 67 | 1 | 2019-11-08 01:40:29 | 2019-11-09 11:09:00 | n |
| 147802 | IIEES SC | MRVT | Z | 17 | 0.82 | 2019-11-08 01:39:12 | 2019-11-09 11:09:00 | n |
| 147803 | IIEES SC | SHRO | Z | 2.3 | 1 | 2019-11-08 01:40:57 | 2019-11-09 11:09:00 | n |
| 147804 | IIEES SC | SHRO | Z | 19 | 1.14 | 2019-11-08 01:39:30 | 2019-11-09 11:09:00 | n |
| 147805 | IIEES SC | SHRT | Z | 3.5 | 0.91 | 2019-11-08 01:40:20 | 2019-11-09 11:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-08 01:37:49 | 0.1 | y | 122 | 19 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-08 01:37:50 | -0.1 | y | 133 | 267 | |||
| IIEES SC | ZNJK | N | IP | I | 2019-11-08 01:37:53 | -2 | y | 166 | 137 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-08 01:38:13 | 0.3 | y | 300 | 182 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-08 01:38:12 | -0.9 | y | 300 | 140 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-08 01:38:21 | -0.5 | y | 366 | 124 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-11-08 01:38:37 | -0.5 | y | 500 | 137 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-08 01:38:39 | 0.8 | y | 500 | 153 | |||
| IIEES SC | GLO | Z | IP | I | 2019-11-08 01:38:48 | -0.6 | y | 589 | 104 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-11-08 01:39:09 | -1.6 | y | 767 | 91 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-11-08 01:39:14 | 0.2 | y | 789 | 104 | |||
| IIEES SC | BJRD | Z | IP | I | 2019-11-08 01:39:23 | -2.1 | n | 4 | 878 | 90 | ||
| IIEES SC | SHRT | E | IP | I | 2019-11-08 01:40:12 | 0.5 | y | 1245 | 111 | |||
