Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2019-11-08 02:07:21.4 |
| Date & Time (Local) | 1398/8/17 05:37:21.4 |

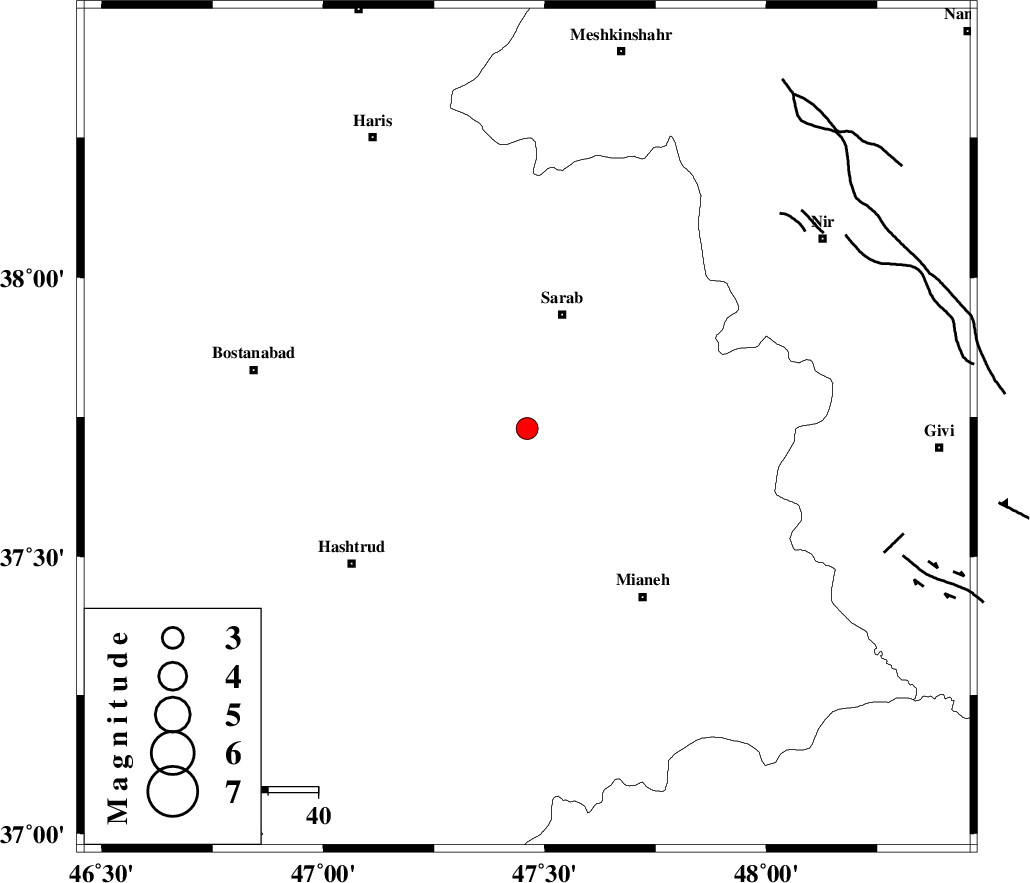

| Location | Lat:37.73 Lon: 47.46 |
| Region | Azarbaijan Sharghi Province, 24 km South of Sarab |
Nearest Cities |
|
| 13 km South of Asbforushan, Azarbaijan Sharghi Province | |
| 14 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 16 km North of Torkamanchay, Azarbaijan Sharghi Province | |
| 18 km South of Abarghan, Azarbaijan Sharghi Province | |
| 18 km North East of Qaribdust, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 28 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 76 km | |
| Number of Phases | 9 |
| RMS | 1.1 |
| Number of Stations | 9 |
| Error in Latitude | >8 km |
| Error in Longitude | 0 km |
| Error in Depth | 15 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147883 | IIEES SC | AZR | Z | 540 | 1 | 2019-11-08 02:08:09 | 2019-11-09 12:44:00 | n |
| 147884 | IIEES SC | ZNJK | Z | 3.2 | 1 | 2019-11-08 02:08:44 | 2019-11-09 12:44:00 | n |
| 147885 | IIEES SC | MAHB | Z | 120 | 1 | 2019-11-08 02:08:20 | 2019-11-09 12:44:00 | n |
| 147886 | IIEES SC | SRSL | Z | 40 | 1 | 2019-11-08 02:08:40 | 2019-11-09 12:44:00 | n |
| 147887 | IIEES SC | SNGE | Z | 6.5 | 1 | 2019-11-08 02:08:42 | 2019-11-09 12:44:00 | n |
| 147888 | IIEES SC | QABG | Z | 7 | 1 | 2019-11-08 02:08:10 | 2019-11-09 12:44:00 | n |
| 147889 | IIEES SC | CHTH | Z | 13 | 1 | 2019-11-08 02:09:28 | 2019-11-09 12:44:00 | n |
| 147890 | IIEES SC | DAMV | Z | 4.1 | 1 | 2019-11-08 02:09:44 | 2019-11-09 12:44:00 | n |
| 147891 | IIEES SC | GHVR | Z | 16 | 1 | 2019-11-08 02:09:23 | 2019-11-09 12:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AZR | E | IP | I | 2019-11-08 02:07:42 | -0.6 | y | 133 | 267 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-08 02:07:44 | -3.5 | y | 155 | 137 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-08 02:07:52 | 0 | y | 189 | 235 | |||
| IIEES SC | SRSL | N | IP | I | 2019-11-08 02:08:01 | 1.3 | y | 244 | 227 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-08 02:08:04 | -1.1 | y | 289 | 182 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-08 02:08:05 | -0.2 | y | 289 | 140 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-11-08 02:08:18 | 1.4 | y | 389 | 122 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-11-08 02:08:28 | 0.8 | y | 467 | 120 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-11-08 02:08:31 | 0.2 | y | 500 | 137 | |||
