Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2019-11-08 00:52:53.7 |
| Date & Time (Local) | 1398/8/17 04:22:53.7 |

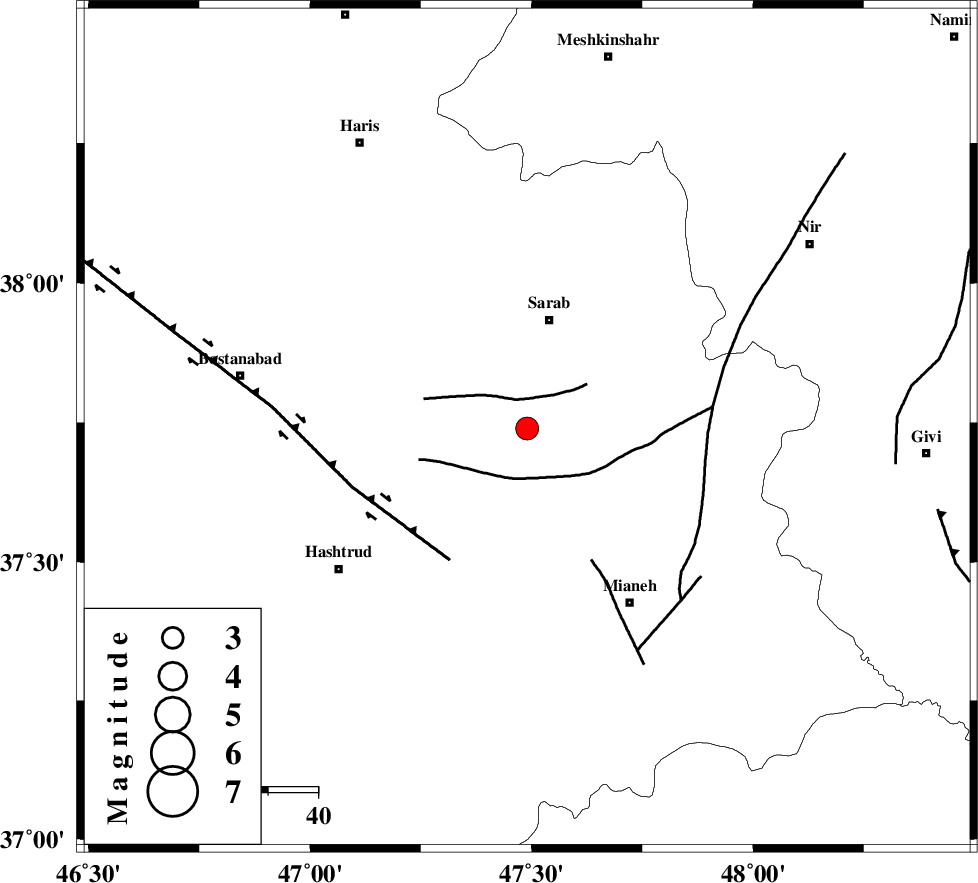

| Location | Lat:37.74 Lon: 47.49 |
| Region | Azarbaijan Sharghi Province, 22 km South of Sarab |
Nearest Cities |
|
| 11 km of Asbforushan, Azarbaijan Sharghi Province | |
| 15 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 18 km South East of Abarghan, Azarbaijan Sharghi Province | |
| 18 km North of Torkamanchay, Azarbaijan Sharghi Province | |
| 19 km North West of Eshlaq, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 30 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 73 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147892 | IIEES SC | GRMI | Z | 200 | 1 | 2019-11-08 00:53:55 | 2019-11-09 02:21:00 | n |
| 147893 | IIEES SC | AZR | Z | 880 | 1 | 2019-11-08 00:53:54 | 2019-11-09 02:21:00 | n |
| 147894 | IIEES SC | ZNJK | Z | 4.2 | 1 | 2019-11-08 00:54:03 | 2019-11-09 02:21:00 | n |
| 147895 | IIEES SC | MAHB | Z | 210 | 1 | 2019-11-08 00:54:24 | 2019-11-09 02:21:00 | n |
| 147896 | IIEES SC | SRSL | Z | 120 | 1 | 2019-11-08 00:54:17 | 2019-11-09 02:21:00 | n |
| 147897 | IIEES SC | QABG | Z | 16 | 1 | 2019-11-08 00:54:51 | 2019-11-09 02:21:00 | n |
| 147898 | IIEES SC | SNGE | Z | 6.5 | 1 | 2019-11-08 00:55:18 | 2019-11-09 02:21:00 | n |
| 147899 | IIEES SC | THKV | Z | 41 | 1 | 2019-11-08 00:55:03 | 2019-11-09 02:21:00 | n |
| 147900 | IIEES SC | ILBA | Z | 2.8 | 1 | 2019-11-08 00:54:47 | 2019-11-09 02:21:00 | n |
| 147901 | IIEES SC | GHVR | Z | 27 | 1 | 2019-11-08 00:55:43 | 2019-11-09 02:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-08 00:53:14 | 0.1 | y | 122 | 17 | |||
| IIEES SC | AZR | N | IP | I | 2019-11-08 00:53:15 | -0.3 | y | 133 | 267 | |||
| IIEES SC | ZNJK | N | IP | I | 2019-11-08 00:53:19 | -0.6 | y | 155 | 138 | |||
| IIEES SC | MAHB | N | IP | I | 2019-11-08 00:53:24 | -0.1 | y | 189 | 236 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-08 00:53:33 | 0.6 | y | 244 | 227 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-08 00:53:37 | -0.6 | y | 289 | 140 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-08 00:53:38 | 0.2 | y | 289 | 182 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-08 00:53:47 | 0.8 | y | 366 | 124 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-11-08 00:54:01 | 1.4 | y | 467 | 194 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-11-08 00:54:02 | -0.4 | y | 500 | 137 | |||
