Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2019-11-07 23:59:52.2 |
| Date & Time (Local) | 1398/8/17 03:29:52.2 |

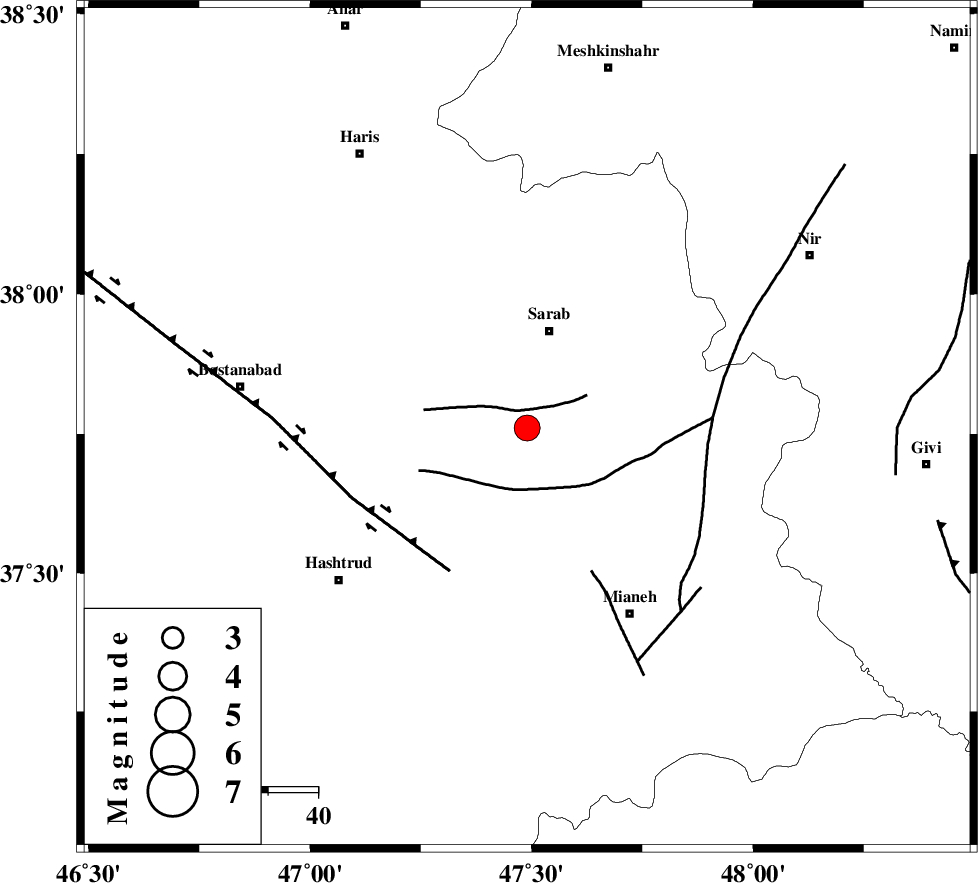

| Location | Lat:37.76 Lon: 47.49 |
| Region | Azarbaijan Sharghi Province, 20 km South of Sarab |
Nearest Cities |
|
| 9 km of Asbforushan, Azarbaijan Sharghi Province | |
| 16 km South East of Abarghan, Azarbaijan Sharghi Province | |
| 18 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 20 km South of Sarab, Azarbaijan Sharghi Province | |
| 20 km West of Pataveh, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 6 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 32 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 73 km | |
| Number of Phases | 9 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147902 | IIEES SC | GRMI | Z | 1000 | 1 | 2019-11-08 00:00:35 | 2019-11-09 02:28:00 | n |
| 147903 | IIEES SC | AZR | Z | 4600 | 1 | 2019-11-08 00:00:42 | 2019-11-09 02:28:00 | n |
| 147904 | IIEES SC | ZNJK | Z | 4 | 1 | 2019-11-08 00:00:31 | 2019-11-09 02:28:00 | n |
| 147905 | IIEES SC | MAHB | Z | 540 | 1 | 2019-11-08 00:00:54 | 2019-11-09 02:28:00 | n |
| 147906 | IIEES SC | SRSL | Z | 220 | 1 | 2019-11-08 00:01:12 | 2019-11-09 02:28:00 | n |
| 147907 | IIEES SC | QABG | Z | 46 | 1 | 2019-11-08 00:01:23 | 2019-11-09 02:28:00 | n |
| 147908 | IIEES SC | SNGE | Z | 7.2 | 1 | 2019-11-08 00:01:02 | 2019-11-09 02:28:00 | n |
| 147909 | IIEES SC | THKV | Z | 80 | 1 | 2019-11-08 00:01:45 | 2019-11-09 02:28:00 | n |
| 147910 | IIEES SC | KHMZ | Z | 18 | 1 | 2019-11-08 00:02:26 | 2019-11-09 02:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-08 00:00:12 | 0.1 | y | 122 | 17 | |||
| IIEES SC | AZR | N | IP | I | 2019-11-08 00:00:14 | 0 | y | 133 | 266 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-08 00:00:17 | -0.9 | y | 155 | 139 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-08 00:00:23 | -0.6 | y | 189 | 235 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-08 00:00:32 | 0.7 | y | 255 | 227 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-08 00:00:36 | -0.1 | y | 289 | 141 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-08 00:00:37 | 0.8 | y | 300 | 182 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-08 00:00:45 | -0.3 | y | 366 | 124 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-08 00:01:03 | 1.6 | y | 500 | 153 | |||
