Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2019-11-09 22:30:34.9 |
| Date & Time (Local) | 1398/8/19 02:00:34.9 |
| Location | Lat:37.79 Lon: 47.52 |
| Region | Azarbaijan Sharghi Province, 16 km South of Sarab |
Nearest Cities |
|
| 5 km of Asbforushan, Azarbaijan Sharghi Province | |
| 15 km East of Abarghan, Azarbaijan Sharghi Province | |
| 16 km South of Sarab, Azarbaijan Sharghi Province | |
| 16 km West of Pataveh, Azarbaijan Sharghi Province | |
| 21 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |

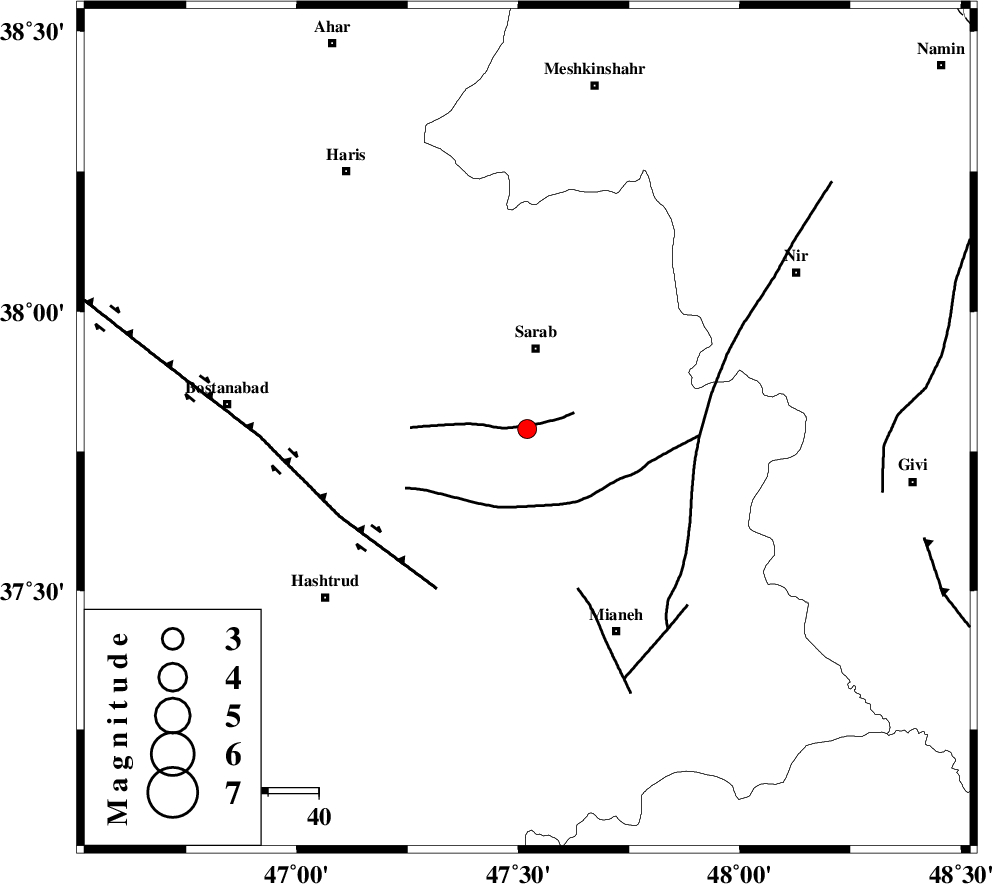

Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 37 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 71 km | |
| Number of Phases | 10 |
| RMS | 0.9 |
| Number of Stations | 10 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 11 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147944 | IIEES SC | GRMI | Z | 73 | 1 | 2019-11-09 22:31:17 | 2019-11-10 08:49:00 | n |
| 147945 | IIEES SC | AZR | Z | 260 | 1 | 2019-11-09 22:31:27 | 2019-11-10 08:49:00 | n |
| 147946 | IIEES SC | ZNJK | Z | 3.8 | 1 | 2019-11-09 22:31:56 | 2019-11-10 08:49:00 | n |
| 147947 | IIEES SC | MAHB | Z | 56 | 1 | 2019-11-09 22:31:33 | 2019-11-10 08:49:00 | n |
| 147948 | IIEES SC | SRSL | Z | 31 | 1 | 2019-11-09 22:31:52 | 2019-11-10 08:49:00 | n |
| 147949 | IIEES SC | SNGE | Z | 54 | 1 | 2019-11-09 22:31:22 | 2019-11-10 08:49:00 | n |
| 147950 | IIEES SC | THKV | Z | 10 | 1 | 2019-11-09 22:32:21 | 2019-11-10 08:49:00 | n |
| 147951 | IIEES SC | ASAO | Z | 4.7 | 1 | 2019-11-09 22:32:16 | 2019-11-10 08:49:00 | n |
| 147952 | IIEES SC | KHMZ | Z | 3.5 | 1 | 2019-11-09 22:32:39 | 2019-11-10 08:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-09 22:30:54 | 0 | y | 122 | 16 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-09 22:30:57 | -0.6 | y | 133 | 265 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-09 22:31:00 | -1.6 | y | 166 | 140 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-09 22:31:07 | 0.3 | y | 200 | 235 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-09 22:31:15 | 1.4 | y | 255 | 227 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-09 22:31:18 | -0.7 | y | 300 | 141 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-09 22:31:20 | 0.1 | y | 300 | 183 | |||
| IIEES SC | THKV | N | IP | I | 2019-11-09 22:31:29 | 1.7 | y | 366 | 125 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-11-09 22:31:35 | -0.1 | y | 422 | 148 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-09 22:31:46 | 1.1 | y | 500 | 154 | |||
