Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2019-11-10 03:35:55.5 |
| Date & Time (Local) | 1398/8/19 07:05:55.5 |

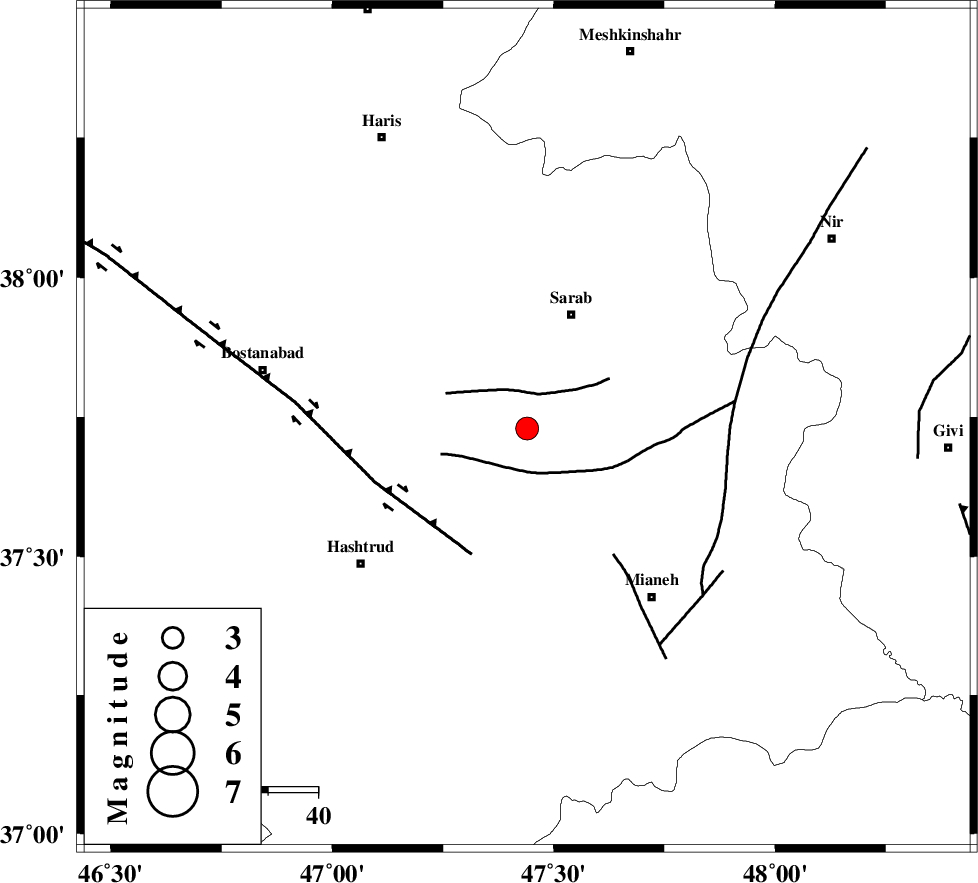

| Location | Lat:37.73 Lon: 47.44 |
| Region | Azarbaijan Sharghi Province, 24 km South-West of Sarab |
Nearest Cities |
|
| 14 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 14 km South of Asbforushan, Azarbaijan Sharghi Province | |
| 16 km North of Torkamanchay, Azarbaijan Sharghi Province | |
| 17 km North East of Qaribdust, Azarbaijan Sharghi Province | |
| 17 km South of Abarghan, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 27 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 78 km | |
| Number of Phases | 10 |
| RMS | 0.6 |
| Number of Stations | 10 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147985 | IIEES SC | GRMI | Z | 900 | 1 | 2019-11-10 03:36:39 | 2019-11-10 08:07:00 | n |
| 147986 | IIEES SC | AZR | Z | 1700 | 1 | 2019-11-10 03:36:44 | 2019-11-10 08:07:00 | n |
| 147987 | IIEES SC | ZNJK | Z | 3.8 | 1 | 2019-11-10 03:36:46 | 2019-11-10 08:07:00 | n |
| 147988 | IIEES SC | SRSL | Z | 180 | 1 | 2019-11-10 03:37:11 | 2019-11-10 08:07:00 | n |
| 147989 | IIEES SC | SNGE | Z | 12 | 1 | 2019-11-10 03:37:25 | 2019-11-10 08:07:00 | n |
| 147990 | IIEES SC | THKV | Z | 78 | 1 | 2019-11-10 03:37:46 | 2019-11-10 08:07:00 | n |
| 147991 | IIEES SC | ASAO | Z | 21 | 1 | 2019-11-10 03:38:05 | 2019-11-10 08:07:00 | n |
| 147992 | IIEES SC | GHVR | Z | 45 | 1 | 2019-11-10 03:38:21 | 2019-11-10 08:07:00 | n |
| 147993 | IIEES SC | KHMZ | Z | 9.8 | 1 | 2019-11-10 03:38:03 | 2019-11-10 08:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-10 03:36:16 | 0 | y | 122 | 18 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-10 03:36:17 | 0.1 | y | 133 | 268 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-10 03:36:20 | -1.6 | y | 166 | 137 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-10 03:36:25 | -0.5 | y | 189 | 235 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-10 03:36:34 | 0.8 | y | 244 | 227 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-10 03:36:40 | 0.3 | y | 289 | 182 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-10 03:36:49 | 0.8 | y | 366 | 123 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-11-10 03:36:55 | -0.3 | y | 422 | 147 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-11-10 03:37:05 | 0 | y | 500 | 136 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-10 03:37:06 | 1.1 | y | 500 | 153 | |||
